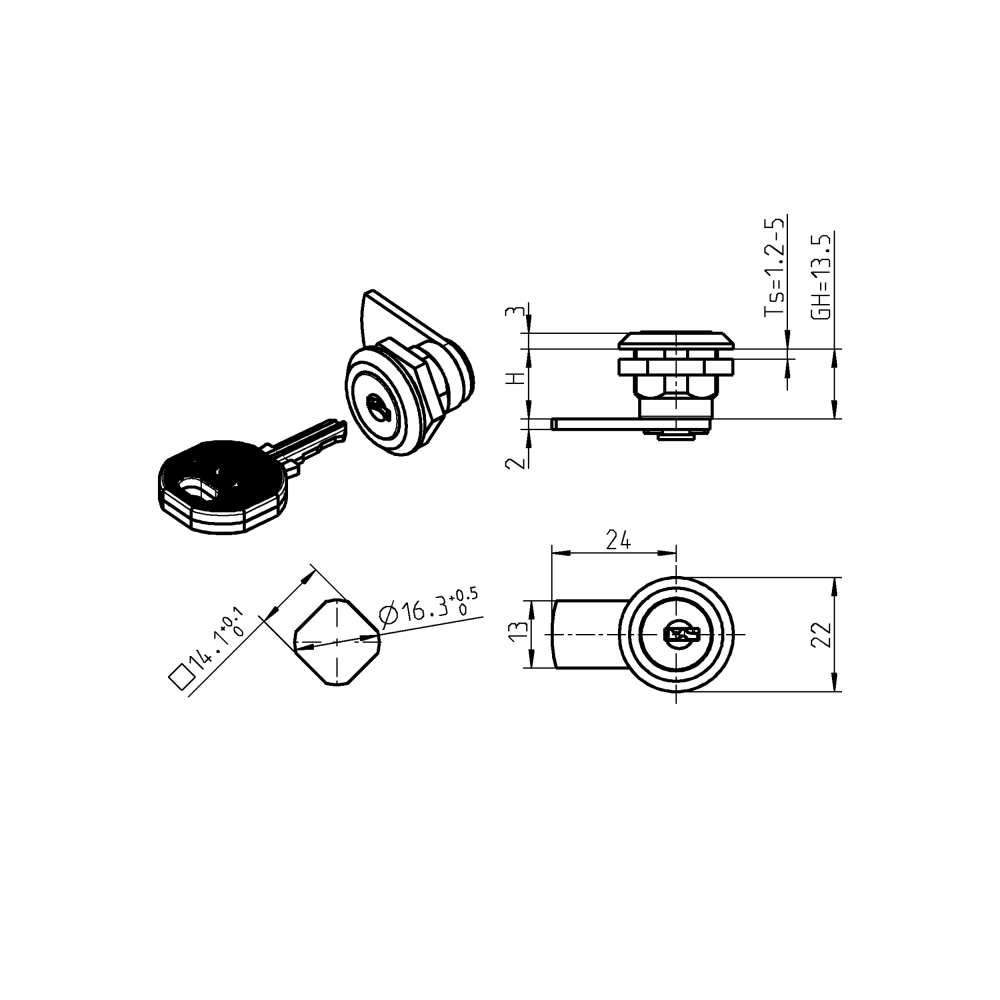

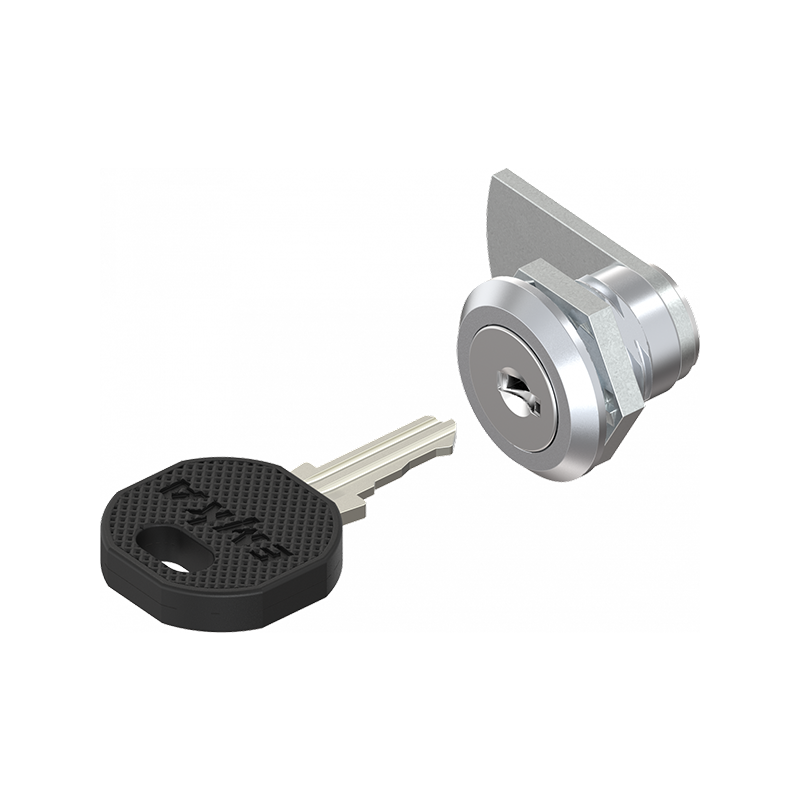

Cam lock, D=22mm, L=24mm, GH=13,5mm, die-cast zinc, plate thickness=1,2-5 mm
MT101894
Cam lock manufactured in die-cast zinc. The length is 24 mm, the diameter is 22 mm and the housing height is 13,5 mm. The lock is of the type of cylinder lock. Including one key. Surface treatment of the earthnut is: Electro zinc plated. We offer many different locks, so please contact us if you cannot fint one that meet your requirements.
Locking
Keyed alike EK2233X
Material type
Die-cast zinc
Mounting type
Earthnut
Nut material
Steel
Surface finish
Chrome plated
Type
Cylinder lock
Diameter in mm
22
H-measure
13.5
Length in mm
24
Housing height in mm - GH
13.5
Plate thickness min.
1.2
Plate thickness max.
5
Long description
Cam lock manufactured in die-cast zinc. The length is 24 mm, the diameter is 22 mm and the housing height is 13,5 mm. The lock is of the type of cylinder lock. Including one key. Surface treatment of the earthnut is: Electro zinc plated. We offer many different locks, so please contact us if you cannot fint one that meet your requirements.
