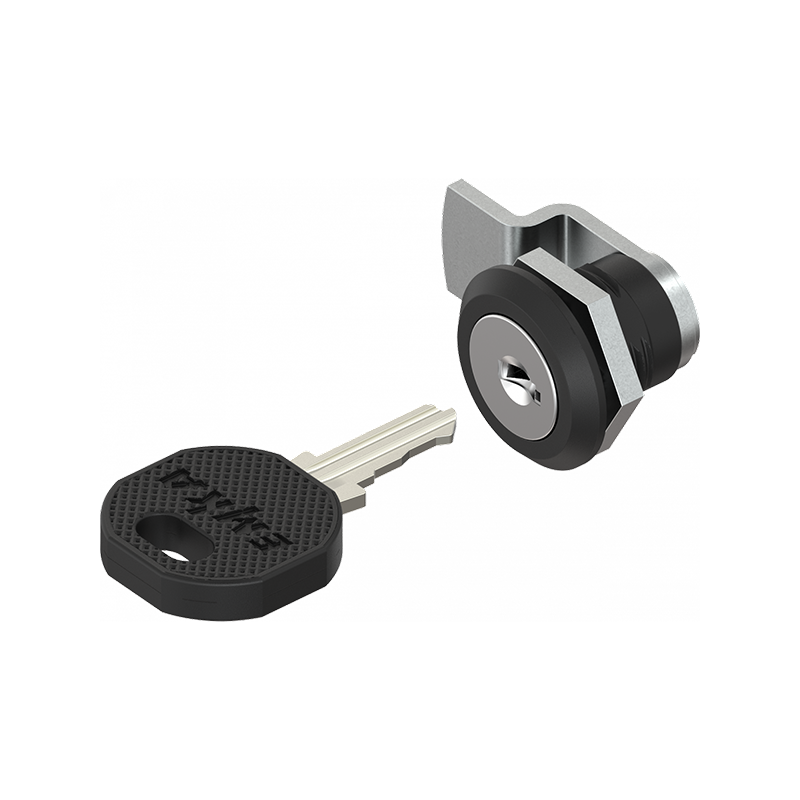

Cam lock, D=22mm, L=24mm, GH=13,5mm, glass fiber reinforced polyamide, plate thickness=1,2-5 mm
MT101930
Cam lock manufactured in glass fiber reinforced polyamide. The length is 24 mm, the diameter is 22 mm and the housing height is 13,5 mm. The lock is of the type of cylinder lock. Including one key. Surface treatment of the nut is: Electro zinc plated. We offer many different locks, so please contact us if you cannot fint one that meet your requirements.
Locking
Keyed different
Indsatsmateriale
Die-cast zinc
Material type
Glass fiber reinforced polyamide
Mounting type
Nut
Nut material
Steel
Type
Cylinder lock
Diameter in mm
22
H-measure
7.5
Length i mm
24
Housing height in mm - GH
13.5
Plate thickness, min.
1.2
Plate thickness, max.
5
Long description
Cam lock manufactured in glass fiber reinforced polyamide. The length is 24 mm, the diameter is 22 mm and the housing height is 13,5 mm. The lock is of the type of cylinder lock. Including one key. Surface treatment of the nut is: Electro zinc plated. We offer many different locks, so please contact us if you cannot fint one that meet your requirements.
