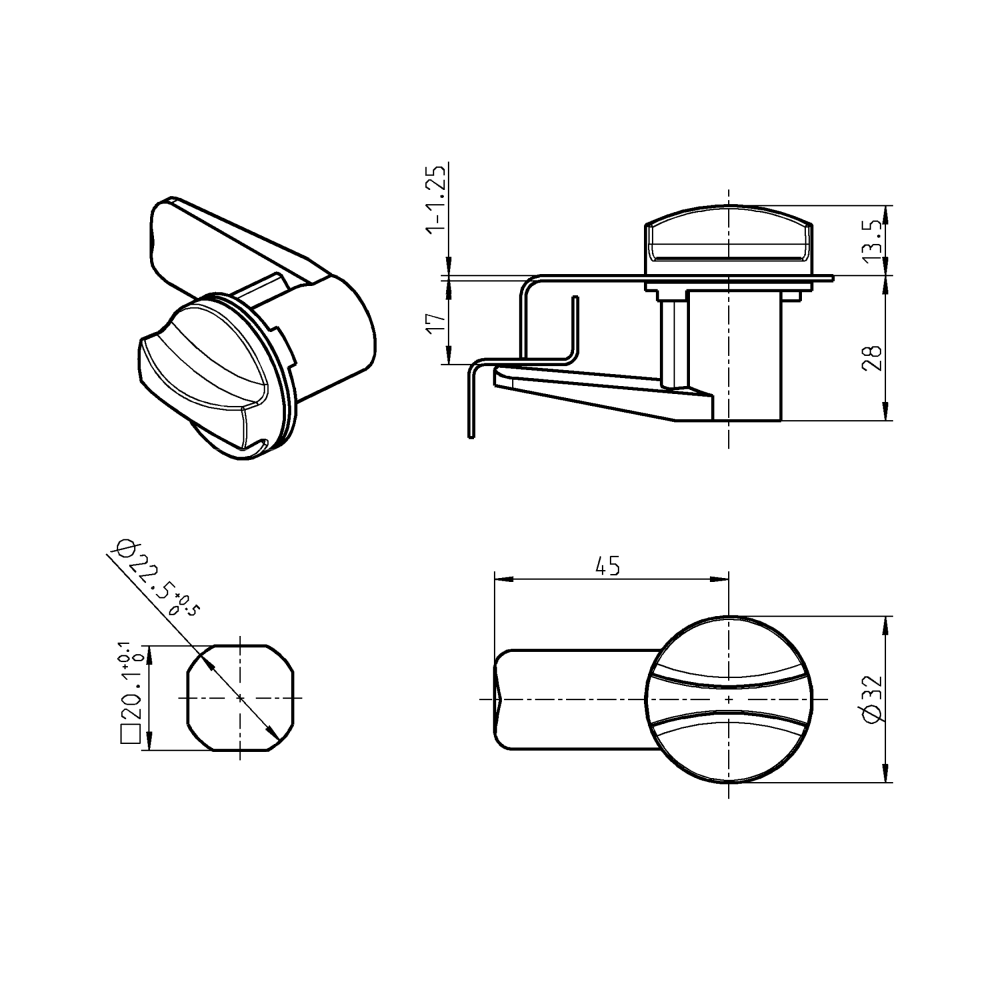

Cam lock, D=32mm, L=45mm, GH=28mm, glass fiber reinforced polyamide, plate thickness=1-1,25 mm
MT101002
Cam lock manufactured in glass fiber reinforced polyamide. The length is 45 mm, the diameter is 32 mm and the housing height is 28 mm. The lock is of the type of wing handle. We offer many different locks, so please contact us if you cannot fint one that meet your requirements.
Material type
Glass fiber reinforced polyamide
Mounting type
Snap-in
Type
Wing handle
Diameter in mm
32
H-measure
17
Length in mm
45
Housing height in mm - GH
28
Plate thickness min.
1
Plate thickness max.
1.25
Long description
Cam lock manufactured in glass fiber reinforced polyamide. The length is 45 mm, the diameter is 32 mm and the housing height is 28 mm. The lock is of the type of wing handle. We offer many different locks, so please contact us if you cannot fint one that meet your requirements.
