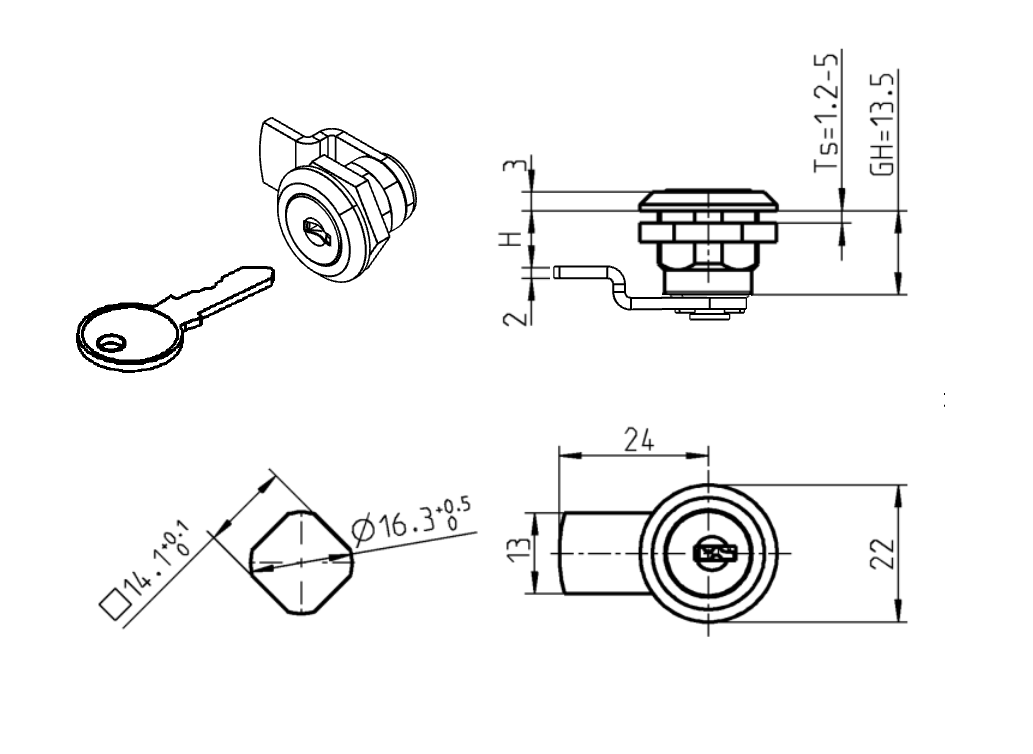

Cam locks, D=22mm, L=24mm, GH=13,5mm, glass fiber reinforced polyamide, plate thickness=1,2-5 mm
MT101926
Cam lock manufactured in glass fiber reinforced polyamide. The length is 24 mm, the diameter is 22 mm and the housing height is 13,5 mm. The lock is of the type cylinder lock.
Including one key.
Surface treatment of the nut is: Electro zinc plated.
We offer many different locks, so please contact us if you cannot fint one that meet your requirements.
Including one key.
Surface treatment of the nut is: Electro zinc plated.
We offer many different locks, so please contact us if you cannot fint one that meet your requirements.
Locking
Keyed alike EK2233X
Insert material
Die-cast zinc
Material type
Glass fiber reinforced polyamide
Mounting type
Nut
Nut material
Steel
Type
Cylinder lock
Diameter in mm
22
H-measure
7.5
Height in mm
0
Length in mm
24
Housing height in mm - GH
13.5
Plate thickness min.
1.2
Plate thickness max.
5
Long description
Cam lock manufactured in glass fiber reinforced polyamide. The length is 24 mm, the diameter is 22 mm and the housing height is 13,5 mm. The lock is of the type cylinder lock.
Including one key.
Surface treatment of the nut is: Electro zinc plated.
We offer many different locks, so please contact us if you cannot fint one that meet your requirements.
Including one key.
Surface treatment of the nut is: Electro zinc plated.
We offer many different locks, so please contact us if you cannot fint one that meet your requirements.
