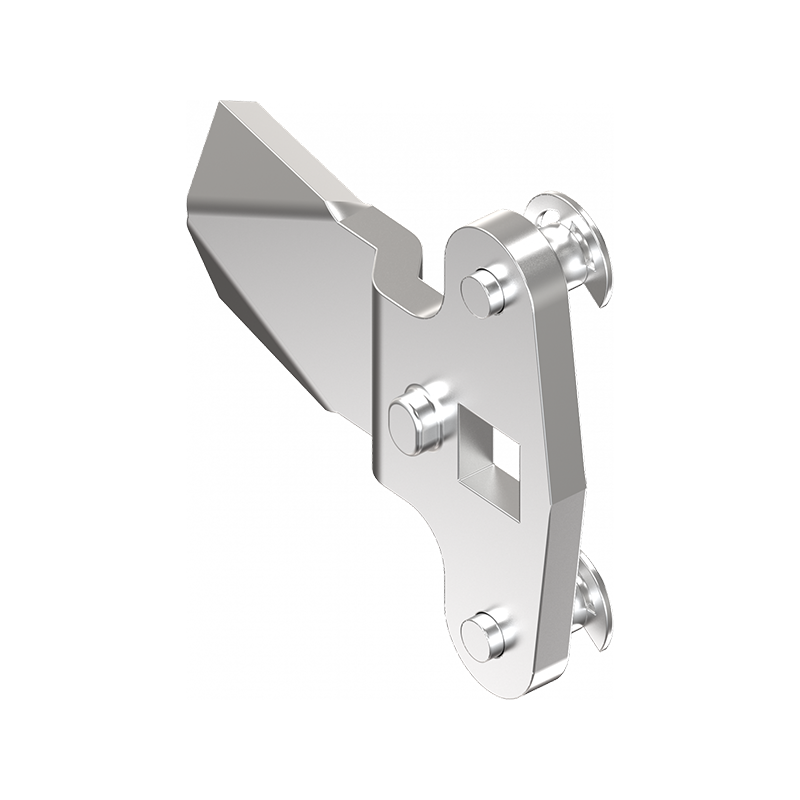

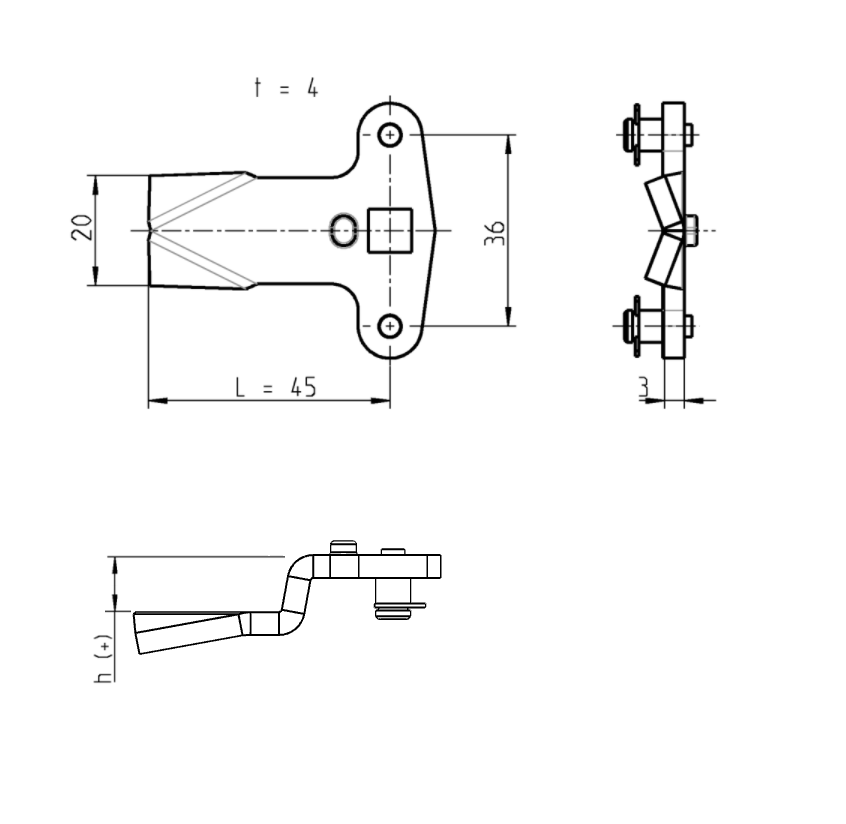

Cam, rod control, stainless steel, L=45, B=20, offset height=4 mm.
MT100775
Cam of the type rod control manufactured in stainless steel, a length of 45mm, a width of 20mm and a offset height of 4mm. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
Stopper
Yes
Components
Cam
Material
AISI 304
Material type
Stainless steel
Mounting type
Screw mounting
Type
Rod control
Length in mm
45
Housing height in mm - GH
0
Offset height in mm
4
Plate thickness min.
0
Plate thickness max.
0
Thickness in mm
4
Long description
Cam of the type rod control manufactured in stainless steel, a length of 45mm, a width of 20mm and a offset height of 4mm. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
