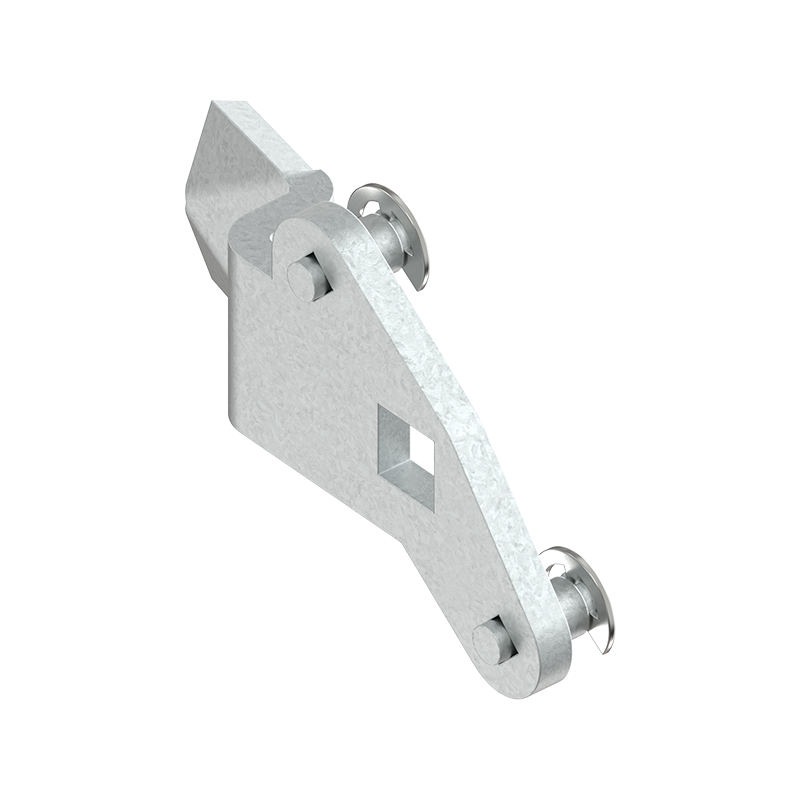

Cam, rod control, steel, L=45, B=20, offset height=11 mm
MT101301

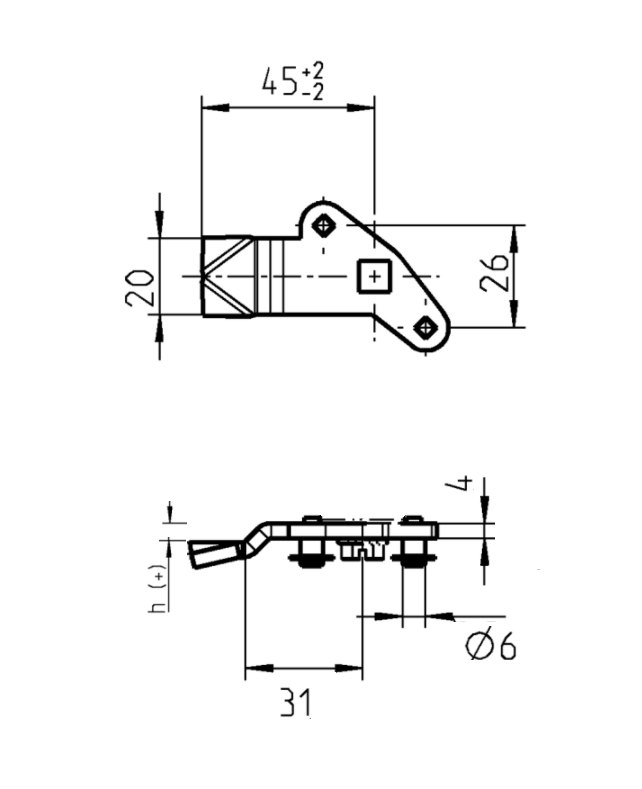

Cam of the type rod control manufactured in steelmm, a length of 45mm, a width of 20mm and an offset height of 11mm. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
Stopper
No
Components
Cam
Material type
Steel
Mounting type
Screw mounting
Surface finish
Electro zinc plated
Type
Rod control
Version
Right
Diameter in mm
0
Height in mm
0
Length in mm
45
Offset height in mm
11
Plate thickness min.
0
Plate thickness max.
0
Thickness in mm
4
Long description
Cam of the type rod control manufactured in steelmm, a length of 45mm, a width of 20mm and an offset height of 11mm. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
