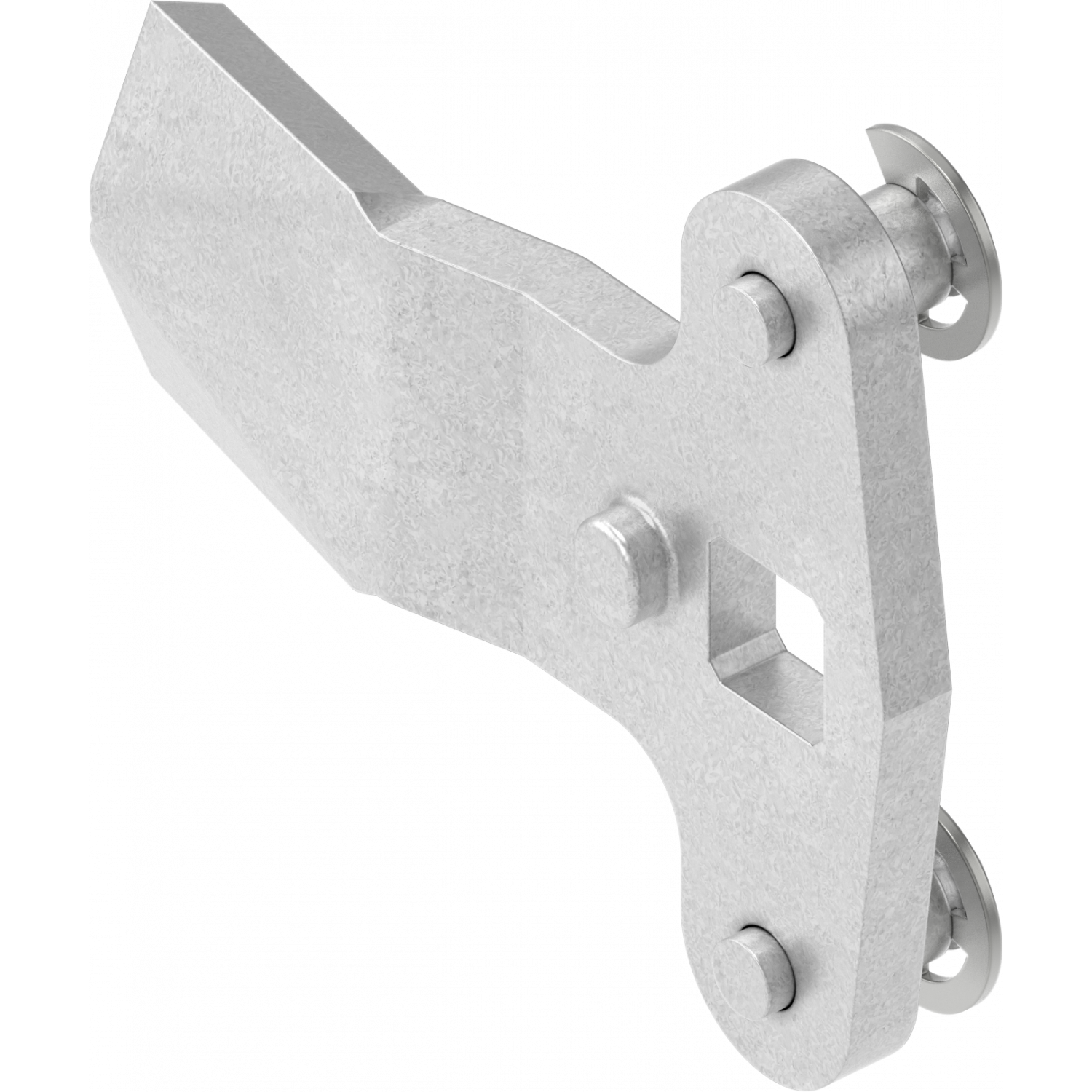

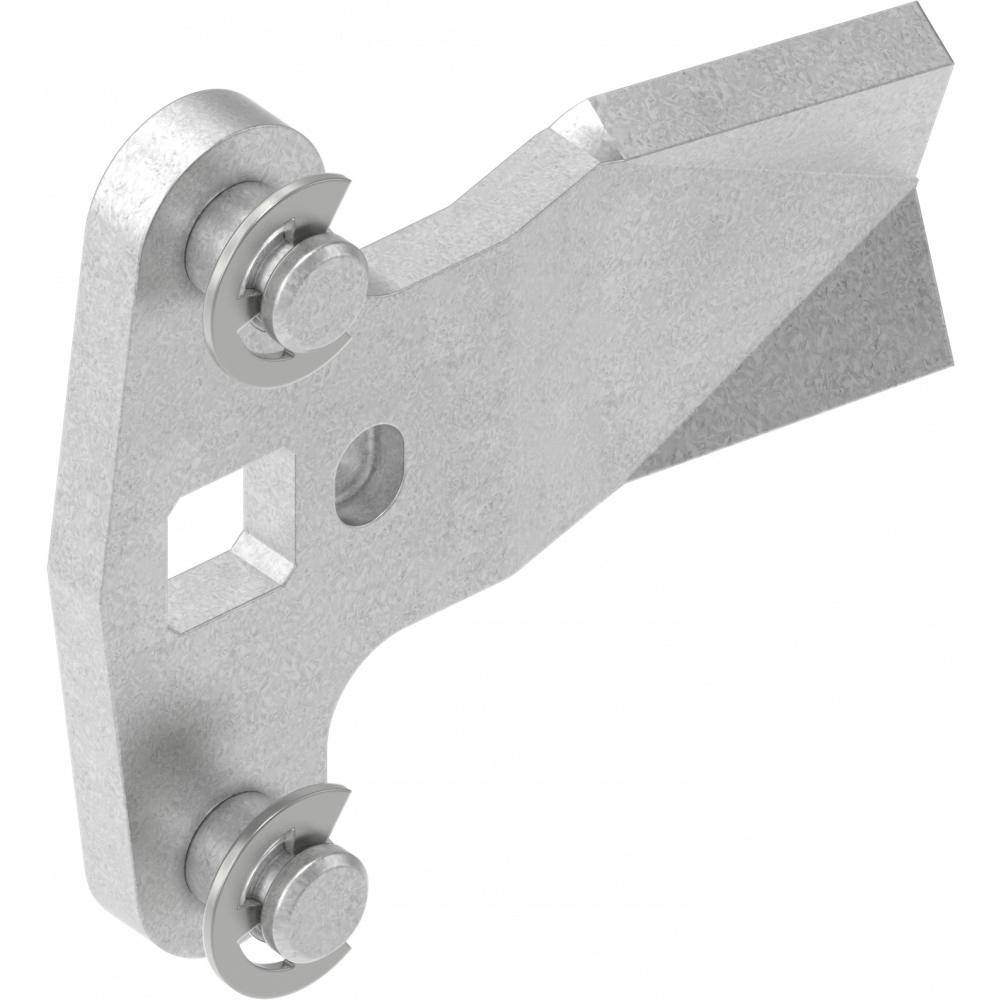

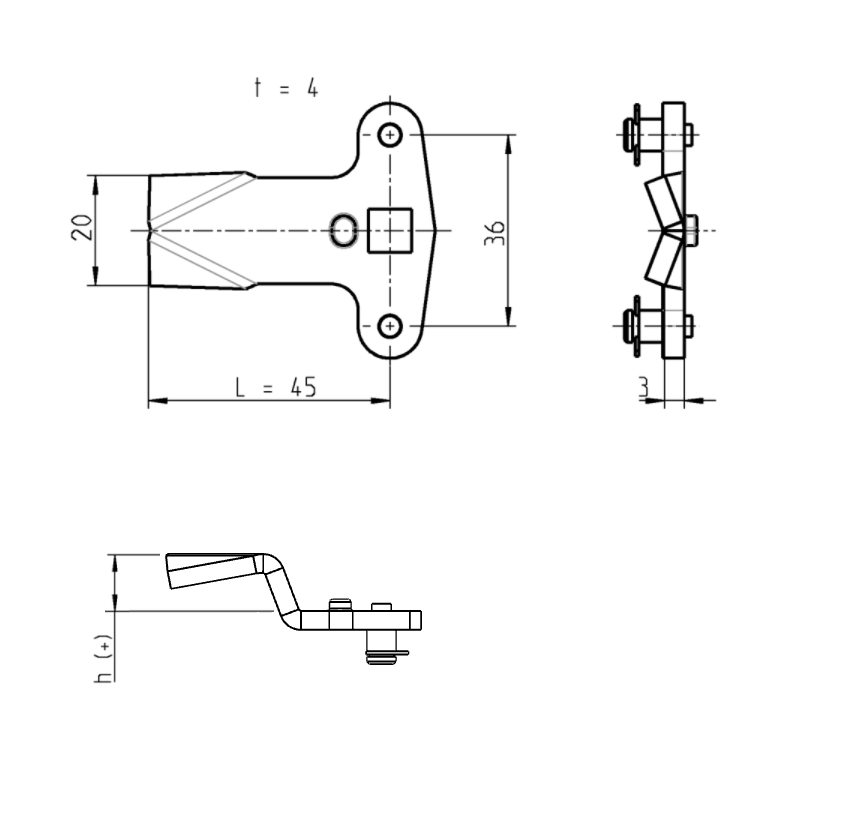

Cam, rod control, steel, L=45, B=20, offset height=-2 mm
MT100901
Cam of the type rod control manufactured in steel, with a length of 45mm, a width of 20mm and an offset height of -2mm. With 2 circlips. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
Stopper
Yes
Components
Cam
Material type
Steel
Mounting type
Screw mounting
Surface finish
Electro zinc plated
Type
Rod control
Length in mm
45
Offset height in mm
-2
Thickness in mm
4
Long description
Cam of the type rod control manufactured in steel, with a length of 45mm, a width of 20mm and an offset height of -2mm. With 2 circlips. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
