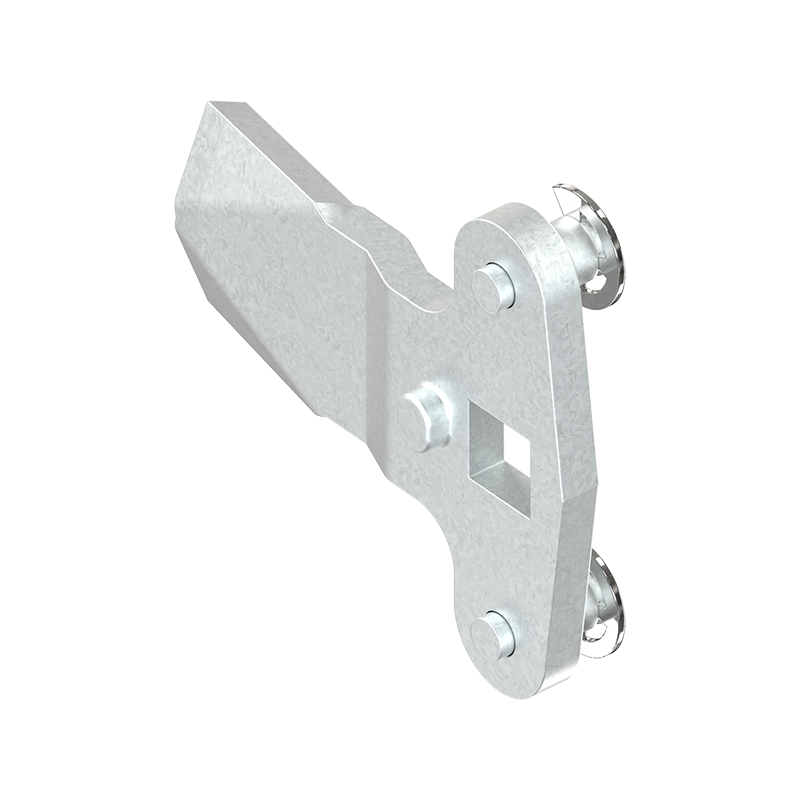

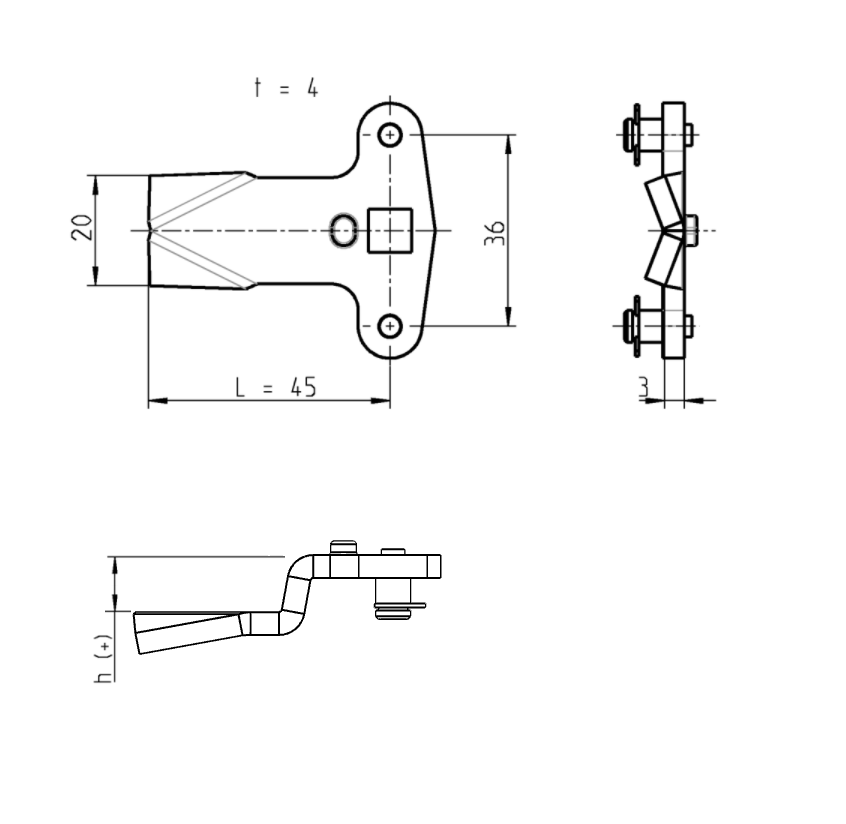

Cam, rod control, steel, L=45, B=20, offset height=4 mm
MT100952
Cam of the type rod control manufactured in steelmm, a length of 45mm, a width of 20mm and an offset height of 4mm. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
Stopper
Yes
Components
Cam
Material type
Steel
Mounting type
Screw mounting
Surface finish
Electro zinc plated
Type
Rod control
Diameter in mm
0
Height in mm
0
Length i mm
45
Offset height in mm
4
Plate thickness, min.
0
Plate thickness, max.
0
Thickness in mm
4
Long description
Cam of the type rod control manufactured in steelmm, a length of 45mm, a width of 20mm and an offset height of 4mm. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
