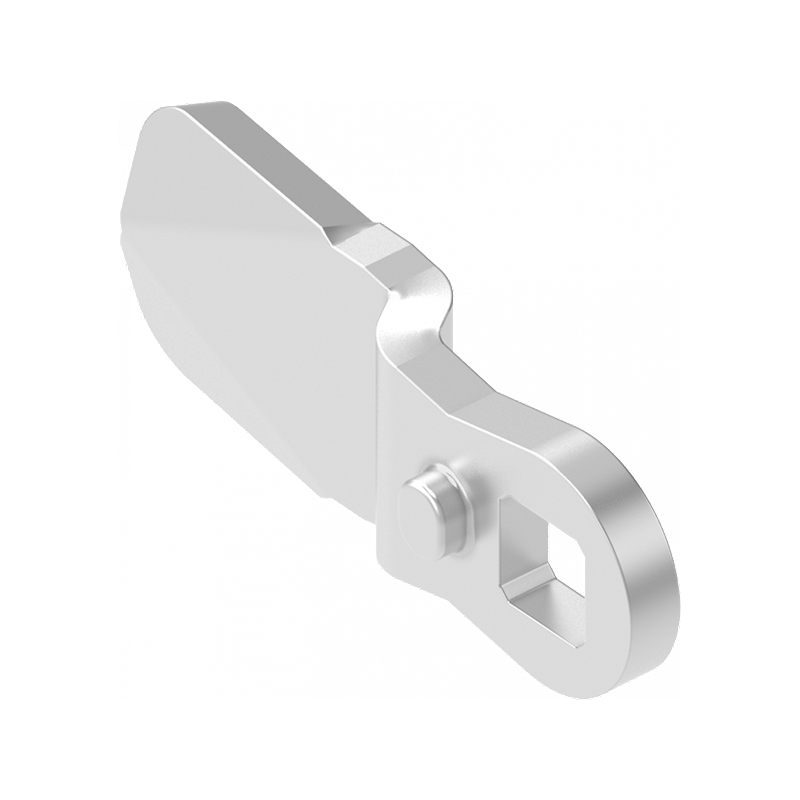

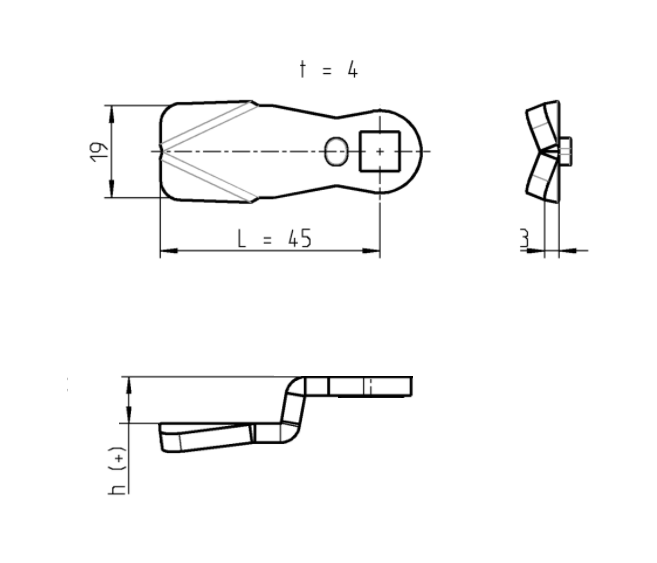

Cam, standard, acid proof stainless steel, L=45, B=19, offset height=4 mm
MT111613
Cam of the type standard manufactured in acid proof stainless steel, a length of 45mm, a width of 19mm and an offset height of 4mm. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
Stopper
Yes
Components
Cam
Material
AISI 316
Material type
Acid proof Stainless Steel
Mounting type
Screw mounting
Type
Standard
Length i mm
45
Housing height in mm - GH
0
Offset height in mm
4
Plate thickness, min.
0
Plate thickness, max.
0
Thickness in mm
4
Long description
Cam of the type standard manufactured in acid proof stainless steel, a length of 45mm, a width of 19mm and an offset height of 4mm. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
