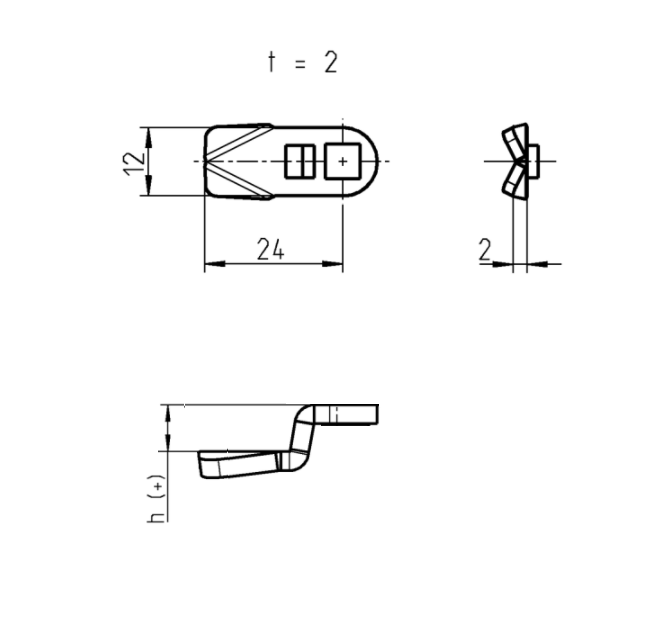

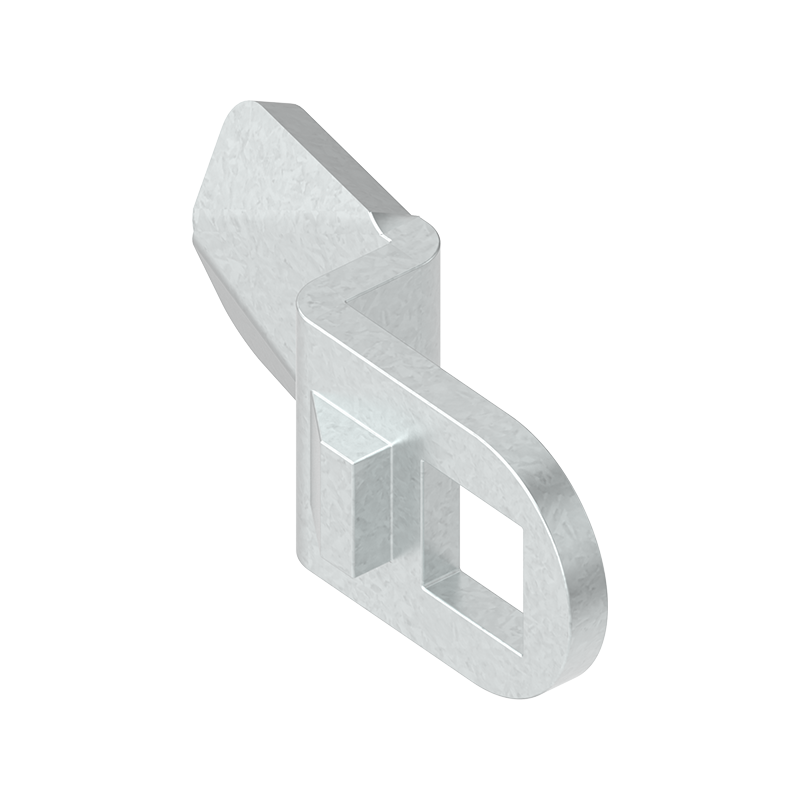

Cam, standard, steel, L=24, B=12, offset height=6 mm
MT101794
Cam of the type standard manufactured in steelmm, a length of 24mm, a width of 12mm and an offset height of 6mm. Only suitable to use with components from 1022 series. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
Stopper
Yes
Components
Cam
Material type
Steel
Mounting type
Screw mounting
Surface finish
Electro zinc plated
Series
1022
Type
Standard
Diameter in mm
0
Height in mm
0
Length i mm
24
Offset height in mm
6
Plate thickness, min.
0
Plate thickness, max.
0
Thickness in mm
2
Long description
Cam of the type standard manufactured in steelmm, a length of 24mm, a width of 12mm and an offset height of 6mm. Only suitable to use with components from 1022 series. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
