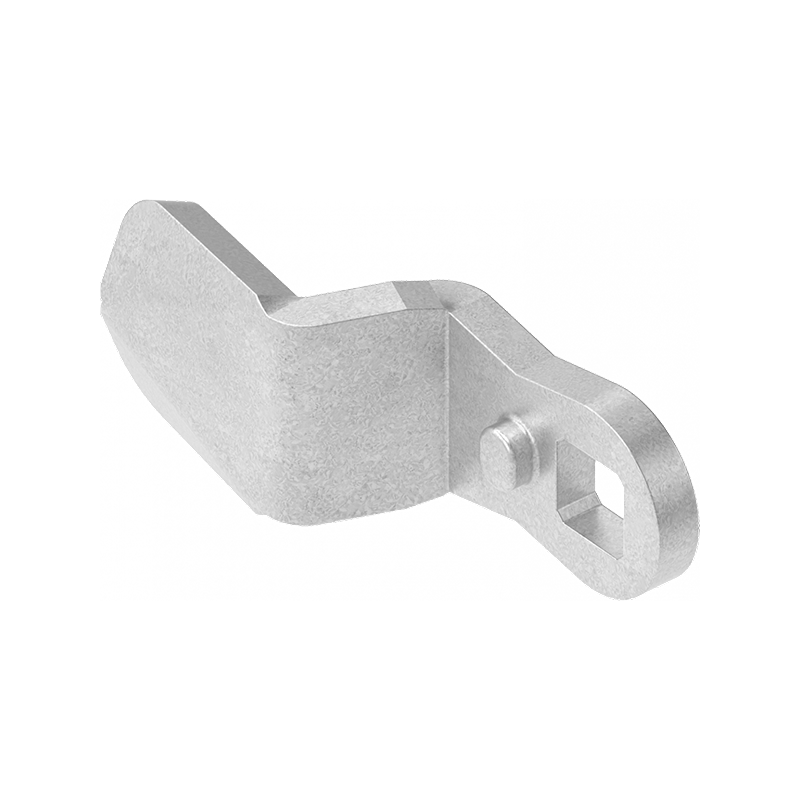

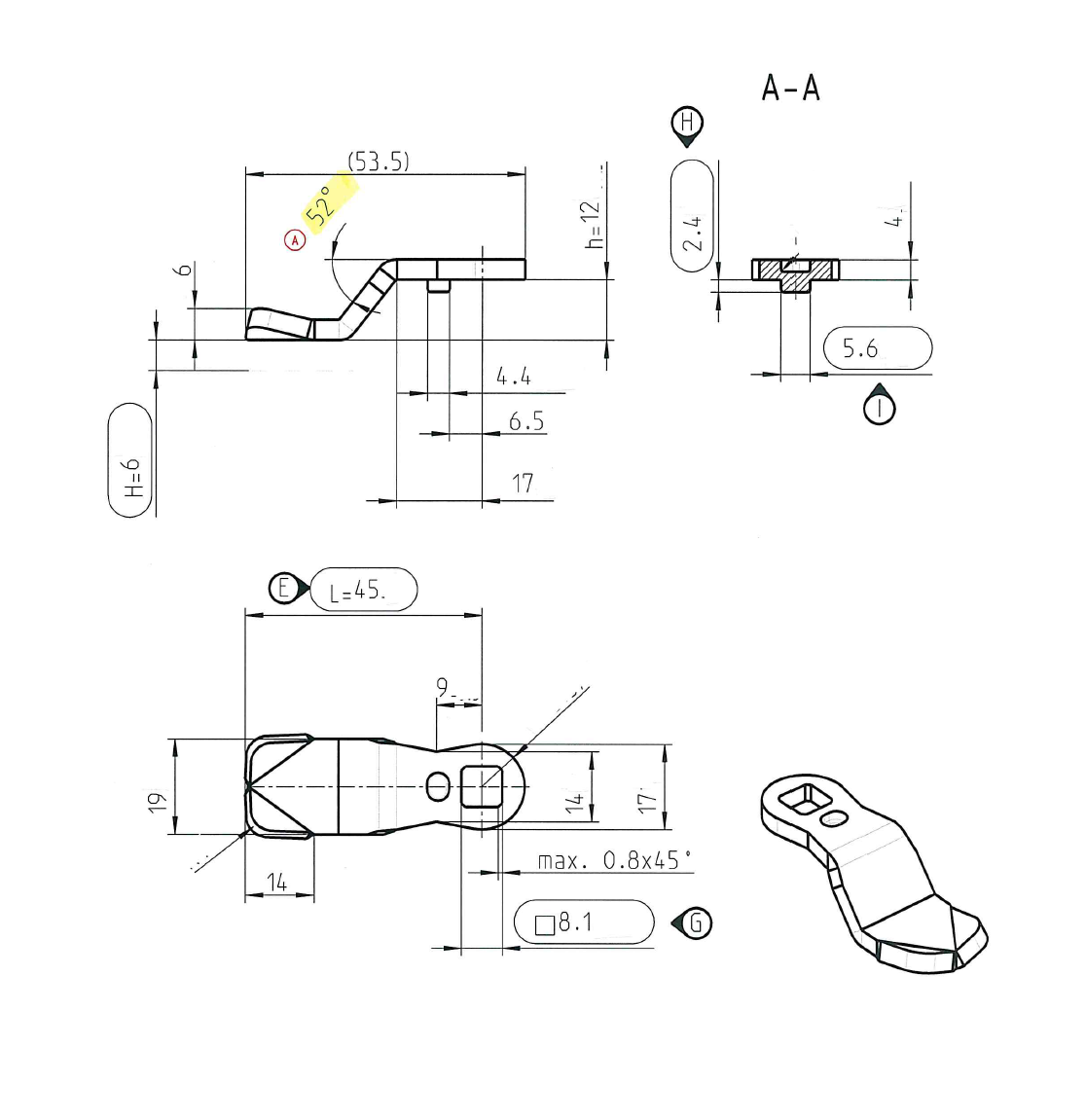

Cam, standard, steel, L=45, B=19, offset height=-12 mm.
MT100554
Cam of the type standard manufactured in steel, a length of 45mm, a width of 19mm and a offset height of -12mm. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
Stopper
Yes
Components
Cam
Material type
Steel
Mounting type
Screw mounting
Surface finish
Electro zinc plated
Type
Standard
Length i mm
45
Housing height in mm - GH
0
Offset height in mm
-12
Plate thickness, min.
0
Plate thickness, max.
0
Thickness in mm
4
Long description
Cam of the type standard manufactured in steel, a length of 45mm, a width of 19mm and a offset height of -12mm. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
