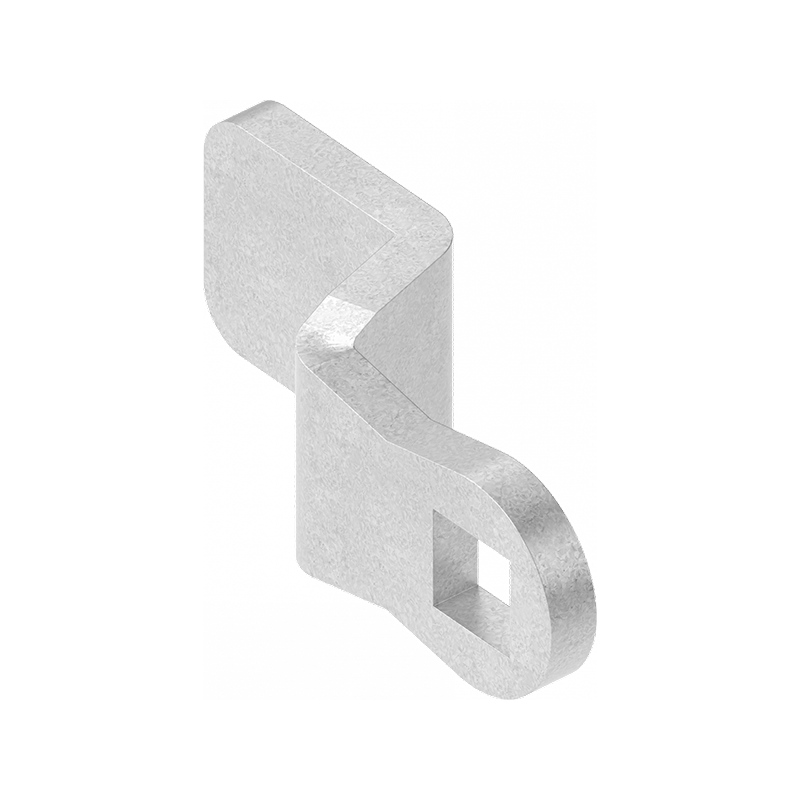

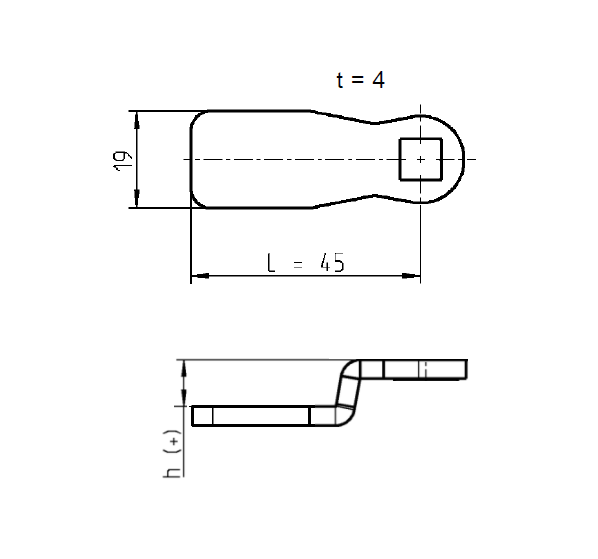

Cam, standard, steel, L=45, B=19, offset height=14 mm
MT100639
Cam of the type standard manufactured in steel, a length of 45mm, a width of 19mm and an offset height of 14mm. For use with compression latches. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
Stopper
No
Components
Cam
Material type
Steel
Mounting type
Screw mounting
Surface finish
Electro zinc plated
Type
Standard
Length in mm
45
Housing height in mm - GH
0
Offset height in mm
14
Plate thickness min.
0
Plate thickness max.
0
Thickness in mm
4
Long description
Cam of the type standard manufactured in steel, a length of 45mm, a width of 19mm and an offset height of 14mm. For use with compression latches. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
