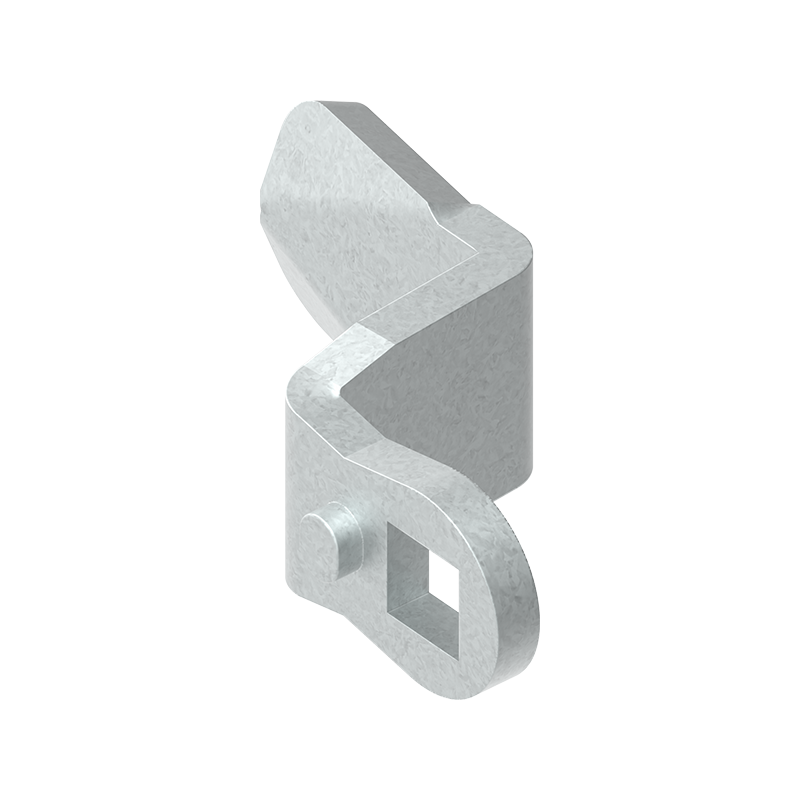

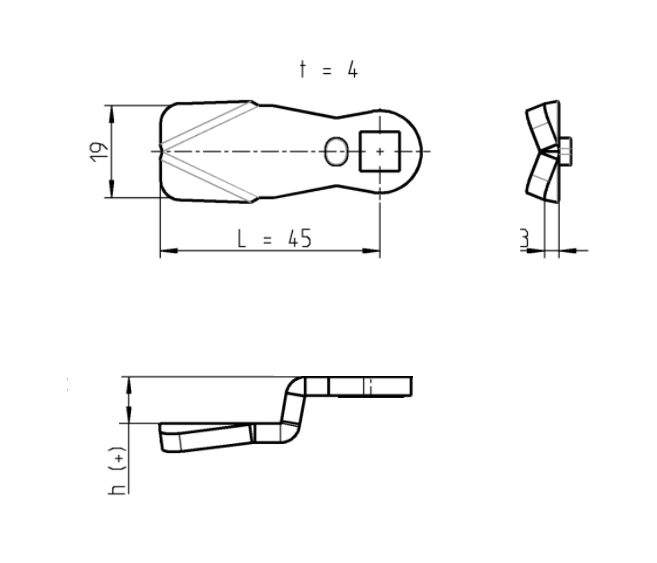

Cam, standard, steel, L=45, B=19, offset height=22 mm
MT100560
Cam of the type standard manufactured in steelmm, a length of 45mm, a width of 19mm and an offset height of 22mm. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
Stopper
Yes
Components
Cam
Material type
Steel
Mounting type
Screw mounting
Surface finish
Electro zinc plated
Type
Standard
Diameter in mm
0
Height in mm
0
Length in mm
45
Offset height in mm
22
Plate thickness min.
0
Plate thickness max.
0
Thickness in mm
4
Long description
Cam of the type standard manufactured in steelmm, a length of 45mm, a width of 19mm and an offset height of 22mm. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
