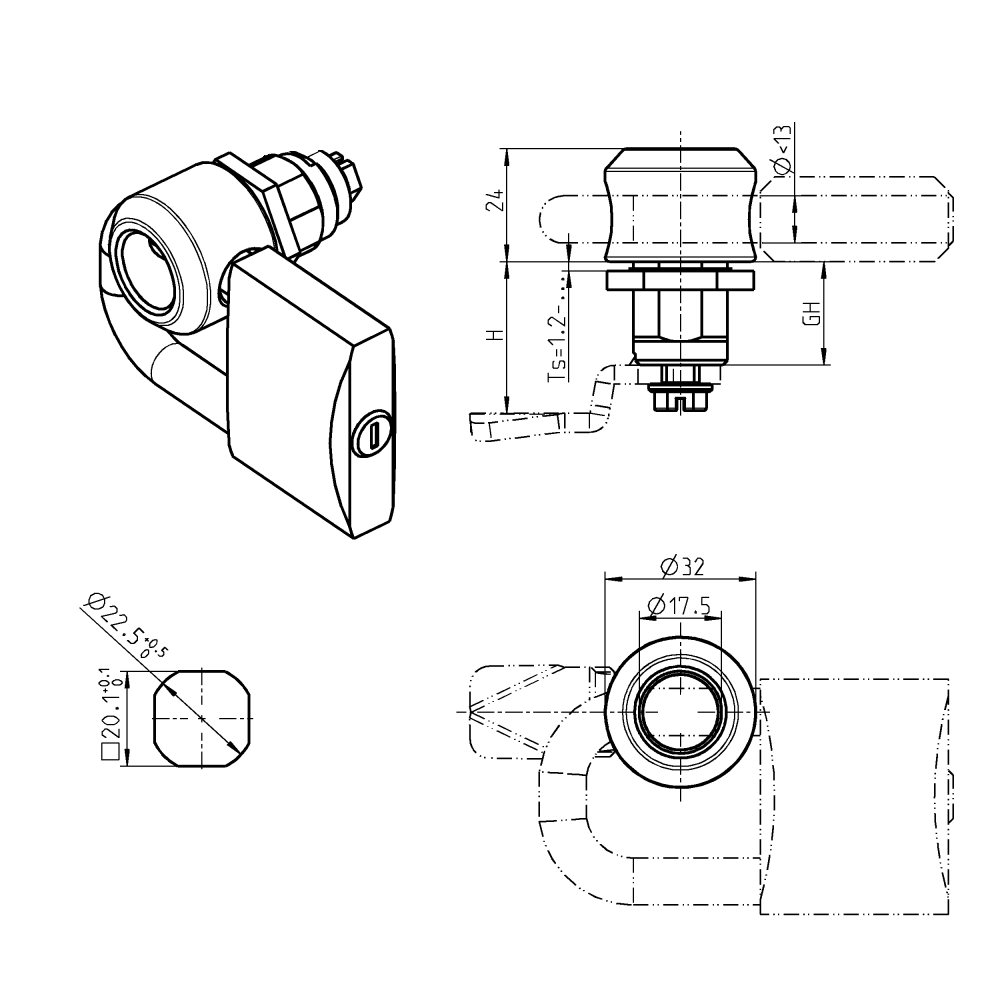

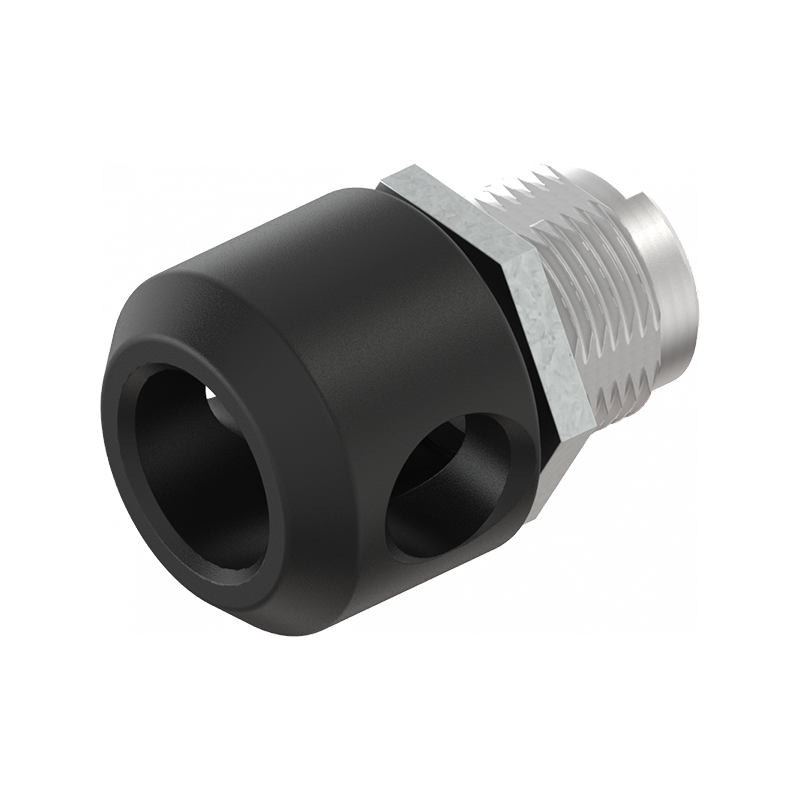

Housing, padlock, die-cast zinc, D=32, GH=22, plate thickness=1,2-13 mm
MT101094
Housing of the type padlock manufactured in die-cast zinc with a diameter of 32mm and a housing height of 22mm. The housing can be mounted through a plate thickness of 1,2-13mm. The surface treatment of nut is: Electro zinc plated. Key for insert must be of a length of at least 70 mm. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
Shape
Circular head
Components
Housing
Material type
Die-cast zinc
Mounting type
Nut
Nut material
Steel
Surface finish
Black powder coated
Type
Padlock
Diameter in mm
32
Length in mm
0
Housing height in mm - GH
22
Offset height in mm
0
Plate thickness min.
1.2
Plate thickness max.
13
Thickness in mm
0
Long description
Housing of the type padlock manufactured in die-cast zinc with a diameter of 32mm and a housing height of 22mm. The housing can be mounted through a plate thickness of 1,2-13mm. The surface treatment of nut is: Electro zinc plated. Key for insert must be of a length of at least 70 mm. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
