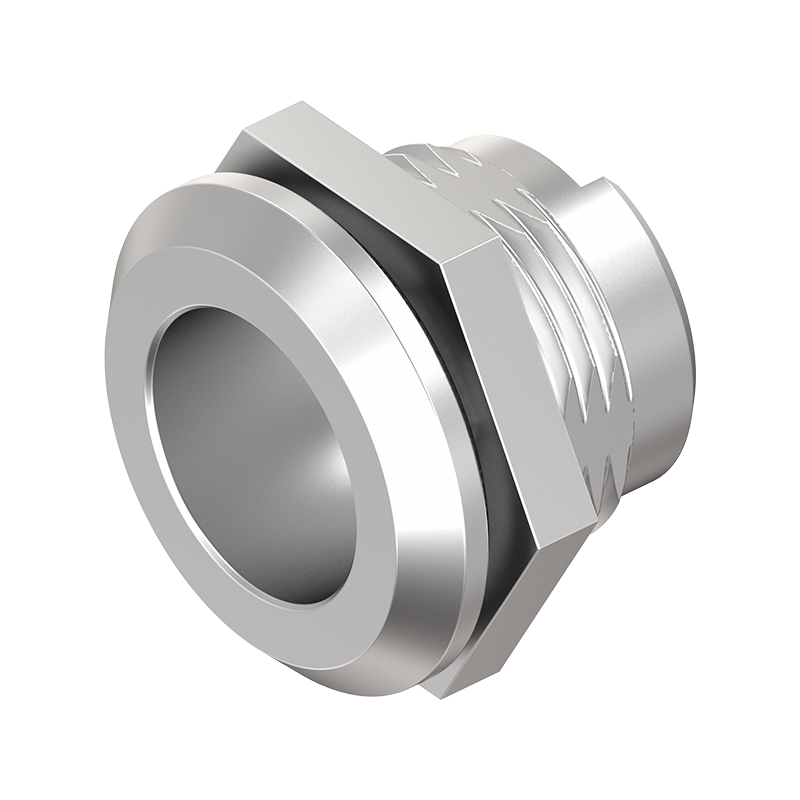

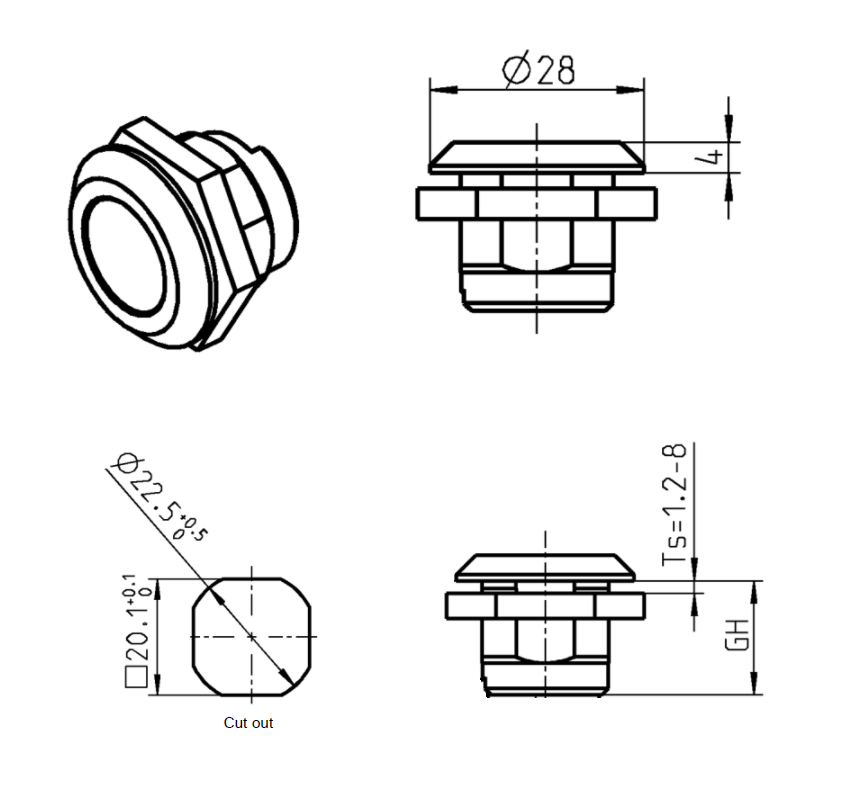

Housing, standard, acid proof stainless steel, D=28, GH=18, plate thickness=1,2-8 mm
MT101136
Housing of the type standard manufactured in acid proof stainless steel with a diameter of 28 mm and a housing height of 18mm. The housing kan be mounted through a plate thickness of 1,2-8mm. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
Shape
Circular head
Components
Housing
Material
AISI 316
Material type
Acid proof Stainless Steel
Mounting type
Nut
Nut material
Stainless steel
Sealing
Foamed
Type
Standard
IP Code
IP65
Diameter in mm
28
Height in mm
0
Length in mm
0
Housing height in mm - GH
18
Offset height in mm
0
Plate thickness min.
1.2
Plate thickness max.
8
Thickness in mm
0
Long description
Housing of the type standard manufactured in acid proof stainless steel with a diameter of 28 mm and a housing height of 18mm. The housing kan be mounted through a plate thickness of 1,2-8mm. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
