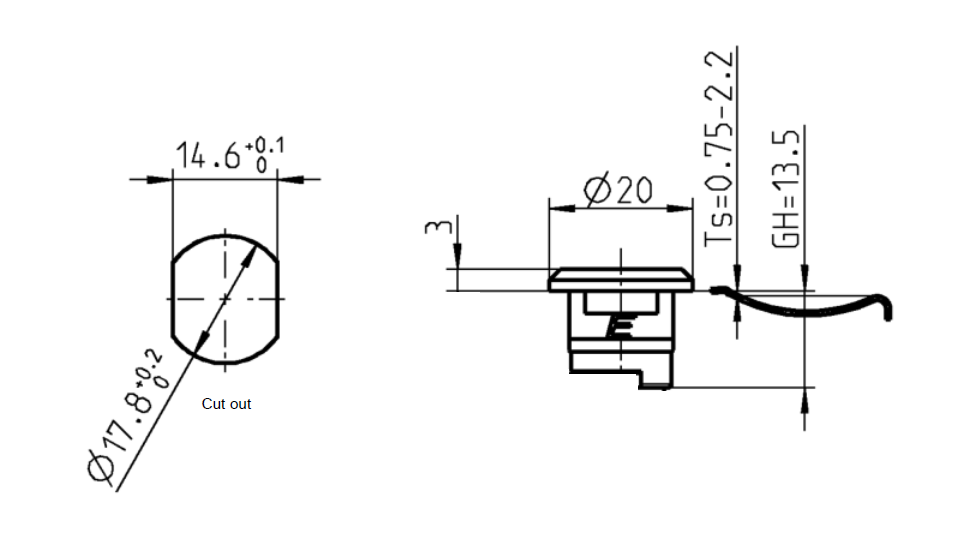

Housing, standard, die-cast zinc, D=20, GH=13,5, plate thickness=0,75-2,2 mm
MT101938

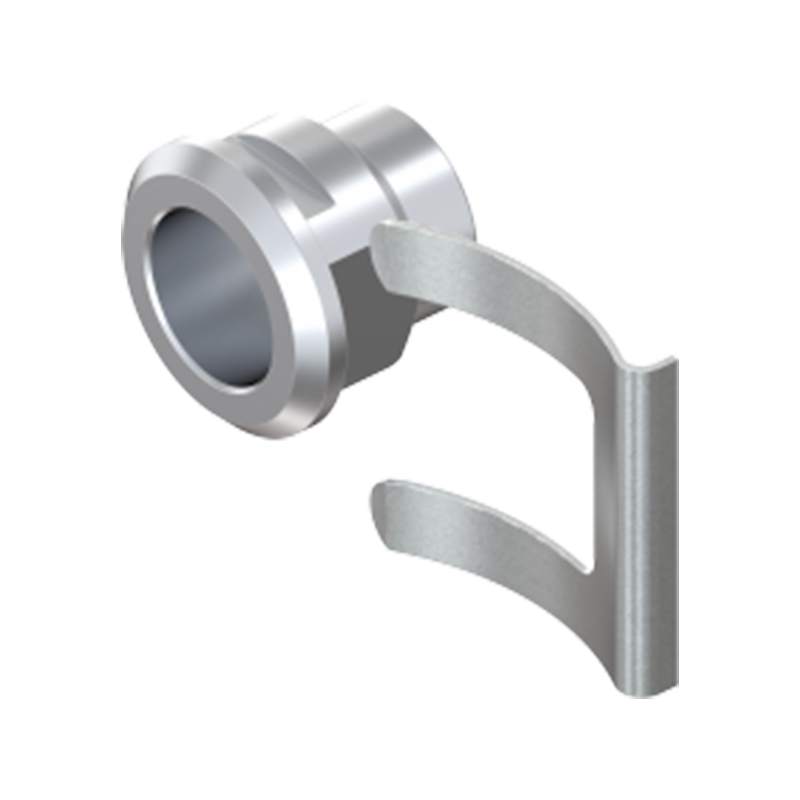

Housing of the type standard manufactured in die-cast zinc with a diameter of 20 mm and a housing height of 13,5mm. The housing kan be mounted through a plate thickness of 0,75-2,2mm. Fixing spring material is: electro zinc plated steel. Only suitable to use with components from 1022 series. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
Shape
Circular head
Components
Housing
Material type
Die-cast zinc
Surface finish
Chrome plated
Series
1022
Type
Standard
Diameter in mm
20
Height in mm
0
Length in mm
0
Housing height in mm - GH
13.5
Offset height in mm
0
Plate thickness min.
0.75
Plate thickness max.
2.2
Thickness in mm
0
Long description
Housing of the type standard manufactured in die-cast zinc with a diameter of 20 mm and a housing height of 13,5mm. The housing kan be mounted through a plate thickness of 0,75-2,2mm. Fixing spring material is: electro zinc plated steel. Only suitable to use with components from 1022 series. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
