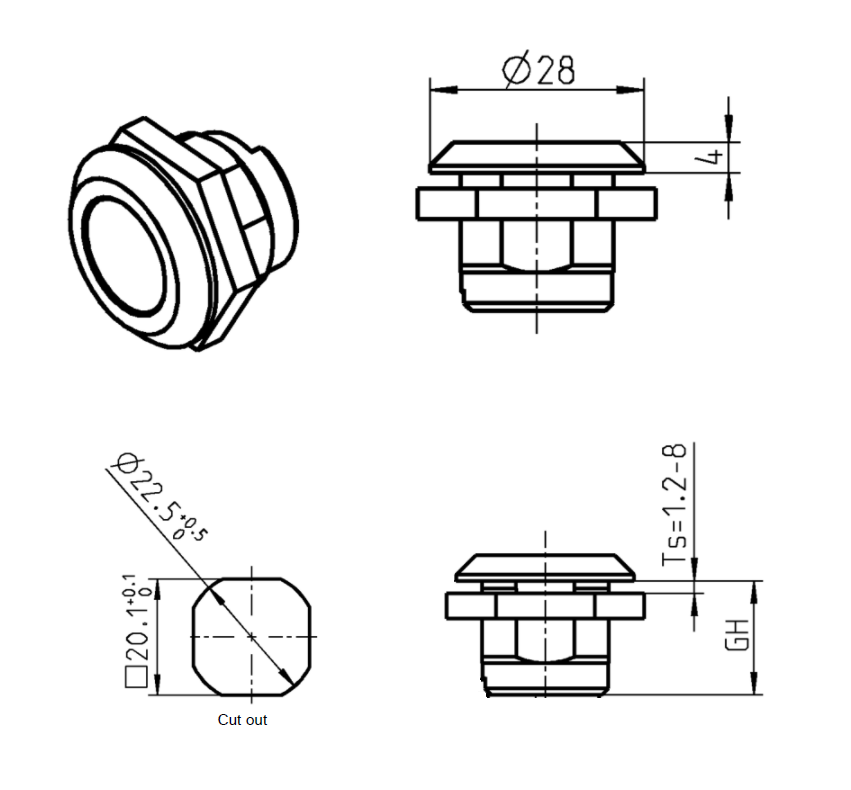

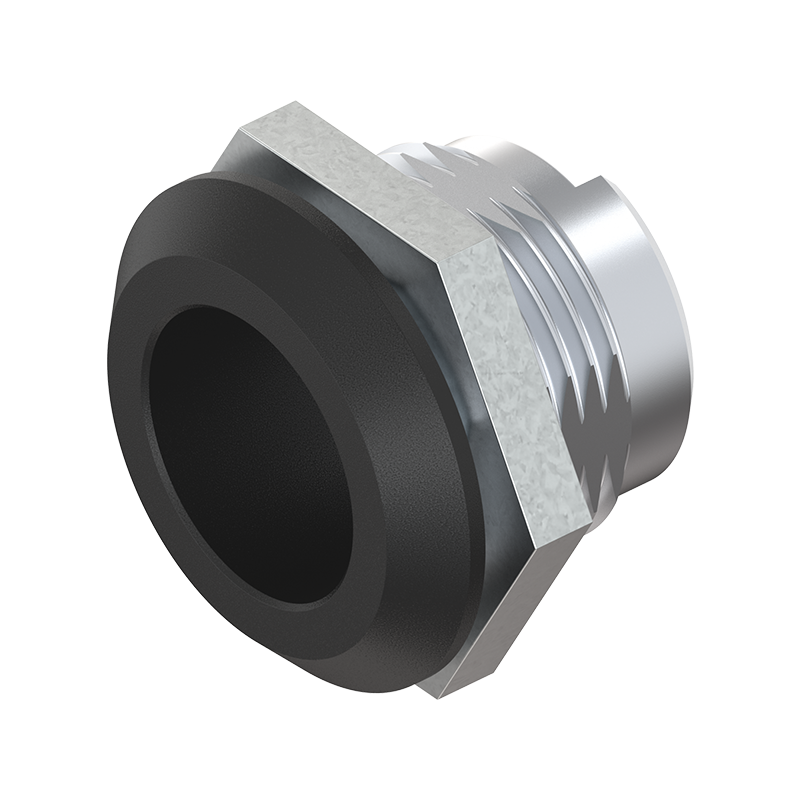

Housing, standard, die-cast zinc, D=28, GH=18, plate thickness=1,2-8 mm
MT100869
Housing of the type standard manufactured in die-cast zinc with a diameter of 28 mm and a housing height of 18mm. The housing kan be mounted through a plate thickness of 1,2-8mm. Surface treatment of the nut is: Electro zinc plated. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
Shape
Circular head
Components
Housing
Material type
Die-cast zinc
Mounting type
Nut
Nut material
Steel
Surface finish
Black powder coated
Type
Standard
Diameter in mm
28
Height in mm
0
Length in mm
0
Housing height in mm - GH
18
Offset height in mm
0
Plate thickness min.
1.2
Plate thickness max.
8
Thickness in mm
0
Long description
Housing of the type standard manufactured in die-cast zinc with a diameter of 28 mm and a housing height of 18mm. The housing kan be mounted through a plate thickness of 1,2-8mm. Surface treatment of the nut is: Electro zinc plated. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
