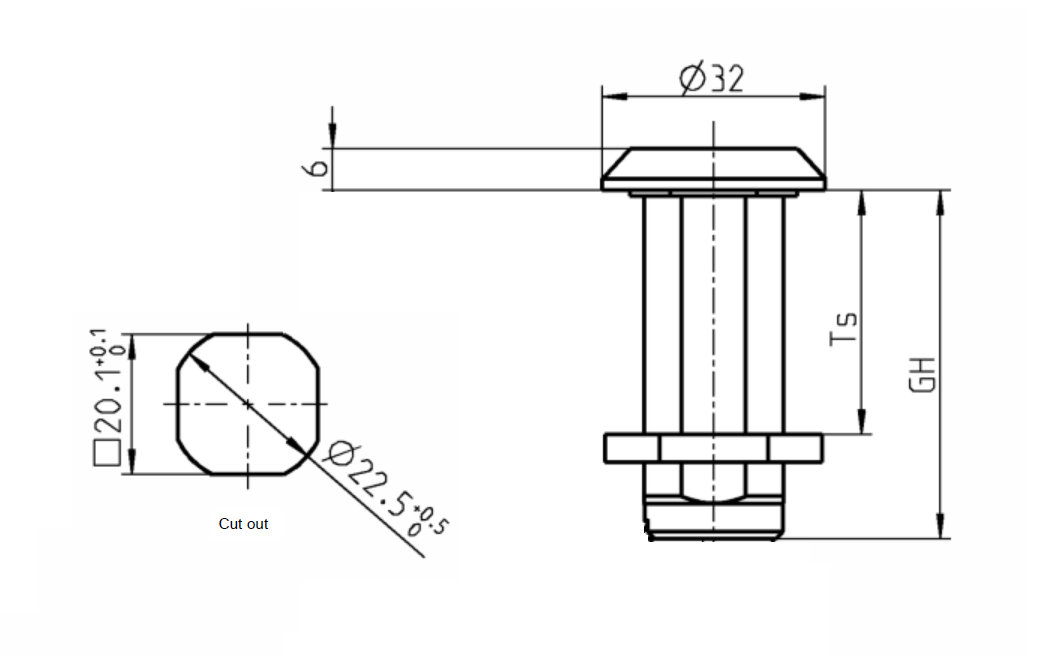

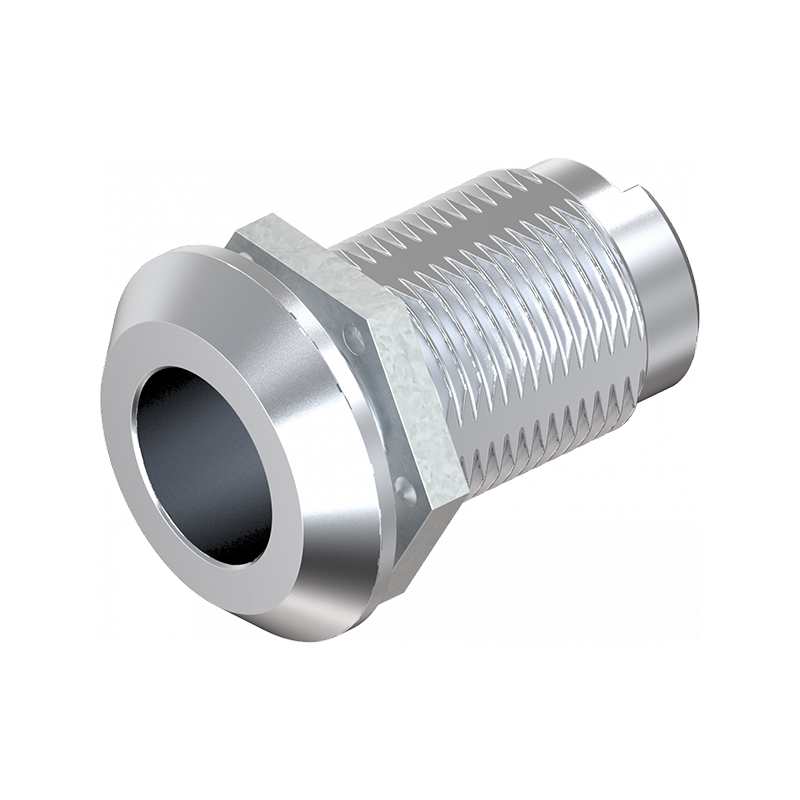

Housing, standard, die-cast zinc, D=32, GH=36, plate thickness=1,5-26 mm
MT100899
Housing of the type standard manufactured in die-cast zinc with a diameter of 32mm and a housing height of 36mm. The housing can be mounted through a plate thickness of 1,5-26mm. Surface treatment of the nut is: Electro zinc plated. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
Shape
Circular head
Components
Housing
Material type
Die-cast zinc
Mounting type
Earthnut
Nut material
Steel
Surface finish
Chrome plated
Type
Standard
Diameter in mm
32
Length i mm
0
Housing height in mm - GH
36
Offset height in mm
0
Plate thickness, min.
1.5
Plate thickness, max.
26
Thickness in mm
0
Long description
Housing of the type standard manufactured in die-cast zinc with a diameter of 32mm and a housing height of 36mm. The housing can be mounted through a plate thickness of 1,5-26mm. Surface treatment of the nut is: Electro zinc plated. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
