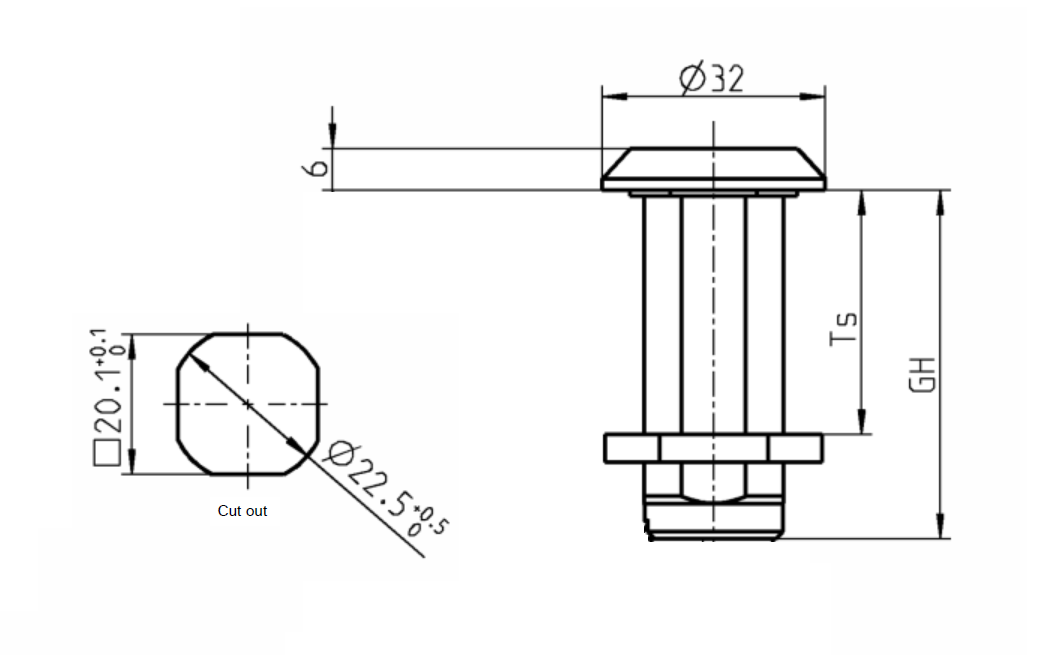

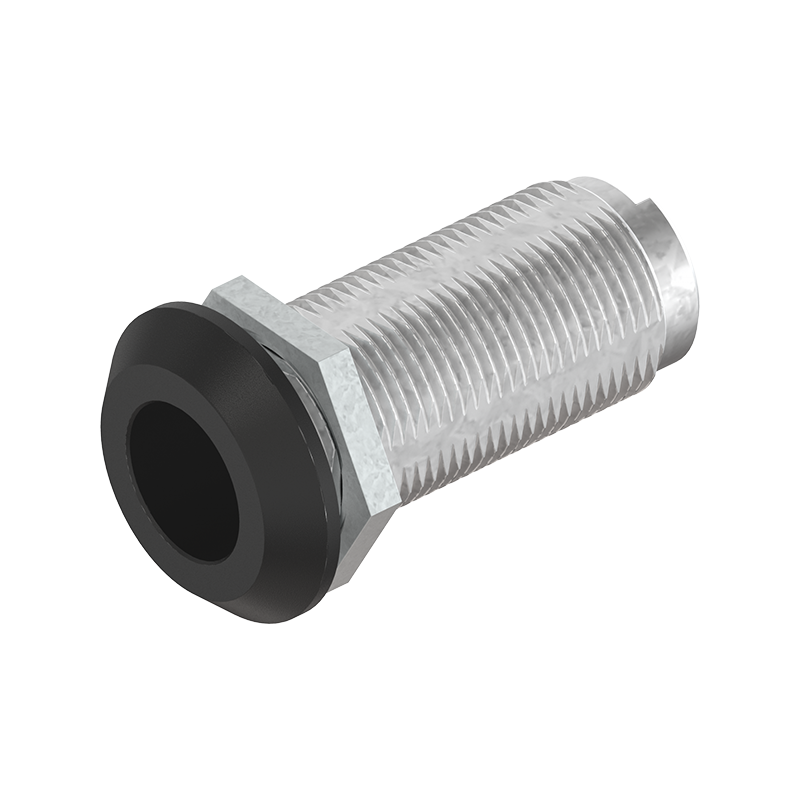

    Housing, standard, die-cast zinc, D=32, GH=50, plate thickness=1,5-40 mm

    MT100879

    Housing of the type standard manufactured in die-cast zinc with a diameter of 32 mm and a housing height of 50mm. The housing kan be mounted through a plate thickness of 1,5-40mm. Surface treatment of the nut is: Electro zinc plated. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.

    Shape
    Circular head
    Components
    Housing
    Material type
    Die-cast zinc
    Mounting type
    Nut
    Nut material
    Steel
    Surface finish
    Black powder coated
    Type
    Standard
    Diameter in mm
    32
    Height in mm
    0
    Length in mm
    0
    Housing height in mm - GH
    50
    Offset height in mm
    0
    Plate thickness min.
    1.5
    Plate thickness max.
    40
    Thickness in mm
    0
    Long description

    Housing of the type standard manufactured in die-cast zinc with a diameter of 32 mm and a housing height of 50mm. The housing kan be mounted through a plate thickness of 1,5-40mm. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.

    Product data

    or create an account to view prices, download datasheets and CAD files *

    Create account

    *not available on all products
