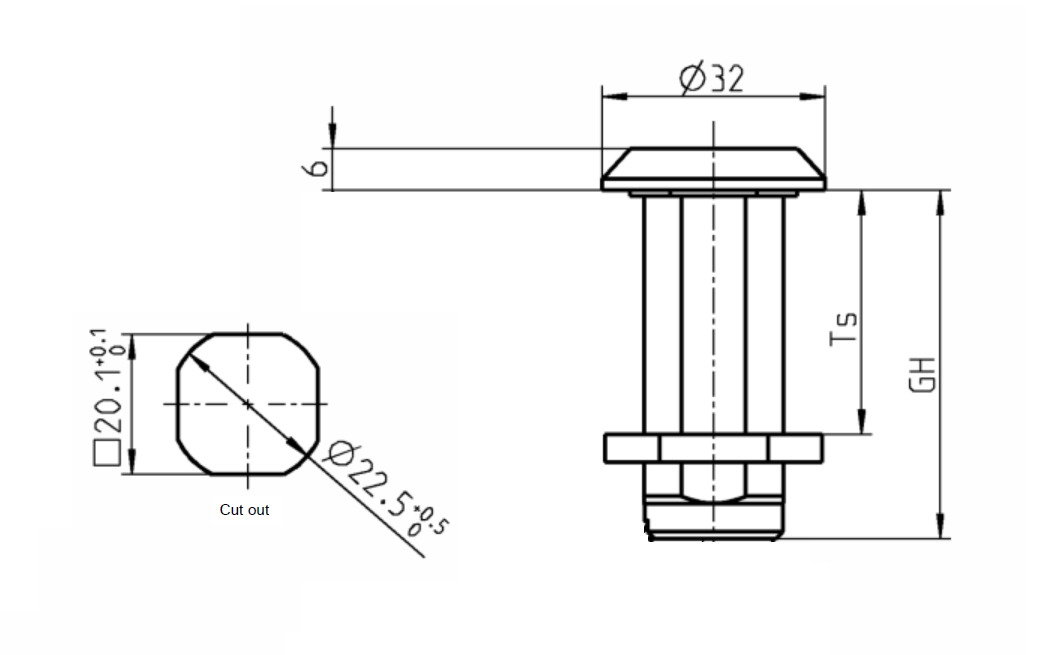

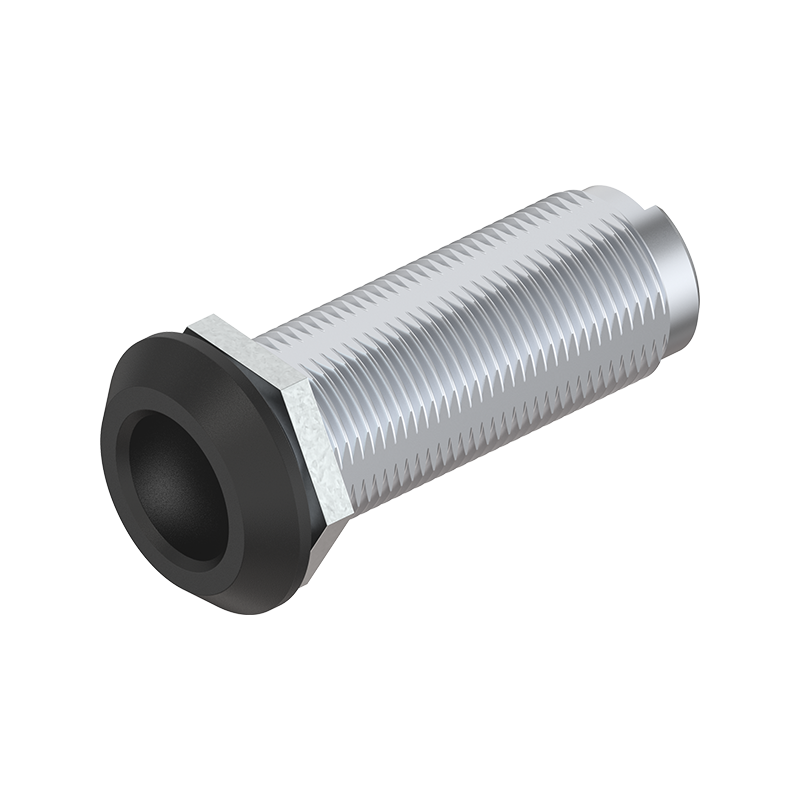

Housing, standard, die-cast zinc, D=32, GH=60, plate thickness=1,5-50 mm
MT101125
Housing of the type standard manufactured in die-cast zinc with a diameter of 32 mm and a housing height of 60mm. The housing kan be mounted through a plate thickness of 1,5-50mm. Surface treatment of the nut is: Electro zinc plated. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
Shape
Circular head
Components
Housing
Material type
Die-cast zinc
Mounting type
Nut
Nut material
Steel
Surface finish
Black powder coated
Type
Standard
Diameter in mm
32
Height in mm
0
Length i mm
0
Housing height in mm - GH
60
Offset height in mm
0
Plate thickness, min.
1.5
Plate thickness, max.
50
Thickness in mm
0
Long description
Housing of the type standard manufactured in die-cast zinc with a diameter of 32 mm and a housing height of 60mm. The housing kan be mounted through a plate thickness of 1,5-50mm. Surface treatment of the nut is: Electro zinc plated. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
