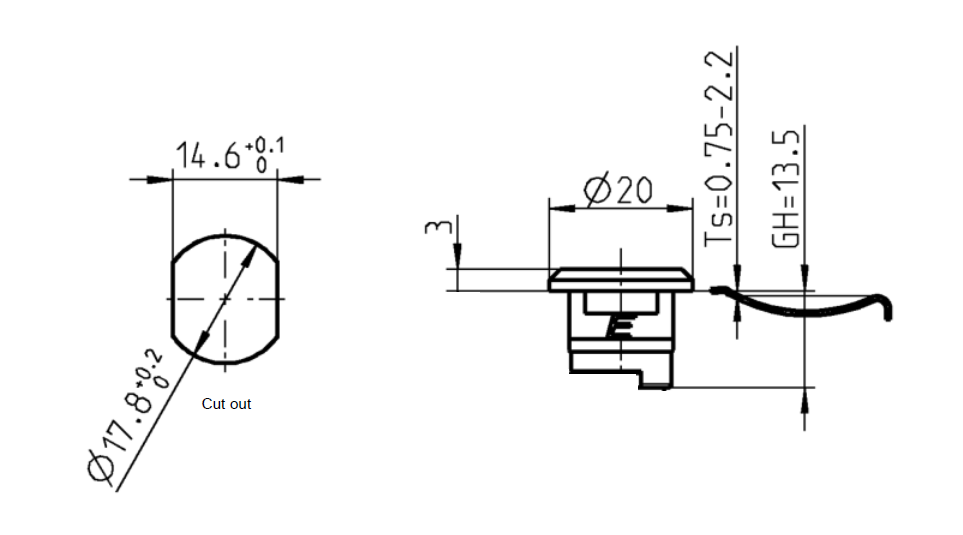

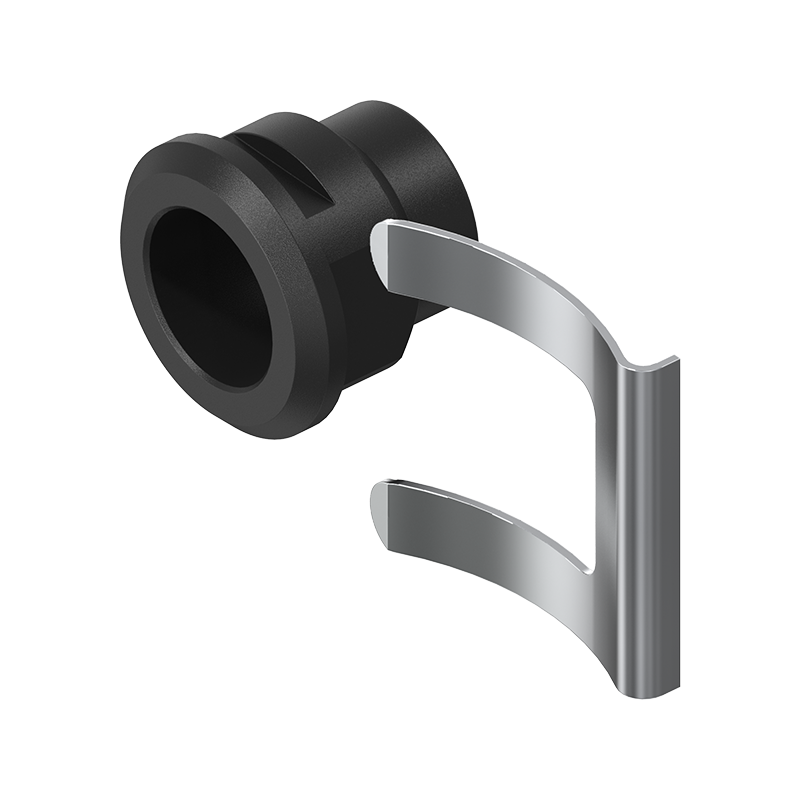

Housing, standard, glass fiber reinforced polyamide, D=20, GH=13,5, plate thickness=0,75-2,2 mm
MT101940
Housing of the type standard manufactured in glass fiber reinforced polyamide with a diameter of 20 mm and a housing height of 13,5mm. The housing kan be mounted through a plate thickness of 0,75-2,2mm. Spring fixing material is: Electro zinc plated steel. Only suitable to use with components from 1022 series. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
Shape
Circular head
Components
Housing
Material type
Glass fiber reinforced polyamide
Mounting type
Spring fixing
Series
1022
Type
Standard
Diameter in mm
20
Height in mm
0
Length i mm
0
Housing height in mm - GH
13.5
Offset height in mm
0
Plate thickness, min.
0.75
Plate thickness, max.
2.2
Thickness in mm
0
Long description
Housing of the type standard manufactured in glass fiber reinforced polyamide with a diameter of 20 mm and a housing height of 13,5mm. The housing kan be mounted through a plate thickness of 0,75-2,2mm. Spring fixing material is: Electro zinc plated steel. Only suitable to use with components from 1022 series. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
