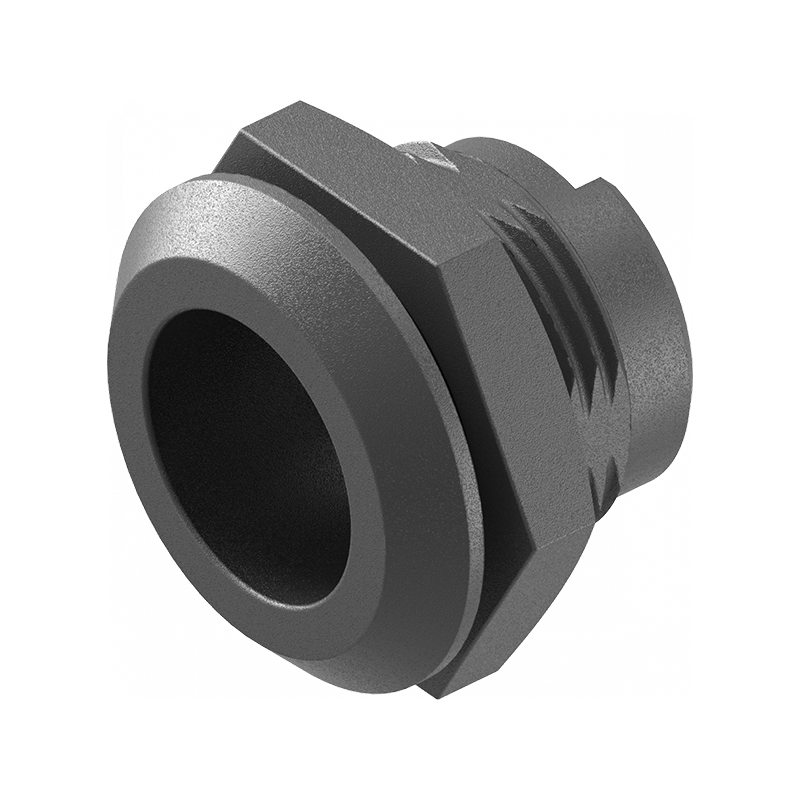

Housing, standard, glass fiber reinforced polyamide, D=28, GH=18, plate thickness=1,2-7 mm
MT101308

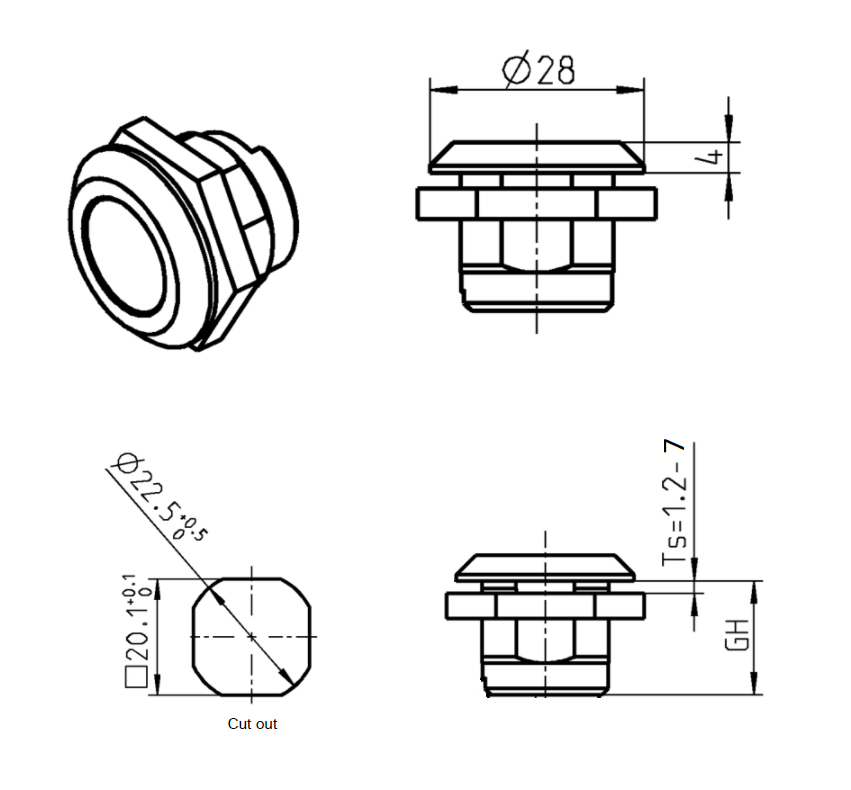

Housing of the type standard manufactured in glass fiber reinforced polyamide with a diameter of 28mm and a housing height of 18mm. The housing can be mounted through a plate thickness of 1,2-7mm. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
Shape
Circular head
Components
Housing
Material type
Glass fiber reinforced polyamide
Mounting type
Nut
Type
Standard
Diameter in mm
28
Length i mm
0
Housing height in mm - GH
18
Offset height in mm
0
Plate thickness, min.
1.2
Plate thickness, max.
7
Thickness in mm
0
Long description
Housing of the type standard manufactured in glass fiber reinforced polyamide with a diameter of 28mm and a housing height of 18mm. The housing can be mounted through a plate thickness of 1,2-7mm. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
