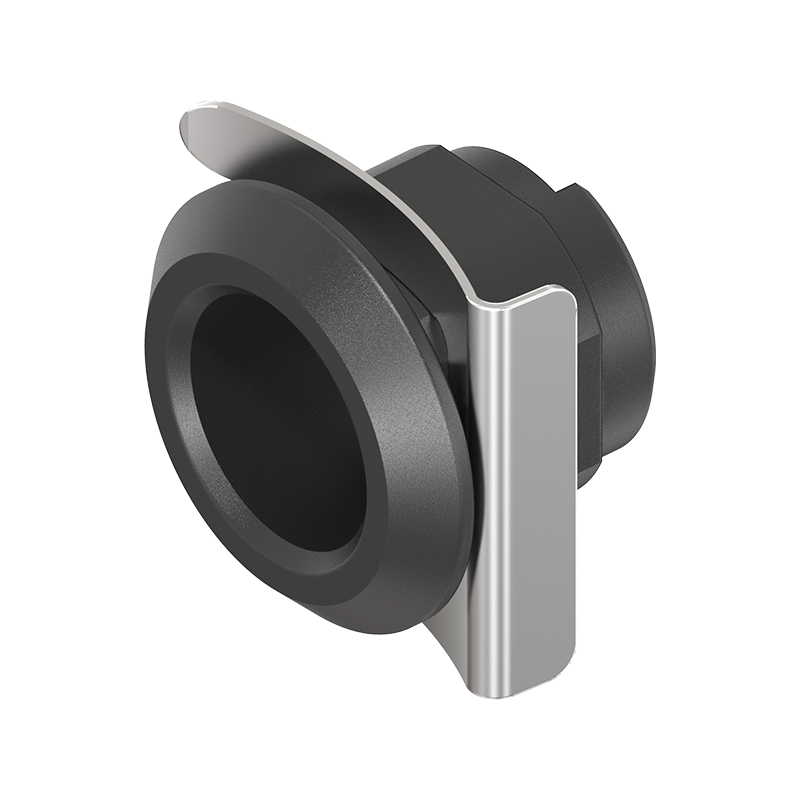

Housing, standard, glass fiber reinforced polyamide, D=28, GH=18, plate thickness=1,5-2 mm
MT101333

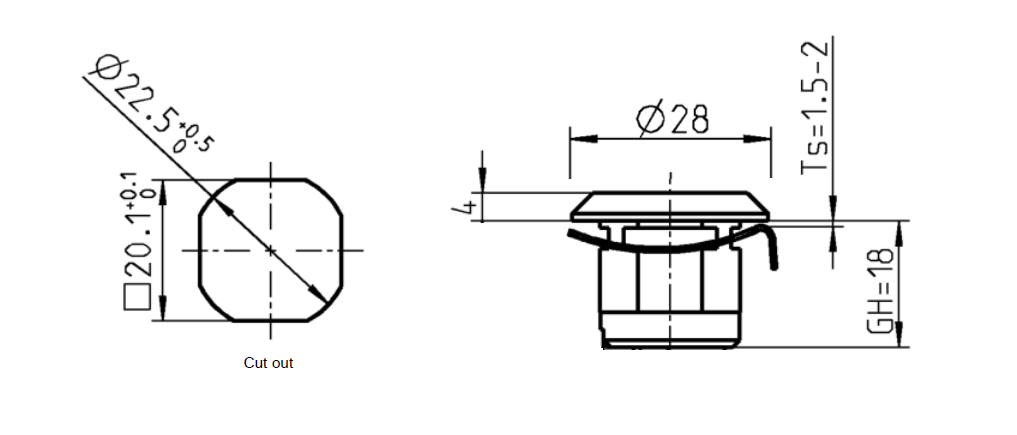

Housing of the type standard manufactured in glass fiber reinforced polyamide with a diameter of 28 mm and a housing height of 18mm. The housing kan be mounted through a plate thickness of 1,5-2mm. Spring fixing material is: Stainless steel AISI 301 We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
Shape
Circular head
Components
Housing
Material type
Glass fiber reinforced polyamide
Type
Standard
Diameter in mm
28
Height in mm
0
Length in mm
0
Housing height in mm - GH
18
Offset height in mm
0
Plate thickness min.
1.5
Plate thickness max.
2
Thickness in mm
0
Long description
Housing of the type standard manufactured in glass fiber reinforced polyamide with a diameter of 28 mm and a housing height of 18mm. The housing kan be mounted through a plate thickness of 1,5-2mm. Spring fixing material is: Stainless steel AISI 301 We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
