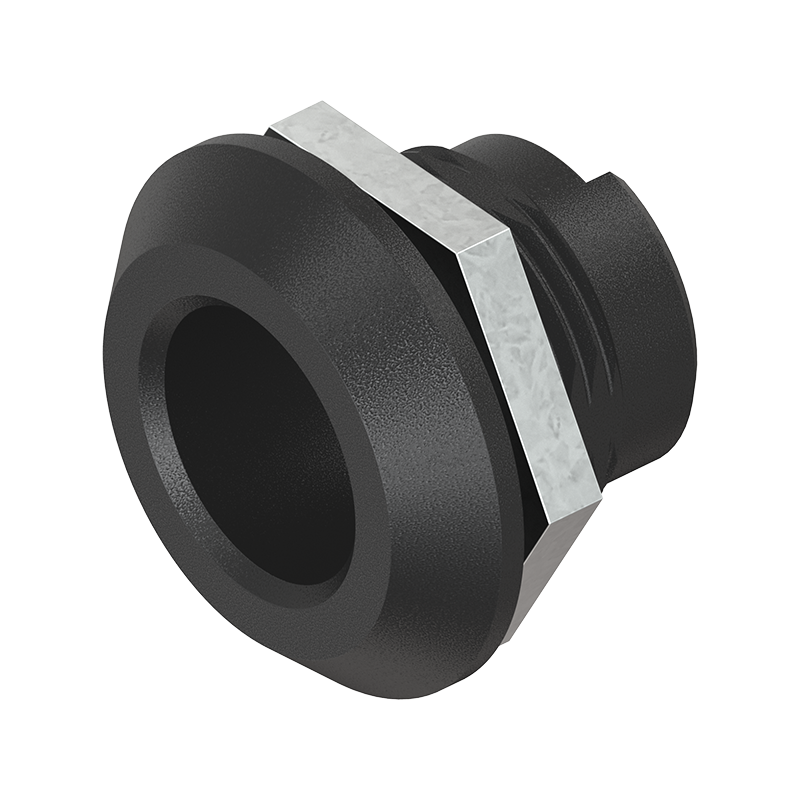

Housing, standard, glass fiber reinforced polyamide, D=32, GH=18, plate thickness=1,2-8 mm
MT101116
Housing of the type standard manufactured in glass fiber reinforced polyamide with a diameter of 32 mm and a housing height of 18mm. The housing kan be mounted through a plate thickness of 1,2-8mm. Surface treatment of the nut is: Electro zinc plated. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
Shape
Circular head
Components
Housing
Material type
Glass fiber reinforced polyamide
Mounting type
Nut
Nut material
Steel
Type
Standard
Diameter in mm
32
Height in mm
0
Length i mm
0
Housing height in mm - GH
18
Offset height in mm
0
Plate thickness, min.
1.2
Plate thickness, max.
8
Thickness in mm
0
Long description
Housing of the type standard manufactured in glass fiber reinforced polyamide with a diameter of 32 mm and a housing height of 18mm. The housing kan be mounted through a plate thickness of 1,2-8mm. Surface treatment of the nut is: Electro zinc plated. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
