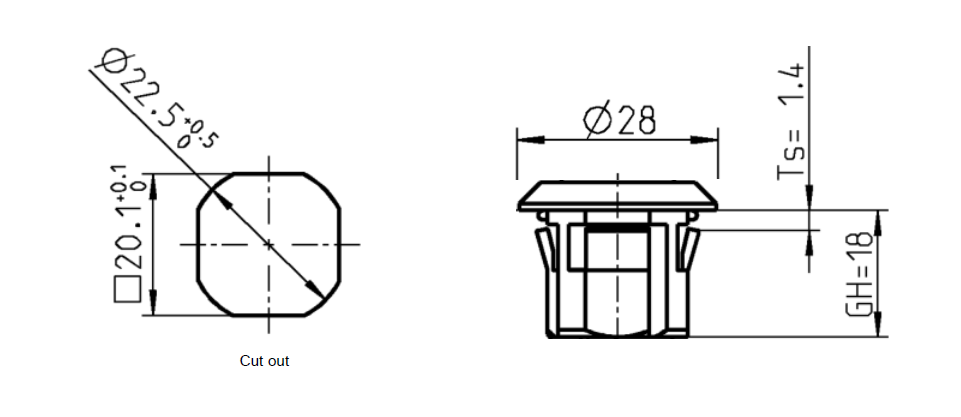

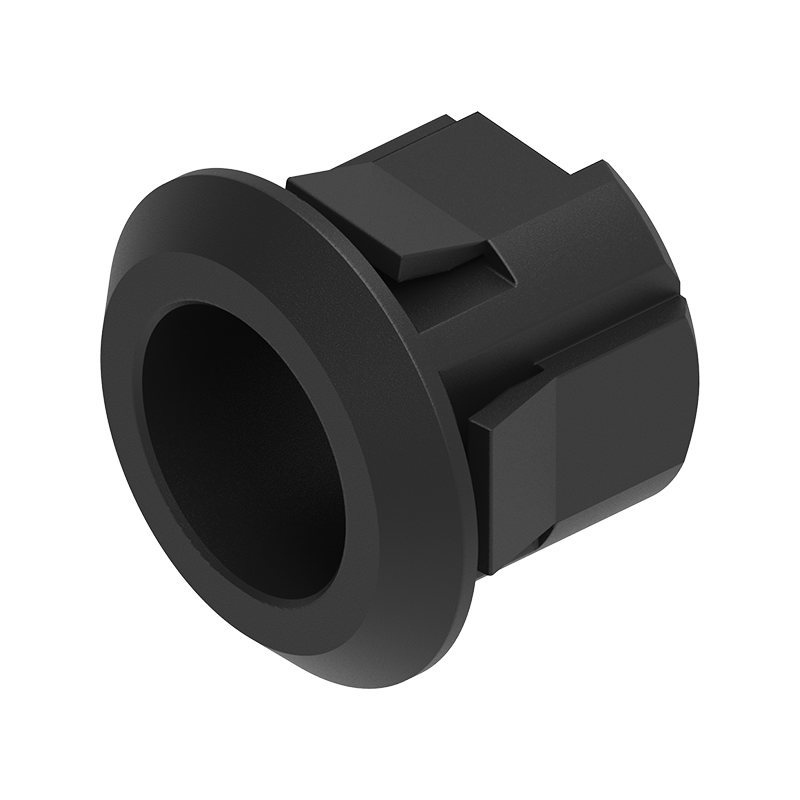

Housing, standard, polyamide, D=28, GH=18, plate thickness=1,4-1,4 mm
MT101330
Housing of the type standard manufactured in polyamide with a diameter of 28 mm and a housing height of 18mm. The housing kan be mounted through a plate thickness of 1,4-1,4mm. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
Shape
Circular head
Components
Housing
Material type
Polyamide
Mounting type
Snap-in
Sealing
O-ring
Type
Standard
IP Code
IP65
Diameter in mm
28
Height in mm
0
Length in mm
0
Housing height in mm - GH
18
Offset height in mm
0
Plate thickness min.
1.4
Plate thickness max.
1.4
Thickness in mm
0
Long description
Housing of the type standard manufactured in polyamide with a diameter of 28 mm and a housing height of 18mm. The housing kan be mounted through a plate thickness of 1,4-1,4mm. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
