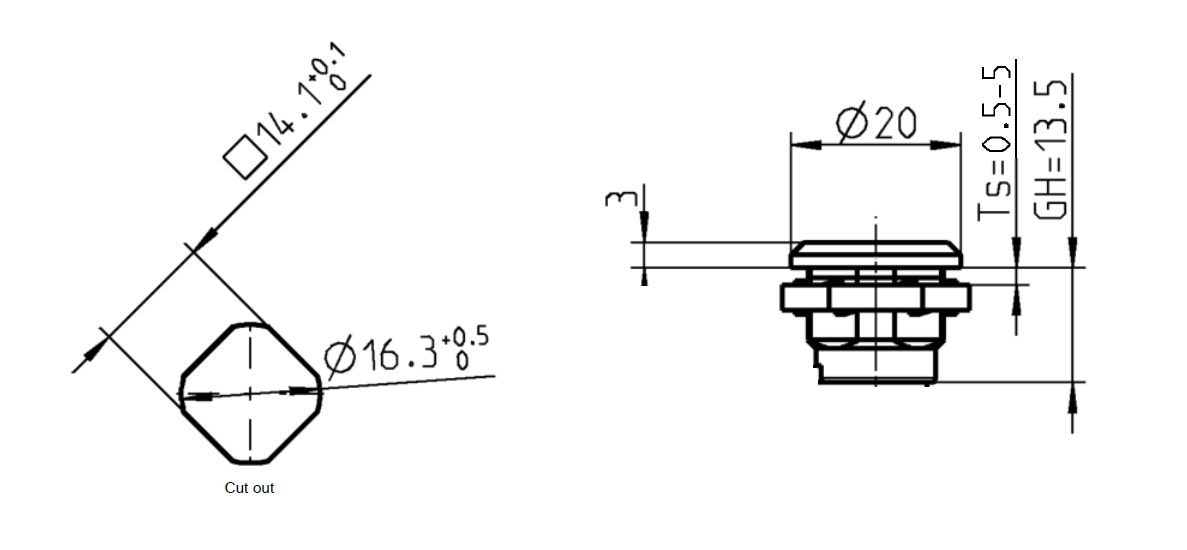

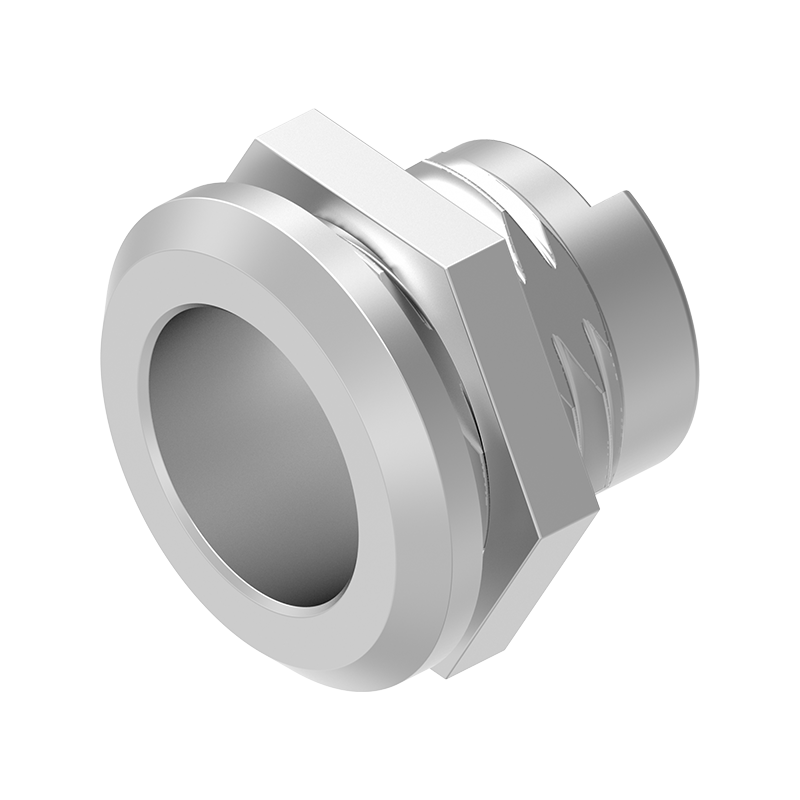

Housing, standard, stainless steel, D=20, GH=13,5, plate thickness=0,5-5 mm
MT101921
Housing of the type standard manufactured in stainless steel with a diameter of 20 mm and a housing height of 13,5mm. The housing kan be mounted through a plate thickness of 0,5-5mm. Only suitable to use with components from 1022 series. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
Shape
Circular head
Components
Housing
Material
AISI 303
Material type
Stainless steel
Mounting type
Nut
Nut material
Stainless steel
Sealing
Foamed
Series
1022
Type
Standard
IP Code
IP65
Diameter in mm
20
Height in mm
0
Length in mm
0
Housing height in mm - GH
13.5
Offset height in mm
0
Plate thickness min.
0.5
Plate thickness max.
5
Thickness in mm
0
Long description
Housing of the type standard manufactured in stainless steel with a diameter of 20 mm and a housing height of 13,5mm. The housing kan be mounted through a plate thickness of 0,5-5mm. Only suitable to use with components from 1022 series. We offer locks, housings, inserts and cams in many types and variants, so if you cannot find a products that fits, then please contact us.
