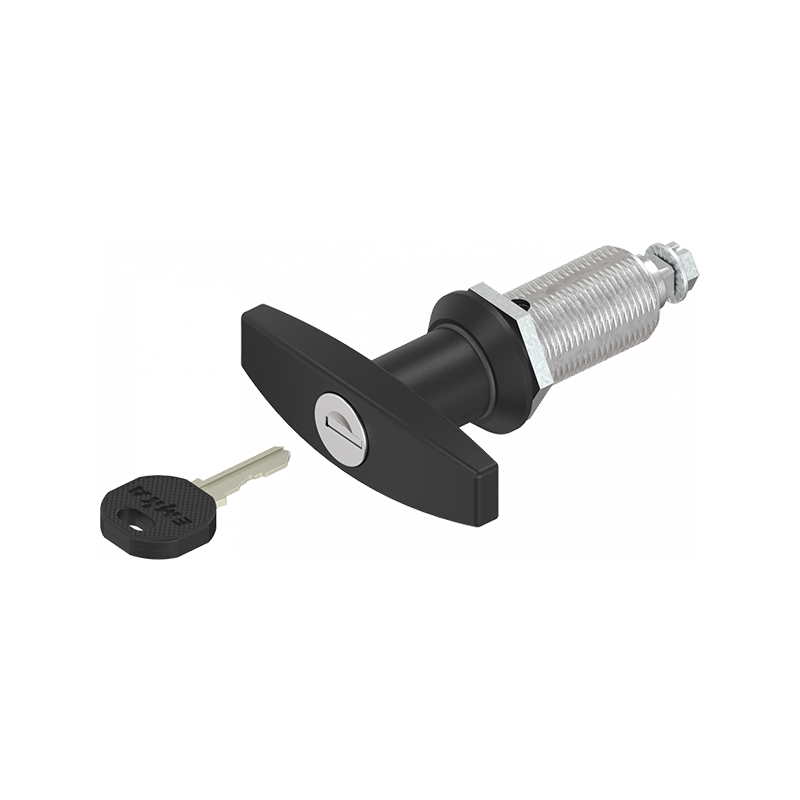

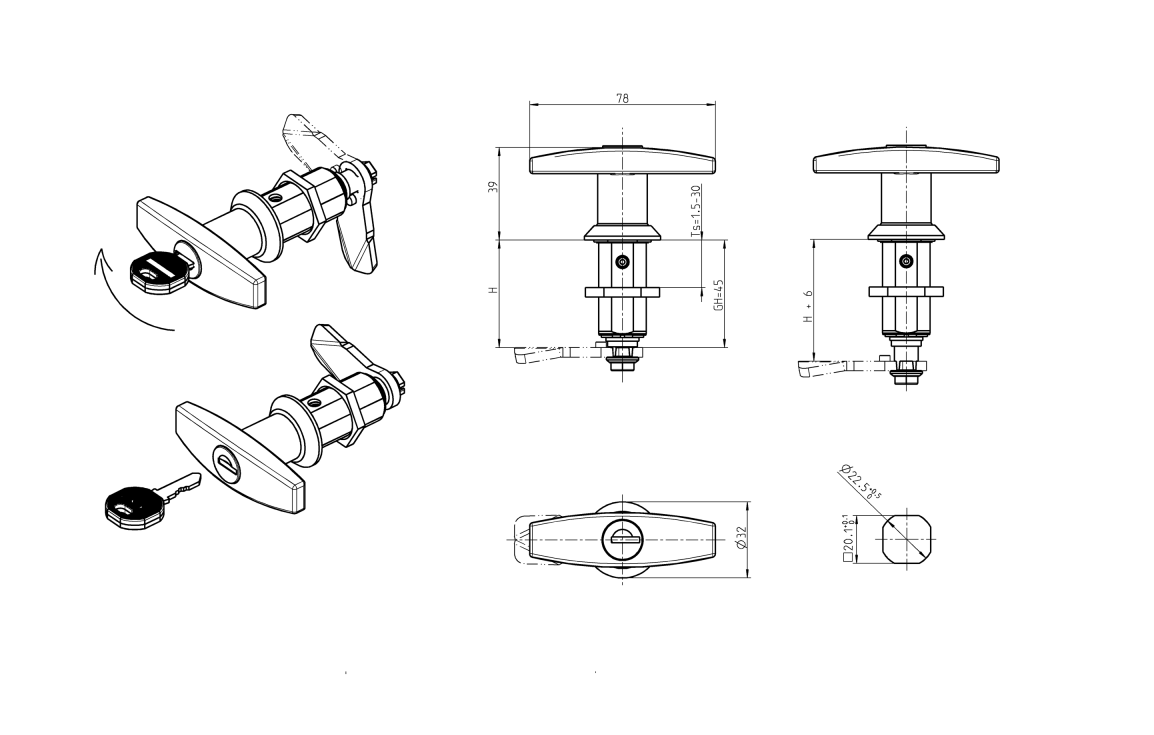

Compression latch, handle 90°, die-cast zinc, T-handle, stroke=6mm, not adjustable, plate thickness=1,5-30mm
MT101401
Compression latch with handle 90° and T-handle manufactured in die-cast zinc. The compression stroke is 6mm and the latch is not adjustable. Plate thickness for mounting is 1,5 to 30mm. Including one key. Surface treatment of the nut is: Electro zinc plated. We offer many latches and locks so please contact us if you cannot find a product that fits your requirements.
Locking
Keyed alike EK333
Other approvals
DIN EN 61373
Operating type
Handle 90°
Adjustable
No
Material type
Die-cast zinc
Mounting type
Nut
Nut material
Steel
Surface finish
Black powder coated
Sealing
Foamed
Cam
No
Type
T-handle
IP Code
IP65
Stroke +
6
Diameter in mm
32
Housing height in mm - GH
45
Plate thickness min.
1.5
Plate thickness max.
30
Long description
Compression latch with handle 90° and T-handle manufactured in die-cast zinc. The compression stroke is 6mm and the latch is not adjustable. Plate thickness for mounting is 1,5 to 30mm. Including one key. Surface treatment of the nut is: Electro zinc plated. We offer many latches and locks so please contact us if you cannot find a product that fits your requirements.
