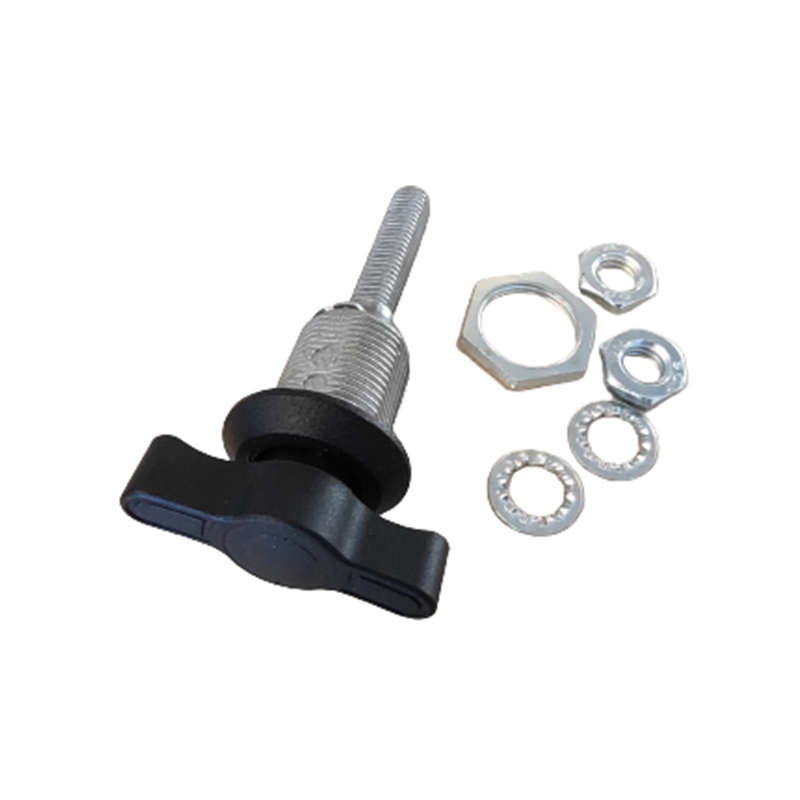

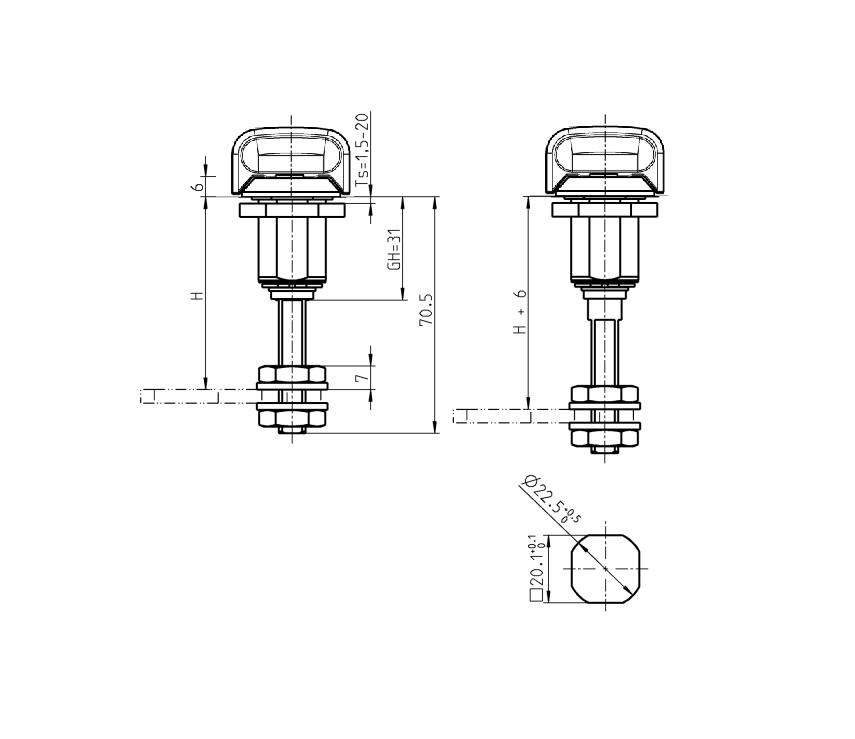

Compression latch, handle 90°, die-cast zinc, Wing handle, stroke=6mm, not adjustable, plate thickness=1,5-20mm
MT101390
Compression latch with handle 90° and Wing handle manufactured in die-cast zinc. The compression stroke is 6mm and the latch is not adjustable. Plate thickness for mounting is 1,5 to 20mm. Surface treatment of the nut is: electro zinc plated. We offer many latches and locks so please contact us if you cannot find a product that fits your requirements.
Locking
Non locking
Operating type
Handle 90°
Adjustable
No
Material type
Die-cast zinc
Mounting type
Nut
Nut material
Steel
Surface finish
Black powder coated
Sealing
Foamed
Cam
No
Type
Wing handle
IP Code
IP65
Diameter in mm
32
Housing height in mm - GH
31
Plate thickness min.
1.5
Plate thickness max.
20
Long description
Compression latch with handle 90° and Wing handle manufactured in die-cast zinc. The compression stroke is 6mm and the latch is not adjustable. Plate thickness for mounting is 1,5 to 20mm. Surface treatment of the nut is: electro zinc plated. We offer many latches and locks so please contact us if you cannot find a product that fits your requirements.
