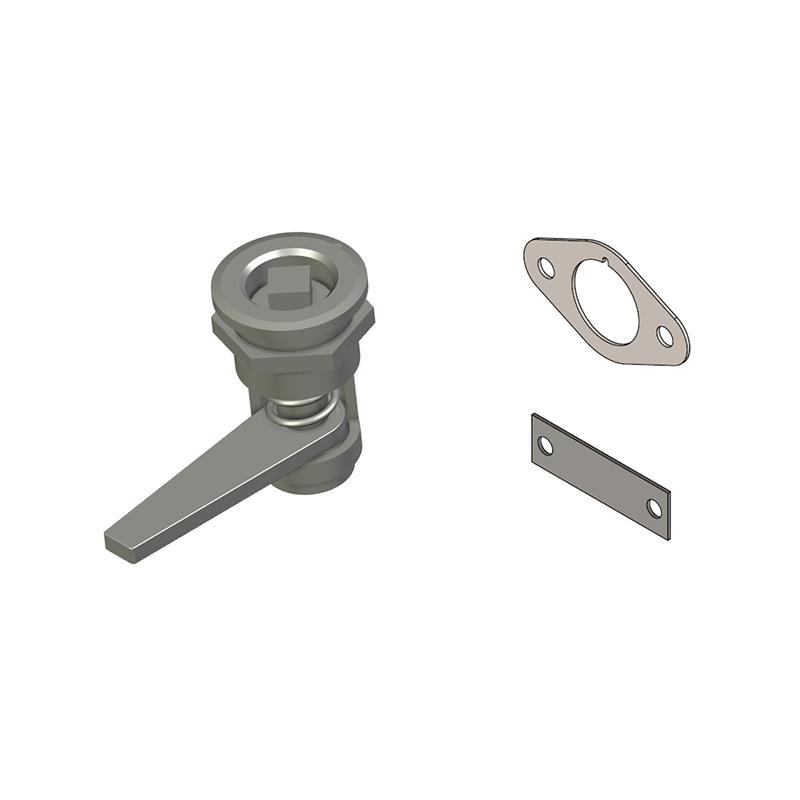

Compression latch, insert 360°+, acid proof stainless steel, Square 8, stroke=7,5mm, hole distance=22,5-30mm adjustable
MT107355
Compression latch with insert 360°+ and Square 8 manufactured in acid proof stainless steel. The compression stroke is 7,5mm and the latch is adjustable.The hole distance is 22,5-30mm. Stainless steel AISI 304 bracket included. We offer many latches and locks so please contact us if you cannot find a product that fits your requirements.
Operating type
Insert 360°+
Adjustable
Yes
Material
AISI 316
Material type
Acid proof Stainless Steel
Mounting type
Nut
Cam
Yes
Type
Square 8
Stroke +
7,5
Diameter in mm
30
H-measure
22.5
Height in mm
0
Length in mm
50
Plate thickness min.
0
Plate thickness max.
0
Long description
Compression latch with insert 360°+ and Square 8 manufactured in acid proof stainless steel. The compression stroke is 7,5mm and the latch is adjustable.The hole distance is 22,5-30mm. Stainless steel AISI 304 bracket included. We offer many latches and locks so please contact us if you cannot find a product that fits your requirements.
