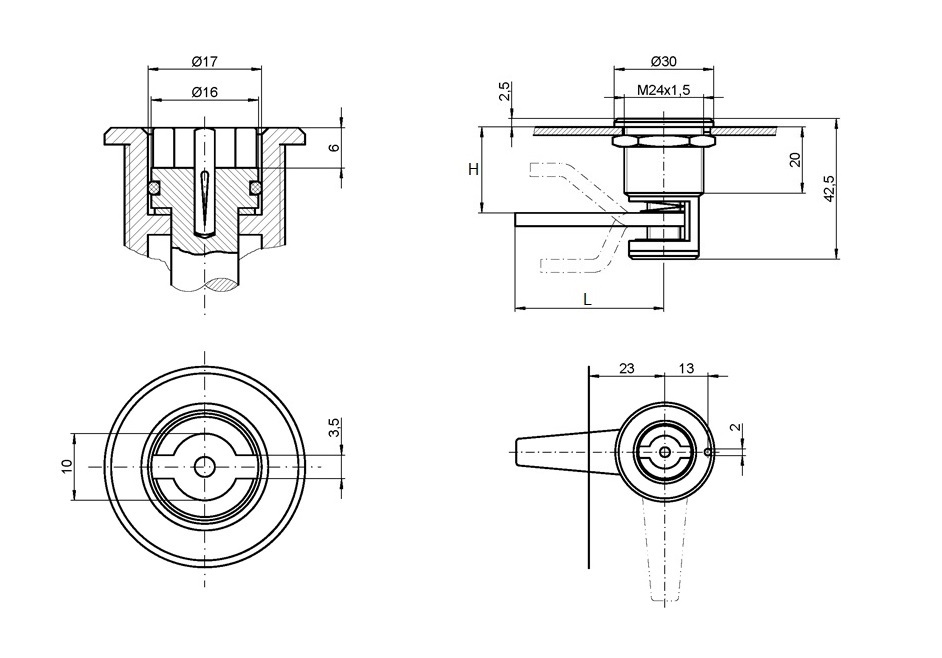

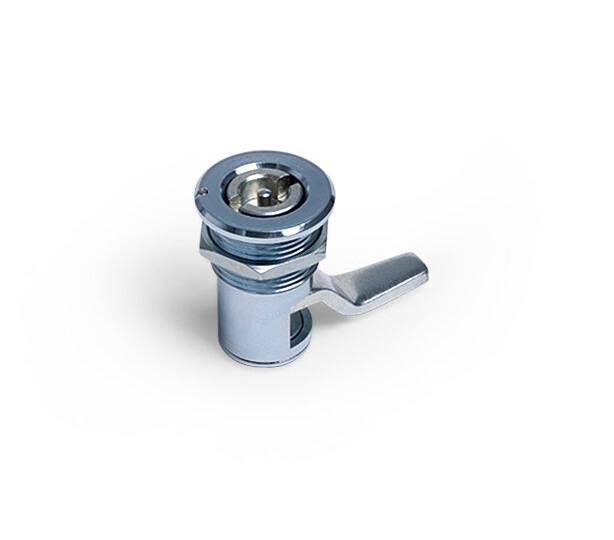

Compression latch, insert 360°+, brass, Double bit 3, stroke=7mm, hole distance=29-36mm adjustable
MT106230
Compression latch with insert 360°+ and Double bit 3 manufactured in brass. The compression stroke is 7mm and the latch is adjustable.The hole distance is 29-36mm. Surface treatment of the nut, insert and cam is: electro zinc plated. We offer many latches and locks so please contact us if you cannot find a product that fits your requirements.
Operating type
Insert 360°+
Insert material
Steel
Adjustable
Yes
Material type
Brass
Mounting type
Nut
Nut material
Steel
Surface finish
Electro zinc plated
Cam
Yes
Cam material
Steel
Type
DIN 3
Stroke +
7
Diameter in mm
30
H-measure
29
Height in mm
0
Length in mm
43
Plate thickness min.
0
Plate thickness max.
0
Long description
Compression latch with insert 360°+ and Double bit 3 manufactured in brass. The compression stroke is 7mm and the latch is adjustable.The hole distance is 29-36mm. Surface treatment of the nut, insert and cam is: electro zinc plated. We offer many latches and locks so please contact us if you cannot find a product that fits your requirements.
