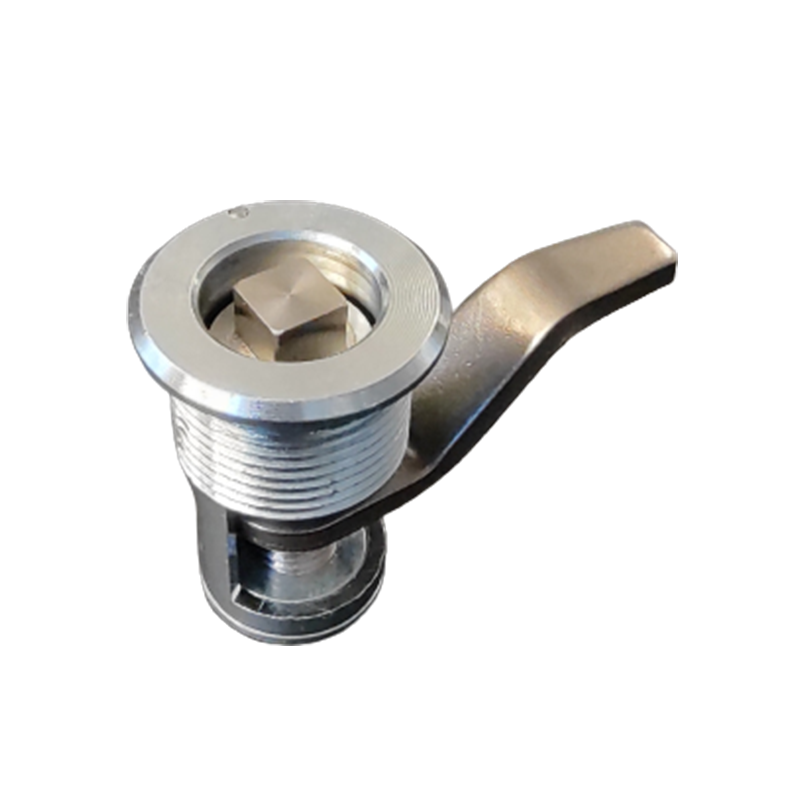

Compression latch, insert 360°+, brass, Square 8, stroke=7mm, hole distance=9-16mm adjustable
MT106203
Compression latch with insert 360°+ and Square 8 manufactured in brass. The compression stroke is 7mm and the latch is adjustable.The hole distance is 9-16mm . We offer many latches and locks so please contact us if you cannot find a product that fits your requirements.
Operating type
Insert 360°+
Insert material
Stainless steel
Adjustable
Yes
Material type
Brass
Mounting type
Nut
Surface finish
Electro zinc plated
Cam
Yes
Cam material
Stainless steel
Type
Square 8
Stroke +
7
Diameter in mm
30
H-measure
9
Height in mm
0
Length in mm
40.5
Plate thickness min.
0
Plate thickness max.
0
Long description
Compression latch with insert 360°+ and Square 8 manufactured in brass. The compression stroke is 7mm and the latch is adjustable.The hole distance is 9-16mm . We offer many latches and locks so please contact us if you cannot find a product that fits your requirements.
