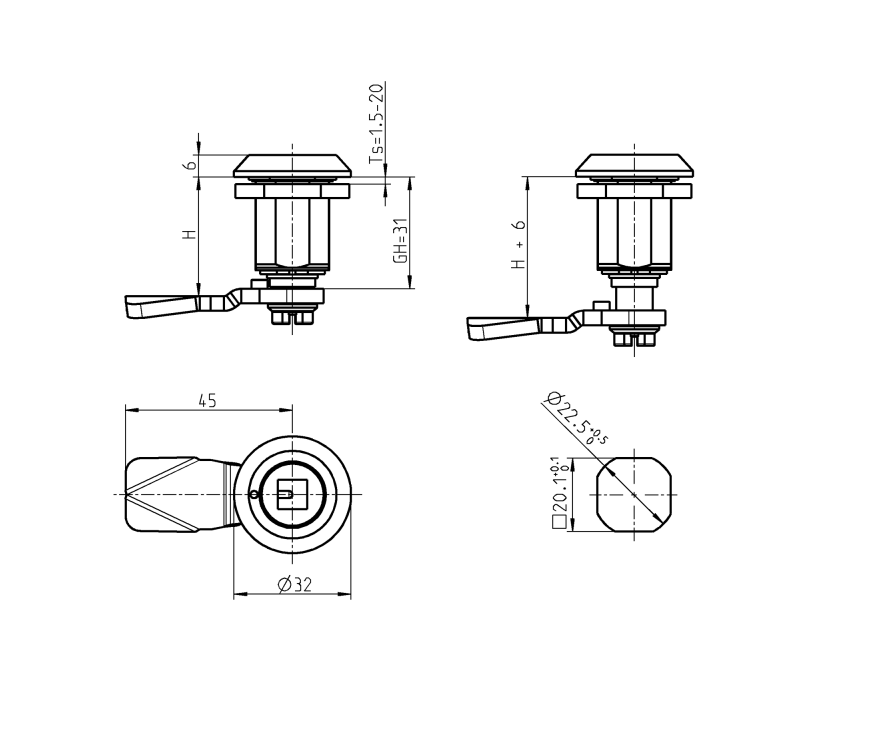

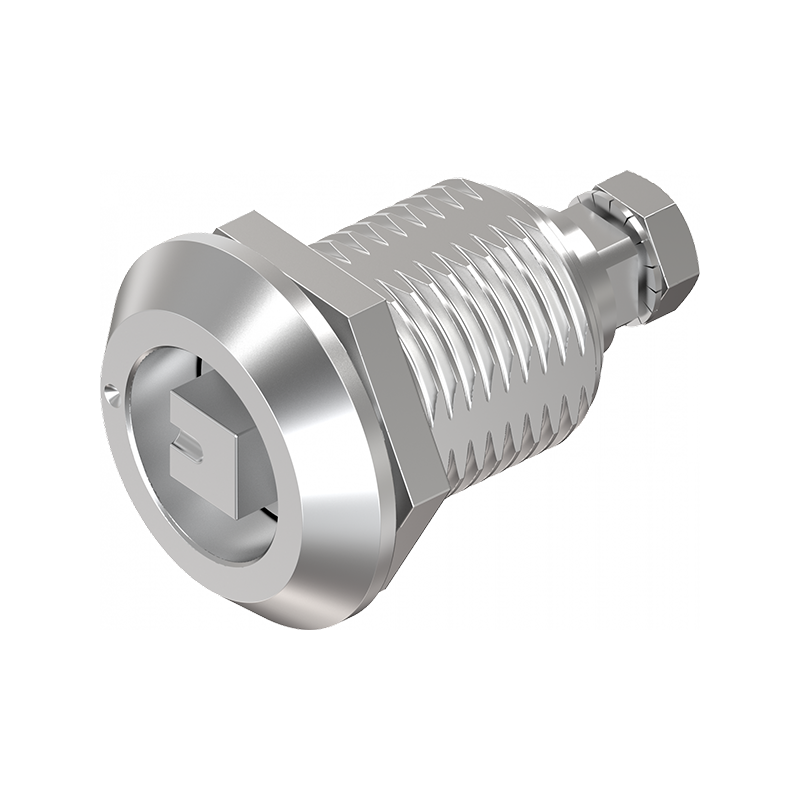

Compression latch, insert 90°, acid proof stainless steel, Square 8, stroke=6mm, not adjustable, plate thickness=1,5-20mm
MT101369
Compression latch with insert 90° and Square 8 manufactured in acid proof stainless steel. The compression stroke is 6mm and the latch is not adjustable. Plate thickness for mounting is 1,5 to 20mm. We offer many latches and locks so please contact us if you cannot find a product that fits your requirements.
Other approvals
DIN EN 61373
Operating type
Insert 90°
Fire retardant
DIN EN 45545-2 with E20
Adjustable
No
Material
AISI 316
Material type
Acid proof Stainless Steel
Mounting type
Nut
Sealing
Foamed
Cam
No
Type
Square 8
IP Code
IP65
Stroke +
6
Diameter in mm
32
Housing height in mm - GH
31
Plate thickness min.
1.5
Plate thickness max.
20
Long description
Compression latch with insert 90° and Square 8 manufactured in acid proof stainless steel. The compression stroke is 6mm and the latch is not adjustable. Plate thickness for mounting is 1,5 to 20mm. We offer many latches and locks so please contact us if you cannot find a product that fits your requirements.
