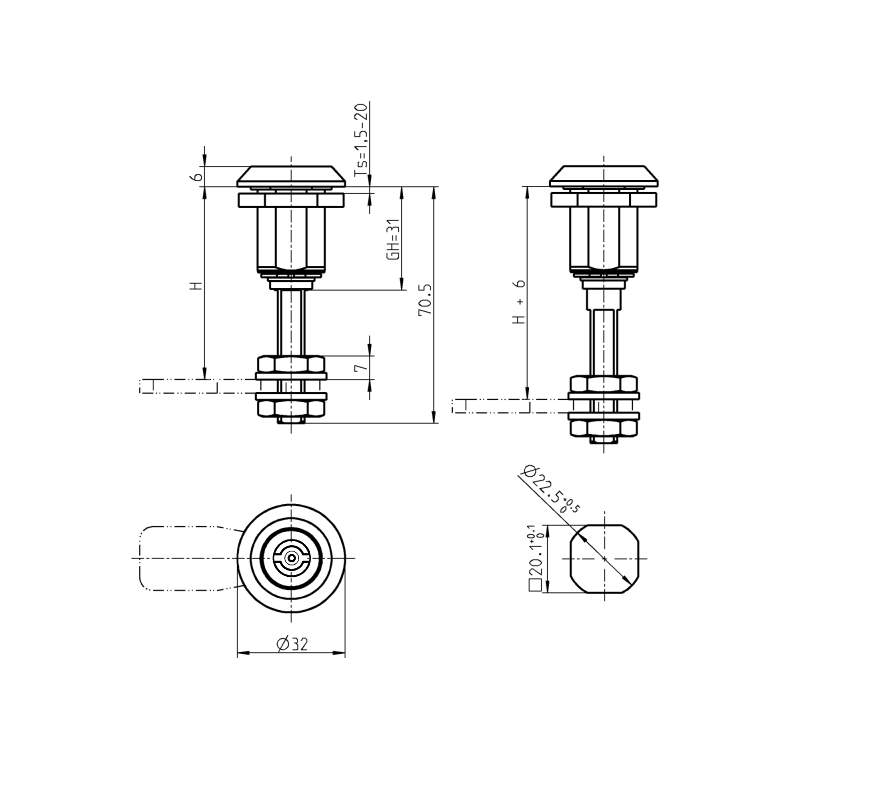

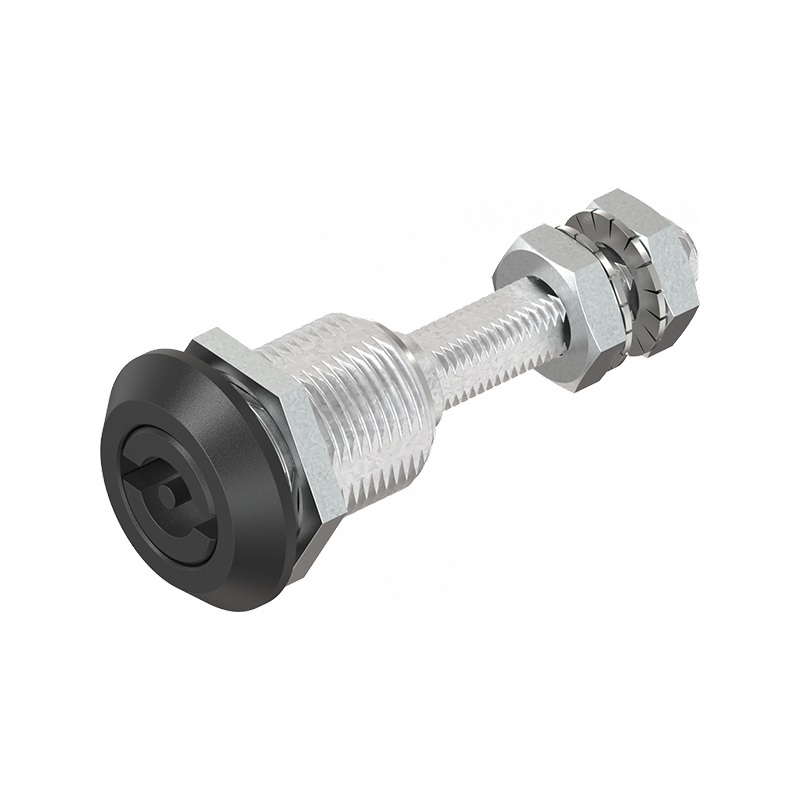

Compression latch, insert 90°, die-cast zinc, DIN 3, stroke=6mm, adjustable, plate thickness=1,5-20mm
MT101391
Compression latch with insert 90° and DIN 3 manufactured in die-cast zinc. The compression stroke is 6mm and the latch is adjustable. Plate thickness for mounting is 1,5 to 20mm. Surface treatment of the nut is: Electro zinc plated. We offer many latches and locks so please contact us if you cannot find a product that fits your requirements.
Other approvals
DIN EN 61373
Operating type
Insert 90°
Adjustable
Yes
Material type
Die-cast zinc
Mounting type
Nut
Nut material
Steel
Surface finish
Black powder coated
Sealing
Foamed
Cam
No
Type
DIN 3
IP Code
IP65
Stroke +
6
Diameter in mm
32
Housing height in mm - GH
31
Plate thickness min.
1.5
Plate thickness max.
20
Long description
Compression latch with insert 90° and DIN 3 manufactured in die-cast zinc. The compression stroke is 6mm and the latch is adjustable. Plate thickness for mounting is 1,5 to 20mm. Surface treatment of the nut is: Electro zinc plated. We offer many latches and locks so please contact us if you cannot find a product that fits your requirements.
