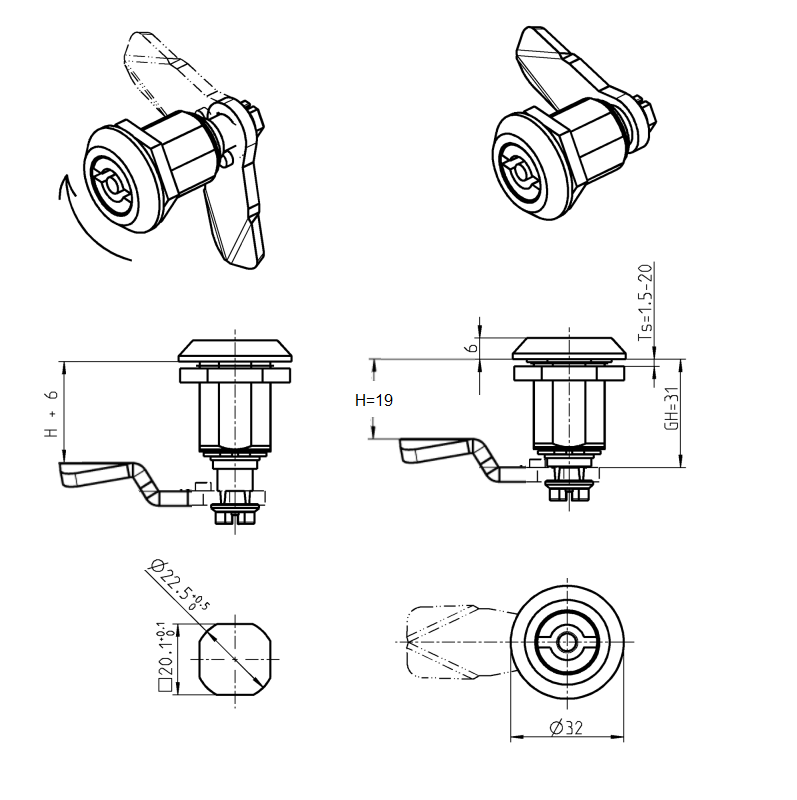

Compression latch, insert 90°, die-cast zinc, Double bit 5, stroke=6mm, hole distance=19-25mm not adjustable, plate thickness=1,5-20mm
MT104565
Compression latch with insert 90° and Double bit 5 manufactured in die-cast zinc. The compression stroke is 6mm and the latch is not adjustable.The hole distance is 19-25mm Plate thickness for mounting is 1,5 to 20mm. Surface treatment of the nut and cam is: electro zinc plated. We offer many latches and locks so please contact us if you cannot find a product that fits your requirements.
Other approvals
DIN EN 61373
Operating type
Insert 90°
Adjustable
No
Material type
Die-cast zinc
Mounting type
Nut
Nut material
Steel
Surface finish
White powder coated
Sealing
Foamed
Cam
Yes
Tungemateriale
Steel
Type
DIN 5
IP Code
IP65
Stroke +
6
Diameter in mm
32
H-measure
19
Height in mm
0
Length i mm
0
Plate thickness, min.
1.5
Plate thickness, max.
20
Long description
Compression latch with insert 90° and Double bit 5 manufactured in die-cast zinc. The compression stroke is 6mm and the latch is not adjustable.The hole distance is 19-25mm Plate thickness for mounting is 1,5 to 20mm. Surface treatment of the nut and cam is: electro zinc plated. We offer many latches and locks so please contact us if you cannot find a product that fits your requirements.
Product data
or create an account to view prices, download datasheets and CAD files *
Create account*not available on all products
