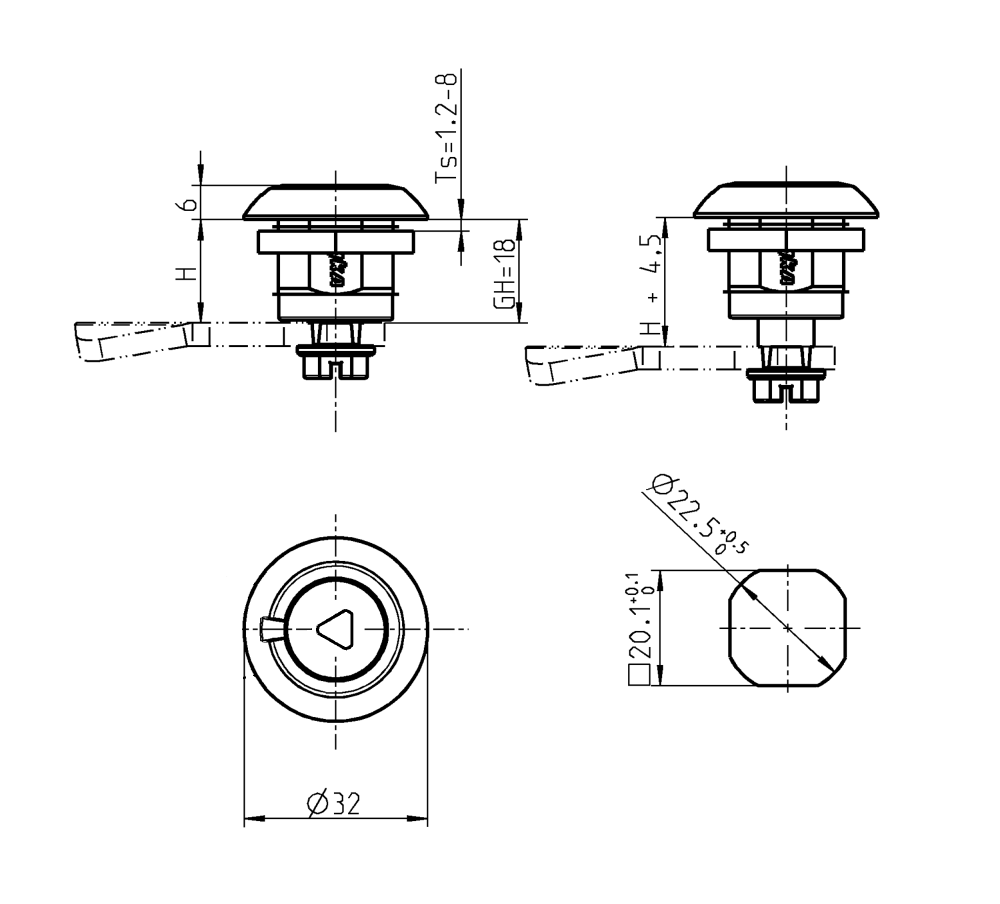

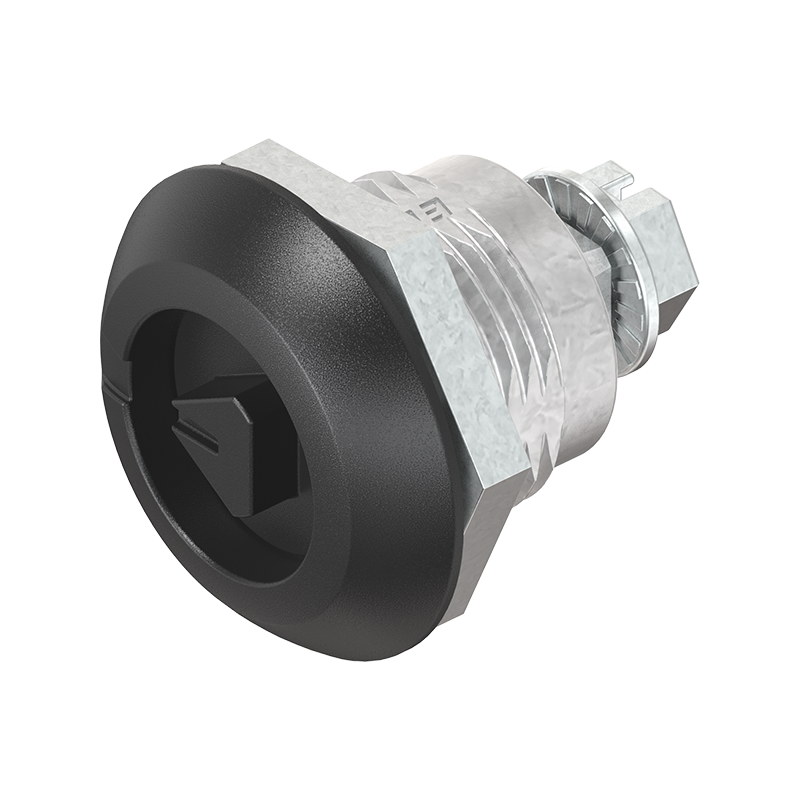

Compression latch, insert 90°, die-cast zinc, Triangular 8, stroke=4,5mm, not adjustable, plate thickness=1,2-8mm
MT101414
Compression latch with insert 90° and Triangular 8 manufactured in die-cast zinc. The compression stroke is 4,5mm and the latch is not adjustable. Plate thickness for mounting is 1,2 to 8mm. Surface treatment of the nut is: electro zinc plated. We offer many latches and locks so please contact us if you cannot find a product that fits your requirements.
Other approvals
DIN EN 61373
Operating type
Insert 90°
Adjustable
No
Material type
Die-cast zinc
Mounting type
Nut
Nut material
Steel
Surface finish
Black powder coated
Sealing
Foamed
Cam
No
Type
Triangular 8
IP Code
IP66
Stroke +
4,5
Diameter in mm
32
H-measure
0
Height in mm
0
Length i mm
0
Housing height in mm - GH
18
Plate thickness, min.
1.2
Plate thickness, max.
8
Long description
Compression latch with insert 90° and Triangular 8 manufactured in die-cast zinc. The compression stroke is 4,5mm and the latch is not adjustable. Plate thickness for mounting is 1,2 to 8mm. Surface treatment of the nut is: electro zinc plated. We offer many latches and locks so please contact us if you cannot find a product that fits your requirements.
