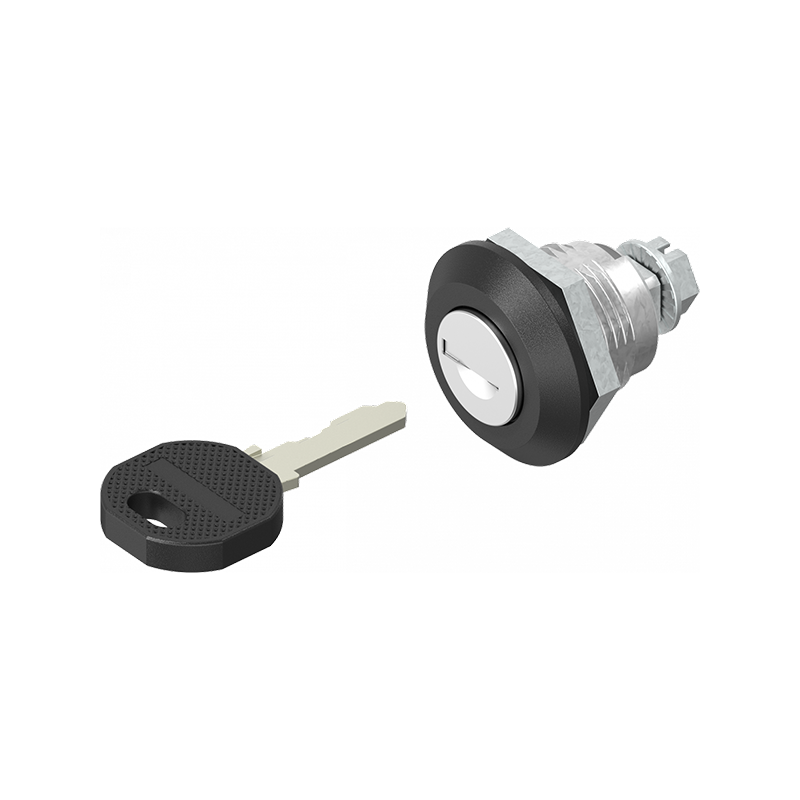

Housing with cylinder lock, keyed alike ek333, die-cast zinc, L=mm, GH=18mm, plate thickness=1,2-8mm
MT102179
Housing with cylinder lock manufactured in die-cast zinc and with locking of the type keyed alike ek333. The length is mm, the housing height is 18 mm and the plate thickness for mounting is 1,2 mm to 8 mm. Including one key. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
Locking
Keyed alike EK333
Material type
Die-cast zinc
Mounting type
Nut
Nut material
Steel
Surface finish
Black powder coated
Type
Cylinder lock
Diameter in mm
32

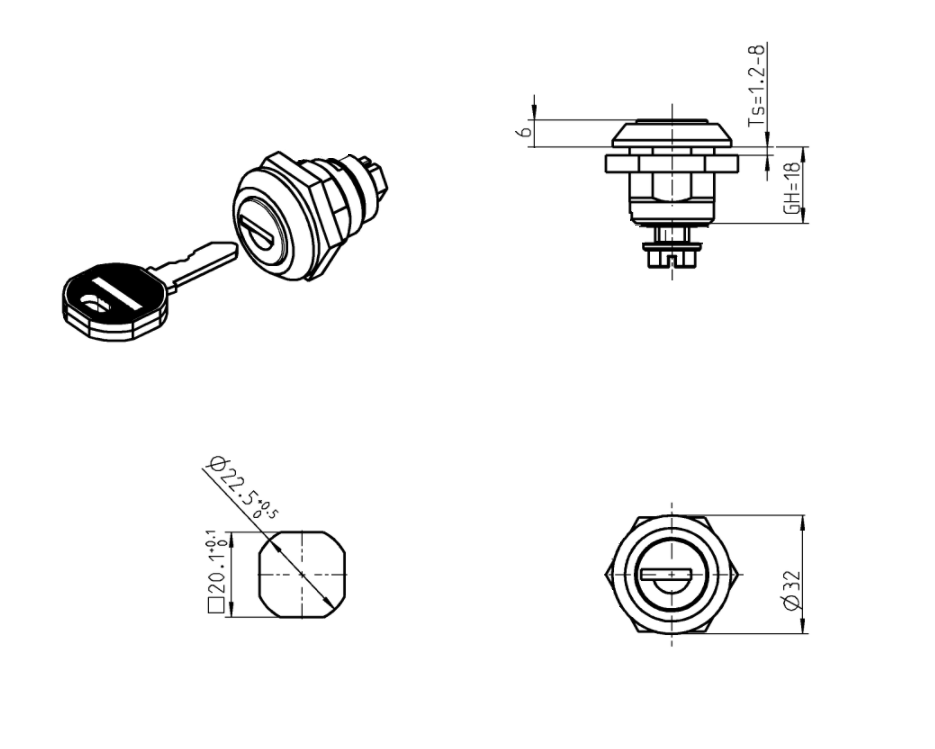

Housing height in mm - GH
18
Plate thickness min.
1.2
Plate thickness max.
8
Long description
Housing with cylinder lock manufactured in die-cast zinc and with locking of the type keyed alike ek333. The length is mm, the housing height is 18 mm and the plate thickness for mounting is 1,2 mm to 8 mm. Including one key. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
