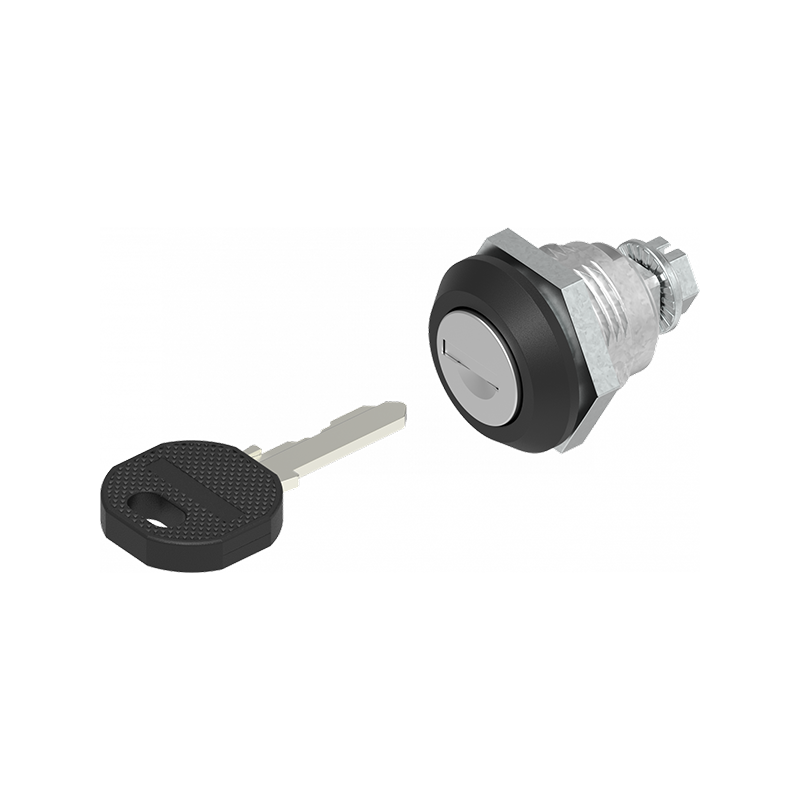

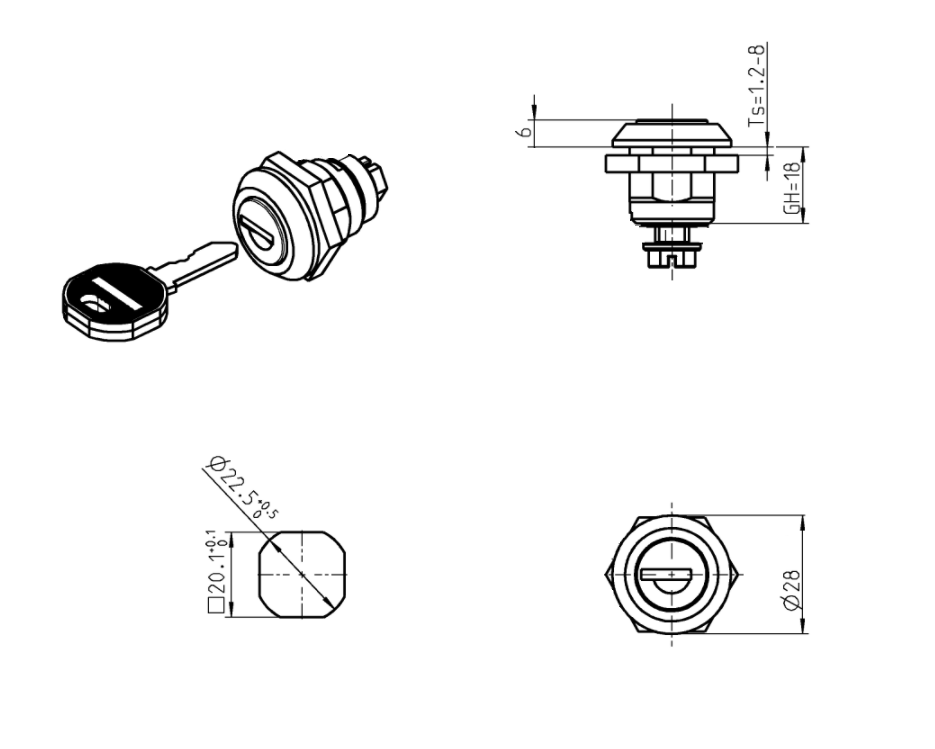

Housing with cylinder lock, keyed different, die-cast zinc, L=mm, GH=18mm, plate thickness=1,2-8mm
MT102185
Housing with cylinder lock manufactured in die-cast zinc and with locking of the type keyed different. The length is mm, the housing height is 18 mm and the plate thickness for mounting is 1,2 mm to 8 mm. Including one key. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
Locking
Keyed different
Material type
Die-cast zinc
Mounting type
Nut
Nut material
Steel
Surface finish
Black powder coated
Type
Cylinder lock
Diameter in mm
28
Housing height in mm - GH
18
Plate thickness min.
1.2
Plate thickness max.
8
Long description
Housing with cylinder lock manufactured in die-cast zinc and with locking of the type keyed different. The length is mm, the housing height is 18 mm and the plate thickness for mounting is 1,2 mm to 8 mm. Including one key. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
