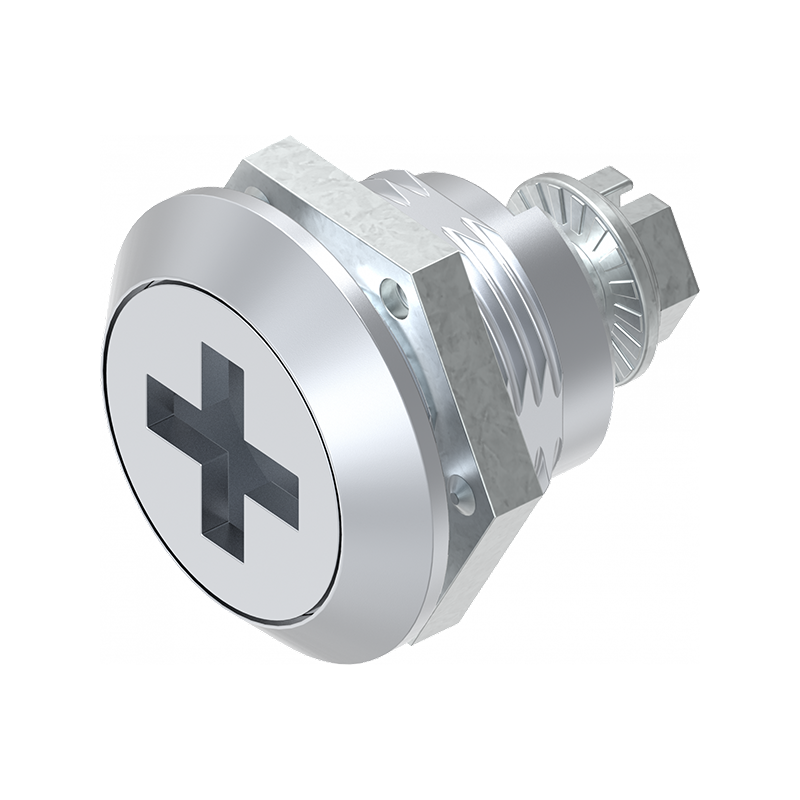

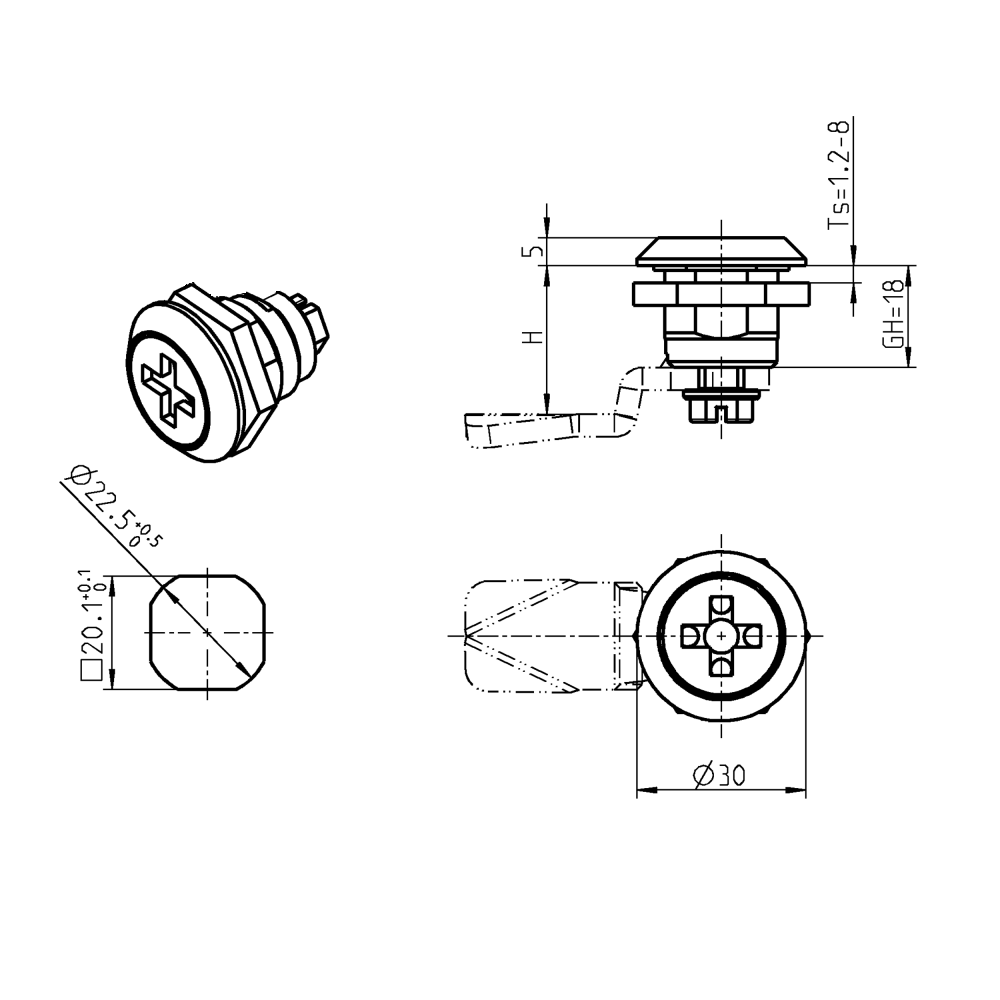

Housing with insert, fiat, non locking, die-cast zinc, L=mm, GH=18mm, plate thickness=1,2-8mm
MT101087
Housing with fiat insert manufactured in die-cast zinc and with locking of the type non locking. The length is mm, the housing height is 18 mm and the plate thickness for mounting is 1,2 mm to 8 mm. Surface treatment of the earthnut is: Electro zinc plated. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
Locking
Non locking
Material type
Die-cast zinc
Mounting type
Earthnut
Nut material
Steel
Surface finish
Chrome plated
Sealing
Flat
Type
FIAT
IP Code
IP65
Diameter in mm
30
Housing height in mm - GH
18
Plate thickness min.
1.2
Plate thickness max.
8
Long description
Housing with fiat insert manufactured in die-cast zinc and with locking of the type non locking. The length is mm, the housing height is 18 mm and the plate thickness for mounting is 1,2 mm to 8 mm. Surface treatment of the earthnut is: Electro zinc plated. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
