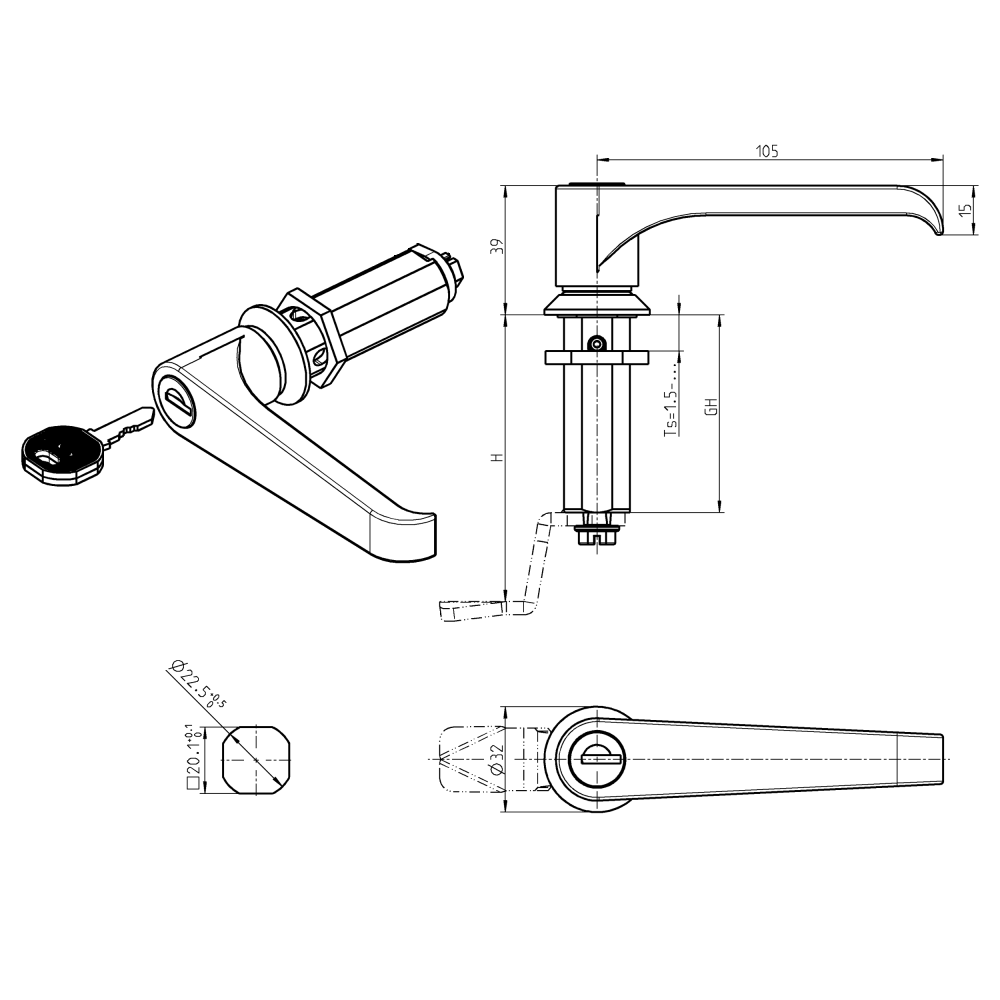

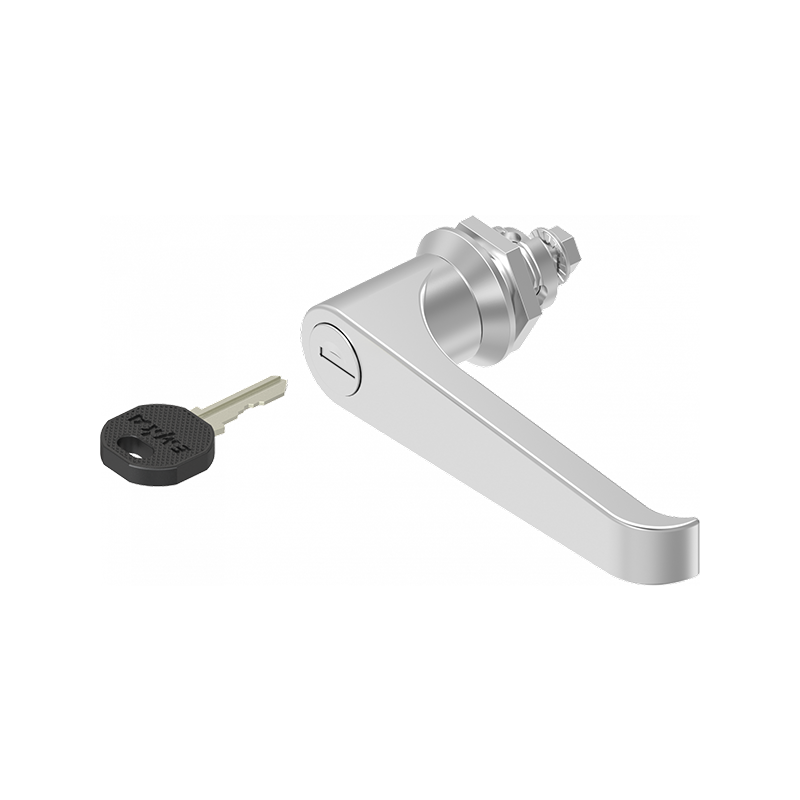

Housing with l-handle, keyed alike ek333, acid proof stainless steel, L=105mm, GH=18mm, plate thickness=1,5-8mm
MT100815
Housing with l-handle manufactured in acid proof stainless steel and with locking of the type keyed alike ek333. The length is 105 mm, the housing height is 18 mm and the plate thickness for mounting is 1,5 mm to 8 mm. Including one key. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
Locking
Keyed alike EK333
Material
AISI 316
Material type
Acid proof Stainless Steel
Mounting type
Nut
Nut material
Stainless steel
Sealing
Flat
Type
L-handle
IP Code
IP65
Diameter in mm
32
Length i mm
105
Housing height in mm - GH
18
Plate thickness, min.
1.5
Plate thickness, max.
8
Net Weight (Kg)
0.32296
HS Code
83016000
Country of Origin
DE
Long description
Housing with l-handle manufactured in acid proof stainless steel and with locking of the type keyed alike ek333. The length is 105 mm, the housing height is 18 mm and the plate thickness for mounting is 1,5 mm to 8 mm. Including one key. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
