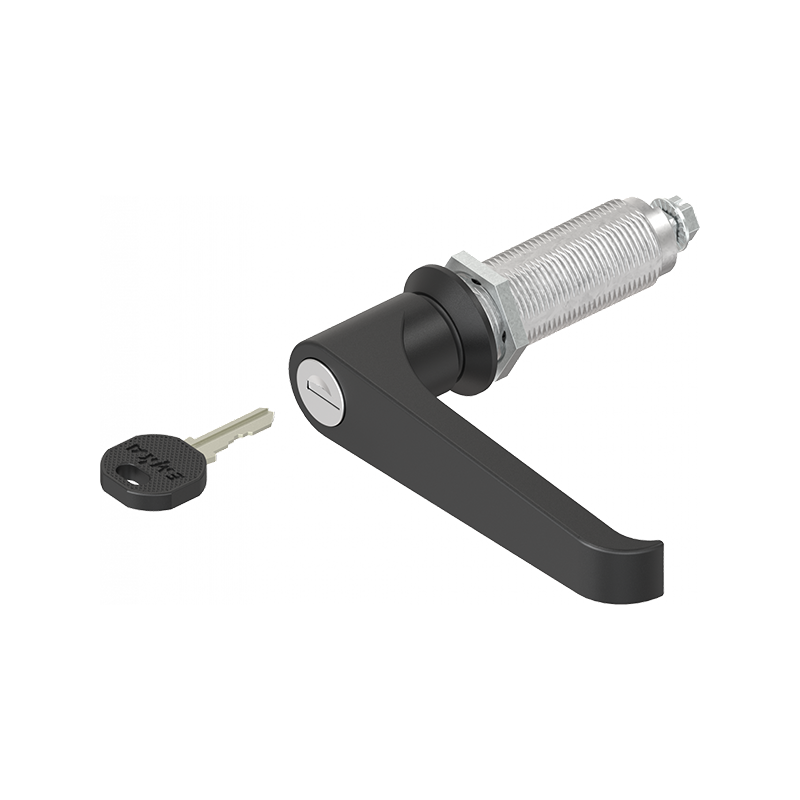

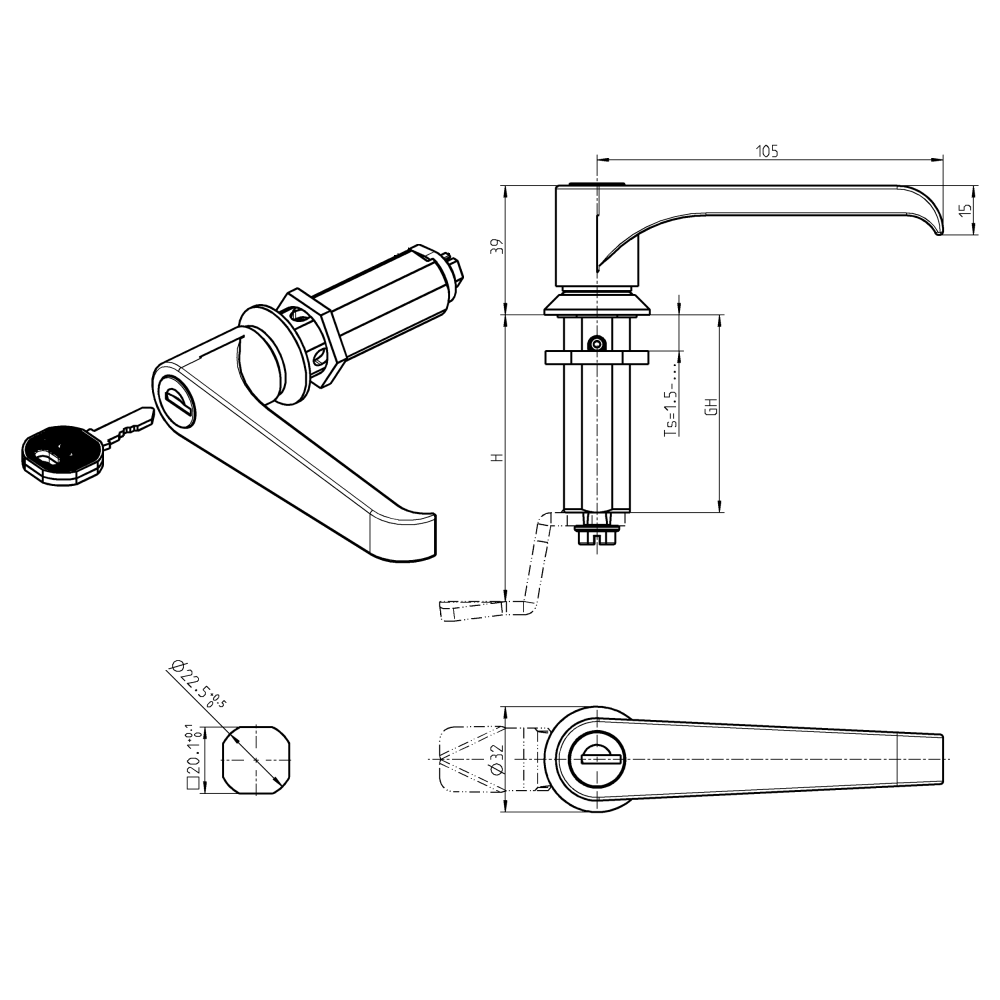

Housing with l-handle, keyed alike ek333, die-cast zinc, L=105mm, GH=60mm, plate thickness=1,5-50mm
MT101259
Housing with l-handle manufactured in die-cast zinc and with locking of the type keyed alike ek333. The length is 105 mm, the housing height is 60 mm and the plate thickness for mounting is 1,5 mm to 50 mm. Including one key. Surface treatment of the nut is: Electro zinc plated. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
Locking
Keyed alike EK333
Material type
Die-cast zinc
Mounting type
Nut
Nut material
Steel
Surface finish
Black powder coated
Sealing
Flat
Type
L-handle
IP Code
IP65
Diameter in mm
32
Length i mm
105
Housing height in mm - GH
60
Plate thickness, min.
1.5
Plate thickness, max.
50
Long description
Housing with l-handle manufactured in die-cast zinc and with locking of the type keyed alike ek333. The length is 105 mm, the housing height is 60 mm and the plate thickness for mounting is 1,5 mm to 50 mm. Including one key. Surface treatment of the nut is: Electro zinc plated. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
