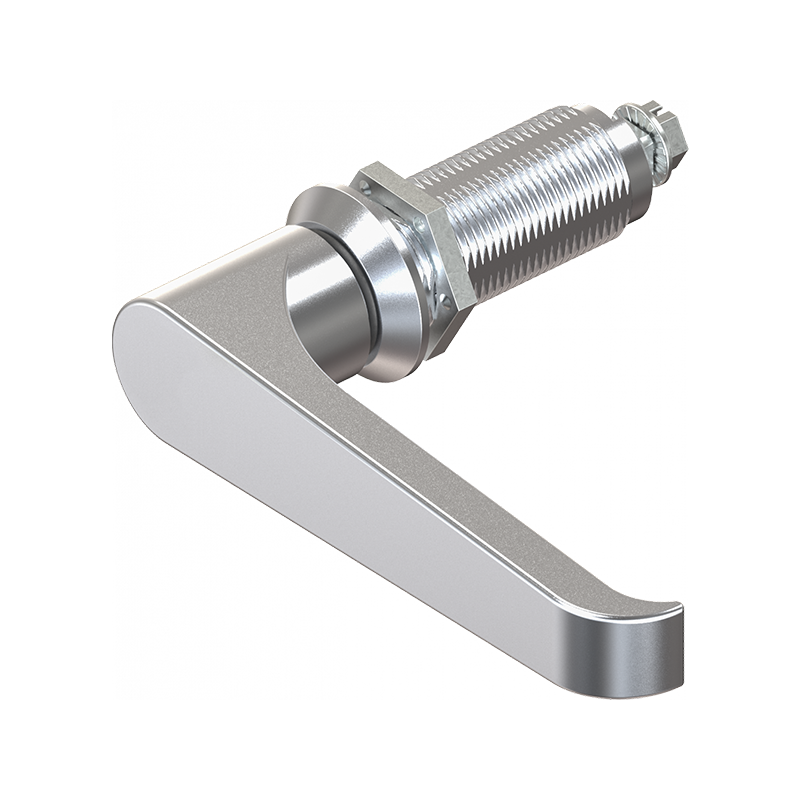

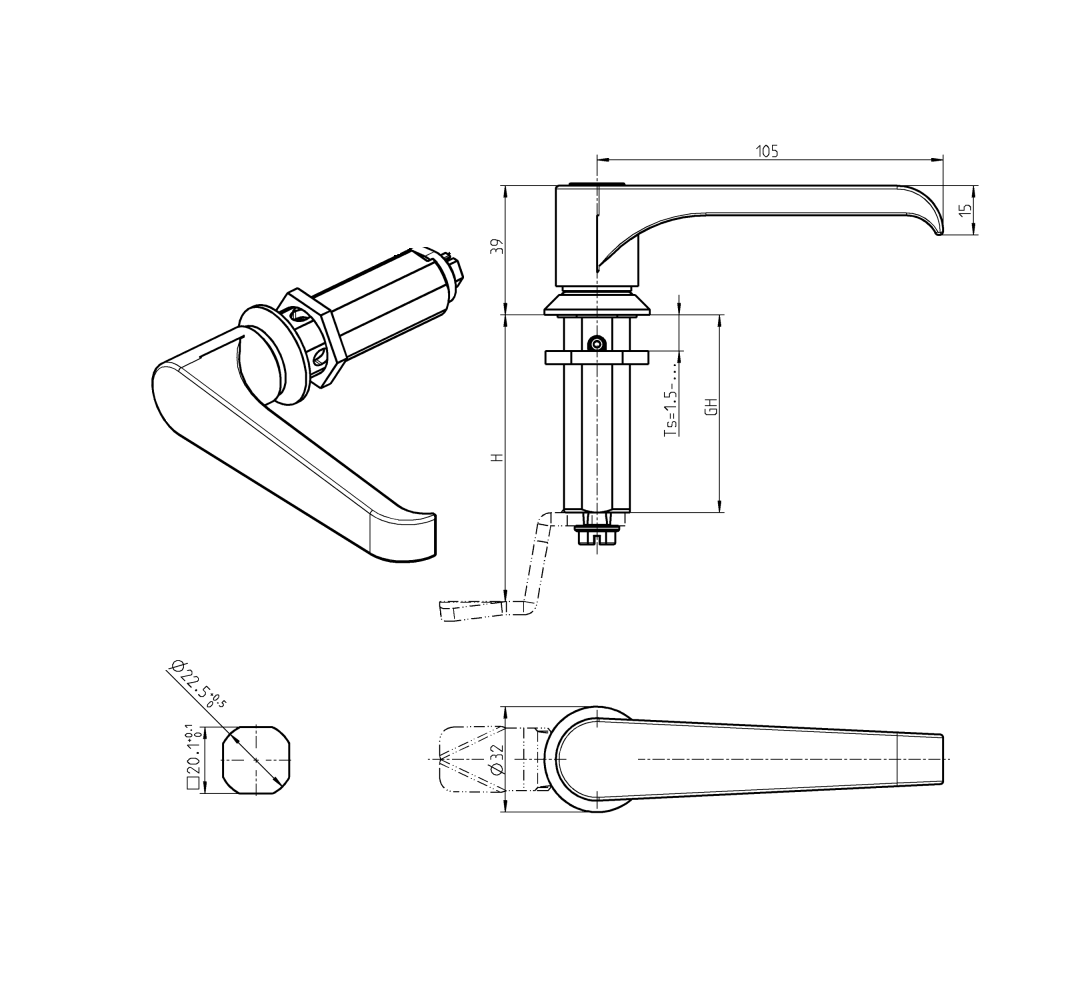

Housing with l-handle, non locking, die-cast zinc, L=105mm, GH=50mm, plate thickness=1,5-40mm
MT100744
Housing with l-handle manufactured in die-cast zinc and with locking of the type non locking. The length is 105 mm, the housing height is 50 mm and the plate thickness for mounting is 1,5 mm to 40 mm. Surface treatment of the earthnut is: Electro zinc plated. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
Locking
Non locking
Material type
Die-cast zinc
Mounting type
Earthnut
Nut material
Steel
Surface finish
Chrome plated
Sealing
Flat
Type
L-handle
IP Code
IP65
Diameter in mm
32
Length i mm
105
Housing height in mm - GH
50
Plate thickness, min.
1.5
Plate thickness, max.
40
Long description
Housing with l-handle manufactured in die-cast zinc and with locking of the type non locking. The length is 105 mm, the housing height is 50 mm and the plate thickness for mounting is 1,5 mm to 40 mm. Surface treatment of the earthnut is: Electro zinc plated. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
