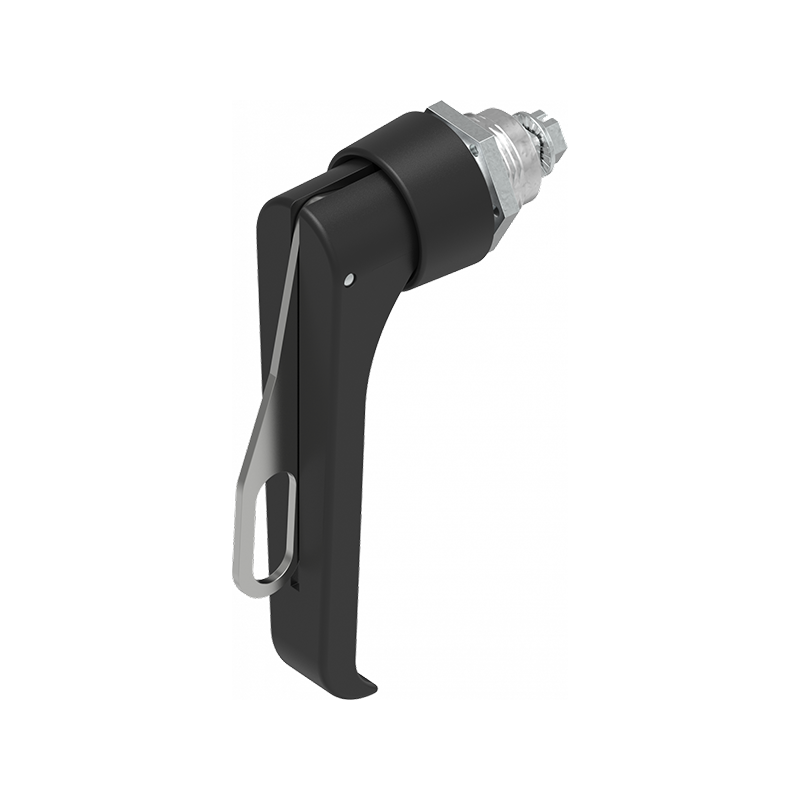

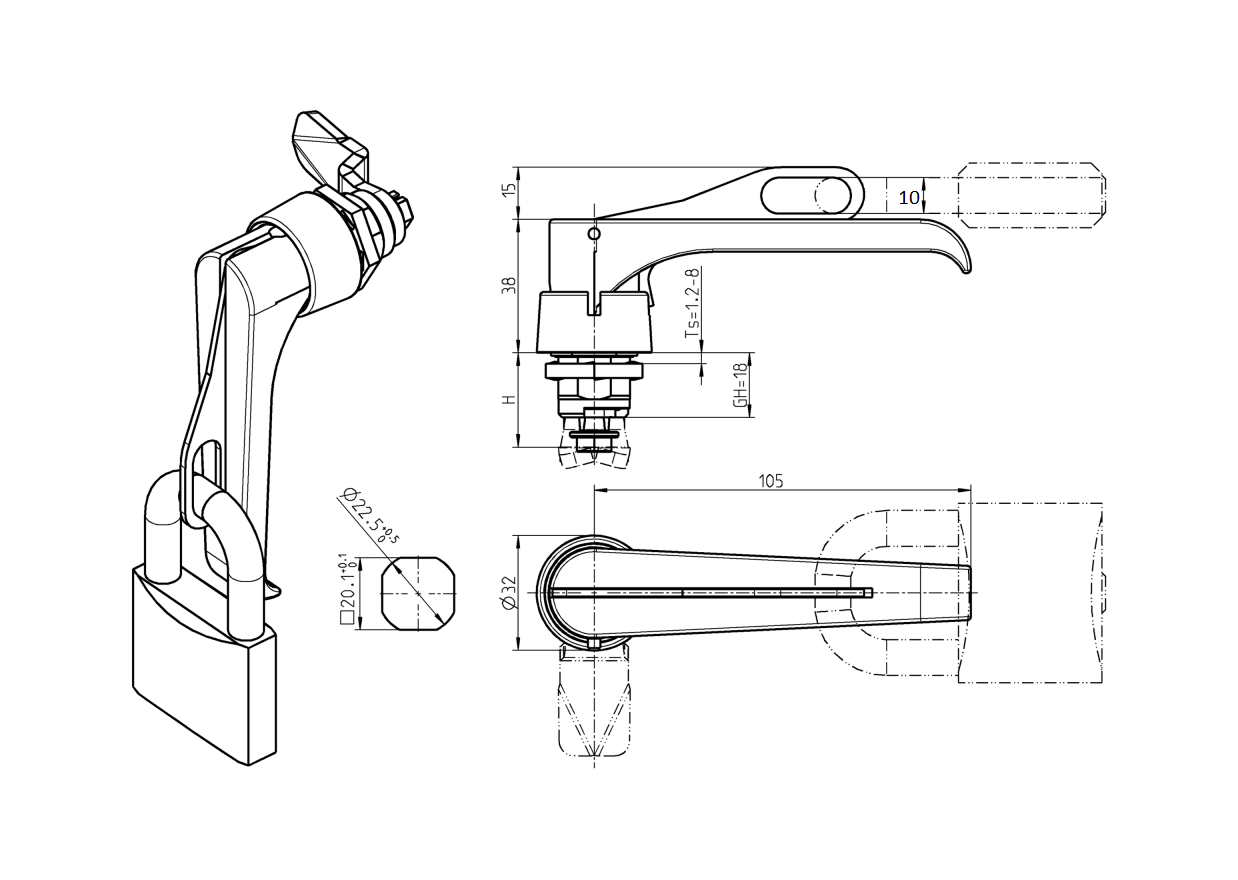

Housing with l-handle, padlock, die-cast zinc, L=105mm, GH=18mm, plate thickness=1,2-8mm
MT101060
Housing with l-handle manufactured in die-cast zinc and with locking of the type padlock. The length is 105 mm, the housing height is 18 mm and the plate thickness for mounting is 1,2 mm to 8 mm. Surface treatment of the earthnut is: Electro zinc plated. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
Locking
Padlock
Material type
Die-cast zinc
Mounting type
Earthnut
Nut material
Steel
Surface finish
Black powder coated
Sealing
Flat
Type
L-handle
IP Code
IP65
Diameter in mm
32
Length in mm
105
Housing height in mm - GH
18
Plate thickness min.
1.2
Plate thickness max.
8
Long description
Housing with l-handle manufactured in die-cast zinc and with locking of the type padlock. The length is 105 mm, the housing height is 18 mm and the plate thickness for mounting is 1,2 mm to 8 mm. Surface treatment of the earthnut is: Electro zinc plated. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
