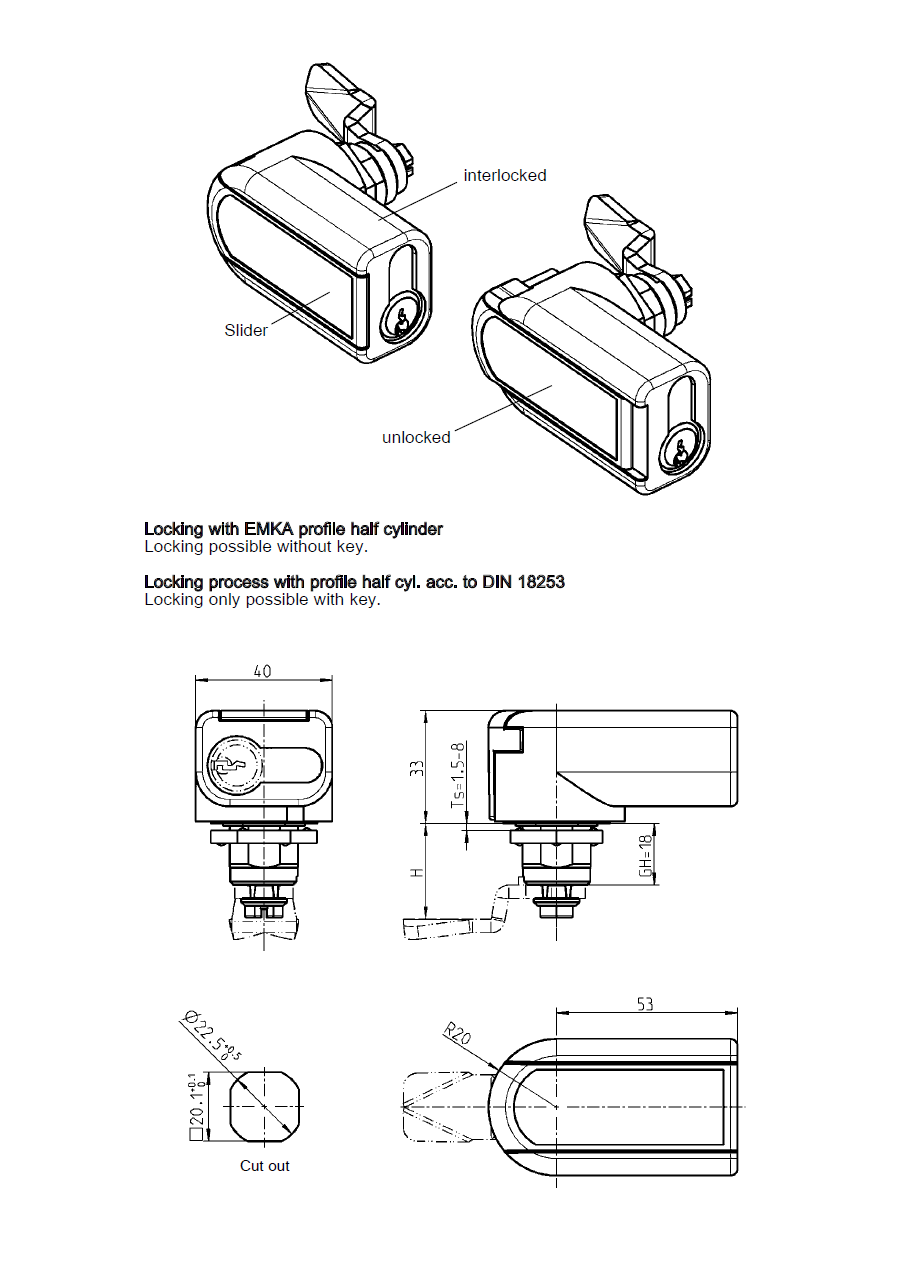

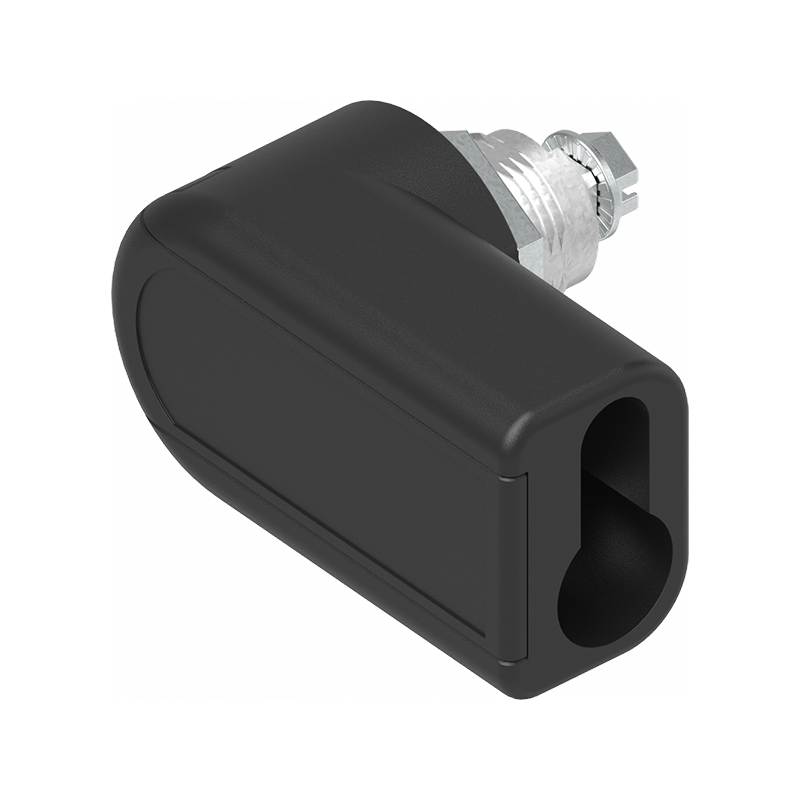

Housing with l-handle, profile half cylinder, die-cast zinc, L=53mm, GH=18mm, plate thickness=1,5-8mm
MT101407
Housing with l-handle manufactured in die-cast zinc and with locking of the type profile half cylinder. The product fulfill the IP Code ip65. The length is 53 mm, the housing height is 18 mm and the plate thickness for mounting is 1,5 mm til 8 mm. Surface treatment of the earthnut is: Electro zinc plated. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
Locking
Profile half cylinder
Knob material
Glass fiber reinforced polyamide
Material type
Die-cast zinc
Mounting type
Earthnut
Nut material
Steel
Sealing
Flat
Type
L-handle
IP Code
IP65
Diameter in mm
40
Length i mm
53
Housing height in mm - GH
18
Plate thickness, min.
1.5
Plate thickness, max.
8
Long description
Housing with l-handle manufactured in die-cast zinc and with locking of the type profile half cylinder. The product fulfill the IP Code ip65. The length is 53 mm, the housing height is 18 mm and the plate thickness for mounting is 1,5 mm til 8 mm. Surface treatment of the earthnut is: Electro zinc plated. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
