Housing with L-handle, safety wing handle, die-cast zinc, L=117,5mm, GH=18mm, plate thickness=1,5-8mm
MT100726

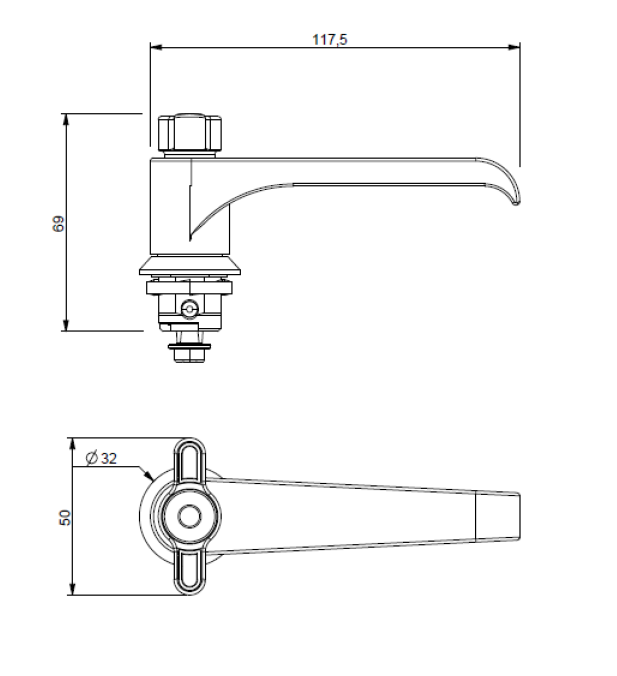

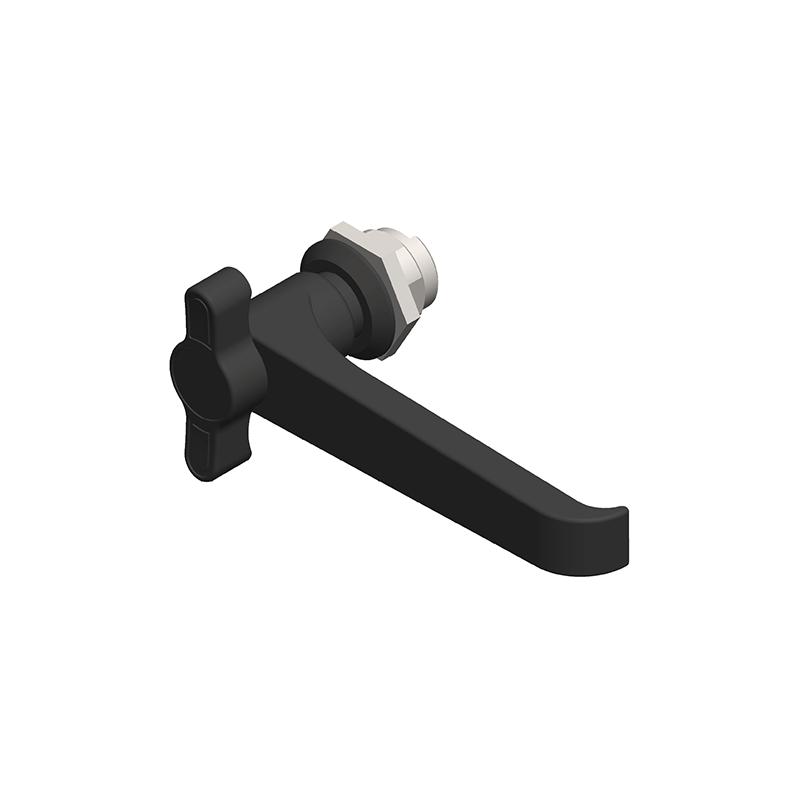

Housing with L-handle manufactured in die-cast zinc and with locking of the type safety wing handle. The length is 117,5 mm, the housing height is 18 mm and the plate thickness for mounting is 1,5 mm to 8 mm. Surface treatment of the earthnut is: untreated. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
Locking
Safety wing handle
Material type
Die-cast zinc
Mounting type
Earthnut
Nut material
Die-cast zinc
Surface finish
Black powder coated
Sealing
Flat
Type
L-handle
Diameter in mm
32
Height in mm
0
Length i mm
117.5
Housing height in mm - GH
18
Plate thickness, min.
1.5
Plate thickness, max.
8
Long description
Housing with L-handle manufactured in die-cast zinc and with locking of the type safety wing handle. The length is 117,5 mm, the housing height is 18 mm and the plate thickness for mounting is 1,5 mm to 8 mm. Surface treatment of the earthnut is: untreated. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
