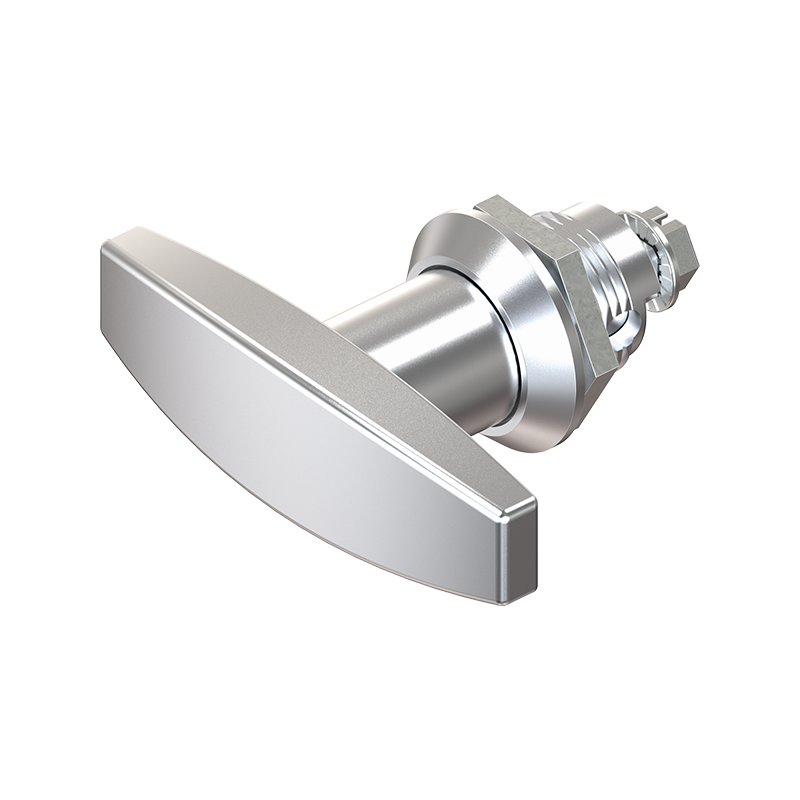

Housing with T-handle, non locking, die-cast zinc, L=78mm, GH=18mm, plate thickness=1,5-8mm
MT101429

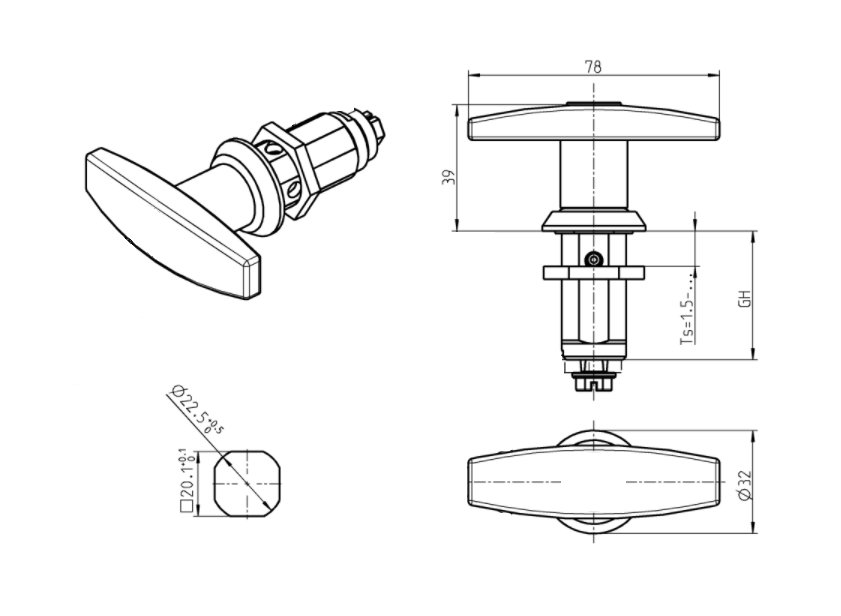

Housing with T-handle manufactured in die-cast zinc and with locking of the type non locking. The product fulfill the IP Code ip65. The length is 78 mm, the housing height is 18 mm and the plate thickness for mounting is 1,5 mm to 8 mm. Surface treatment of the nut is: Electro zinc plated. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
Locking
Non locking
Material type
Die-cast zinc
Mounting type
Nut
Nut material
Steel
Surface finish
Chrome plated
Sealing
Flat
Type
T-handle
IP Code
IP65
Diameter in mm
32
Height in mm
0
Length in mm
78
Housing height in mm - GH
18
Plate thickness min.
1.5
Plate thickness max.
8
Long description
Housing with T-handle manufactured in die-cast zinc and with locking of the type non locking. The product fulfill the IP Code ip65. The length is 78 mm, the housing height is 18 mm and the plate thickness for mounting is 1,5 mm to 8 mm. Surface treatment of the nut is: Electro zinc plated. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
