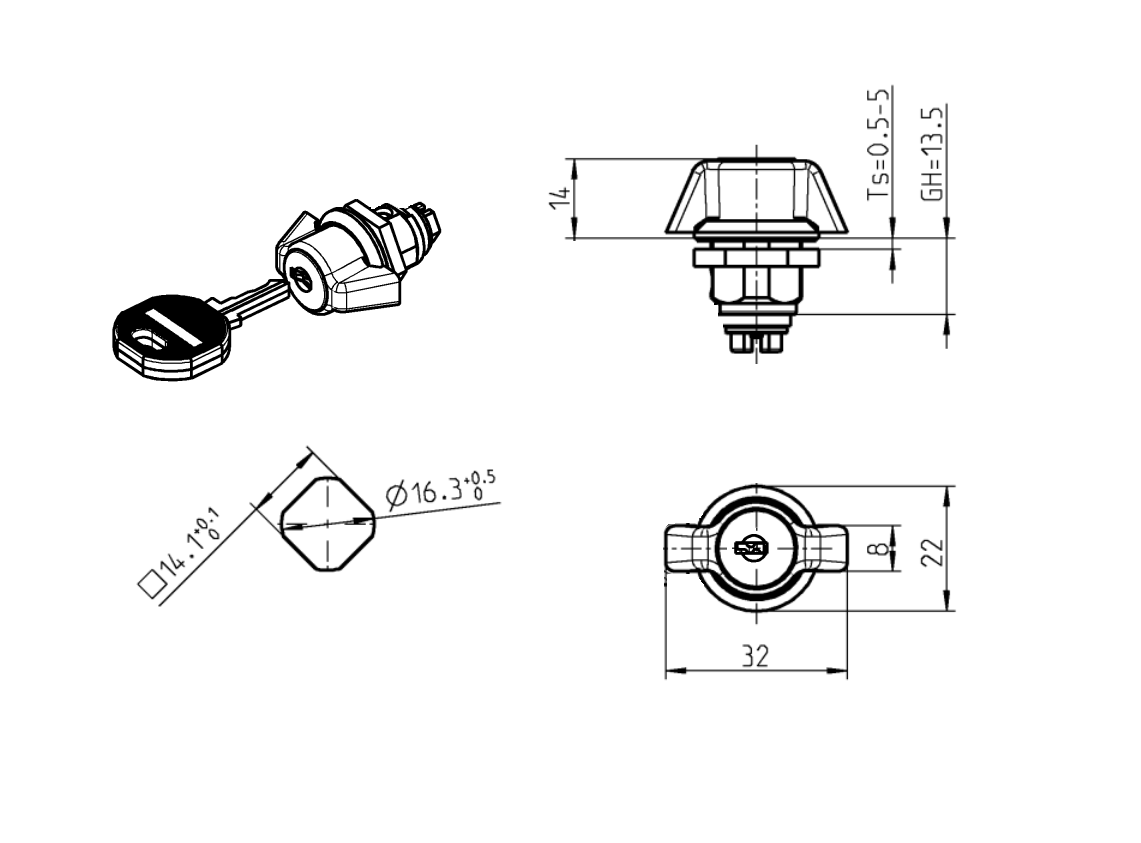

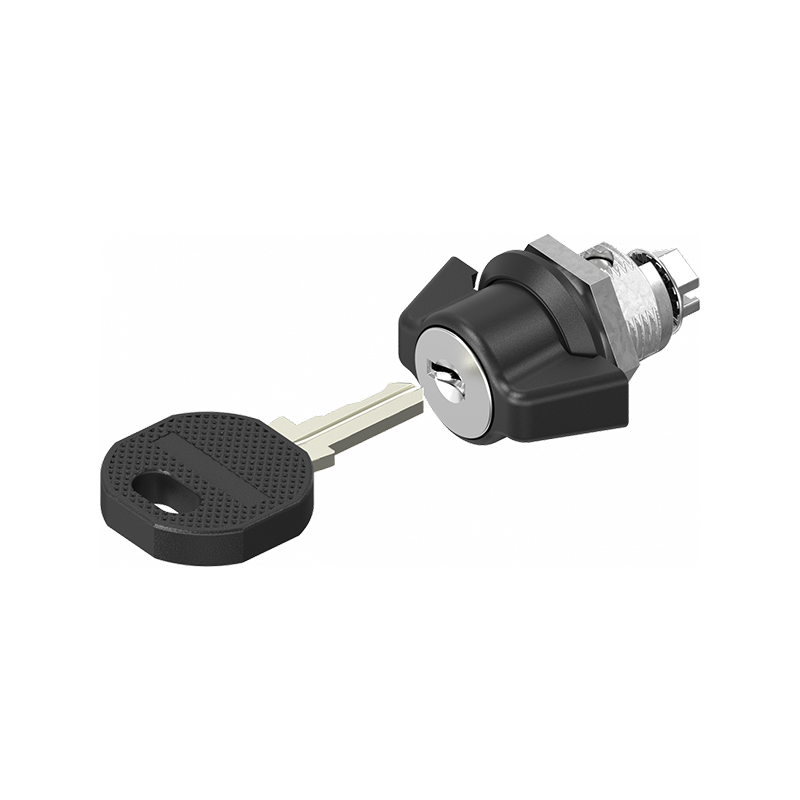

Housing with wing handle, keyed alike ek2233x, die-cast zinc, L=32mm, GH=13,5mm, plate thickness=0,5-5mm
MT101909
Housing with wing handle manufactured in die-cast zinc and with locking of the type keyed alike ek2233x. The length is 32 mm, the housing height is 13,5 mm and the plate thickness for mounting is 0,5 mm to 5 mm. Including one key. Surface treatment of the nut is: Electro zinc plated. Only suitable to use with components from 1022 series. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
Locking
Keyed alike EK2233X
Material type
Die-cast zinc
Mounting type
Nut
Nut material
Steel
Surface finish
Black powder coated
Series
1022
Type
Wing handle
Diameter in mm
22
Length i mm
32
Housing height in mm - GH
13.5
Plate thickness, min.
0.5
Plate thickness, max.
5
Long description
Housing with wing handle manufactured in die-cast zinc and with locking of the type keyed alike ek2233x. The length is 32 mm, the housing height is 13,5 mm and the plate thickness for mounting is 0,5 mm to 5 mm. Including one key. Surface treatment of the nut is: Electro zinc plated. Only suitable to use with components from 1022 series. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
