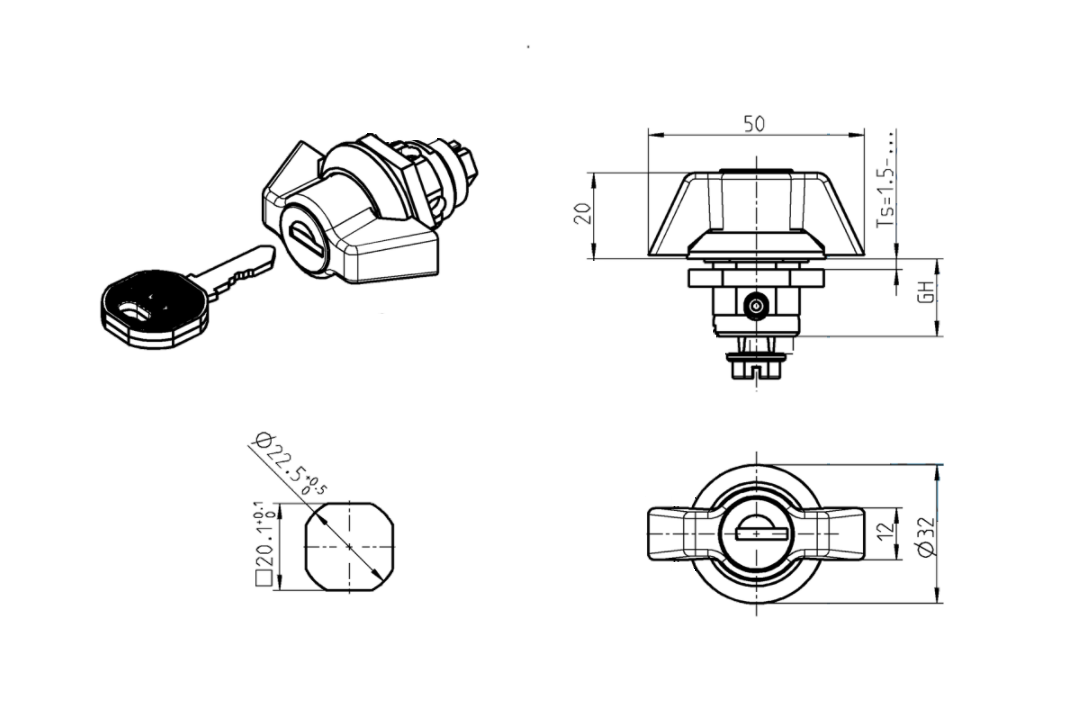

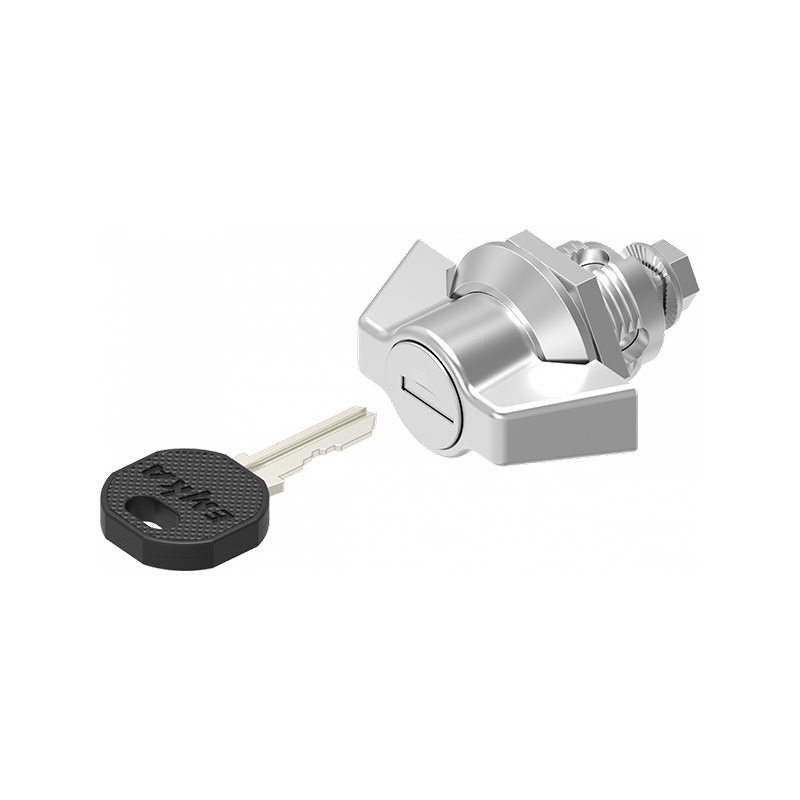

Housing with wing handle, keyed alike ek333, acid proof stainless steel, L=50mm, GH=18mm, plate thickness=1,5-8mm
MT100801
Housing with wing handle manufactured in acid proof stainless steel and with locking of the type keyed alike ek333. The length is 50 mm, the housing height is 18 mm and the plate thickness for mounting is 1,5 mm to 8 mm. Including one key. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
Locking
Keyed alike EK333
Material
AISI 316
Material type
Acid proof Stainless Steel
Mounting type
Nut
Nut material
Stainless steel
Sealing
Flat
Type
Wing handle
IP Code
IP65
Diameter in mm
32
Length in mm
50
Housing height in mm - GH
18
Plate thickness min.
1.5
Plate thickness max.
8
Long description
Housing with wing handle manufactured in acid proof stainless steel and with locking of the type keyed alike ek333. The length is 50 mm, the housing height is 18 mm and the plate thickness for mounting is 1,5 mm to 8 mm. Including one key. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
