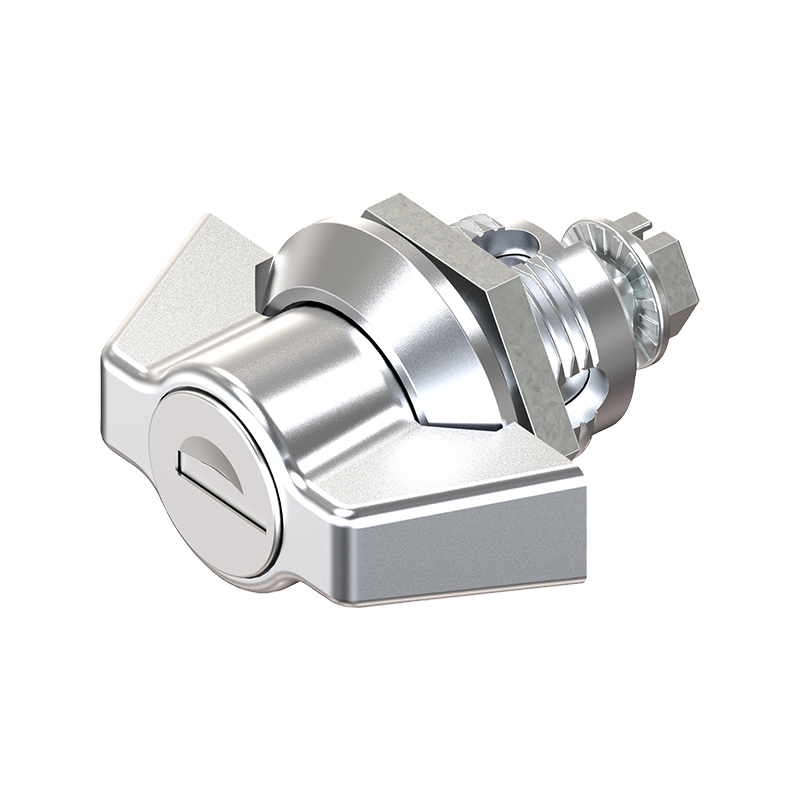

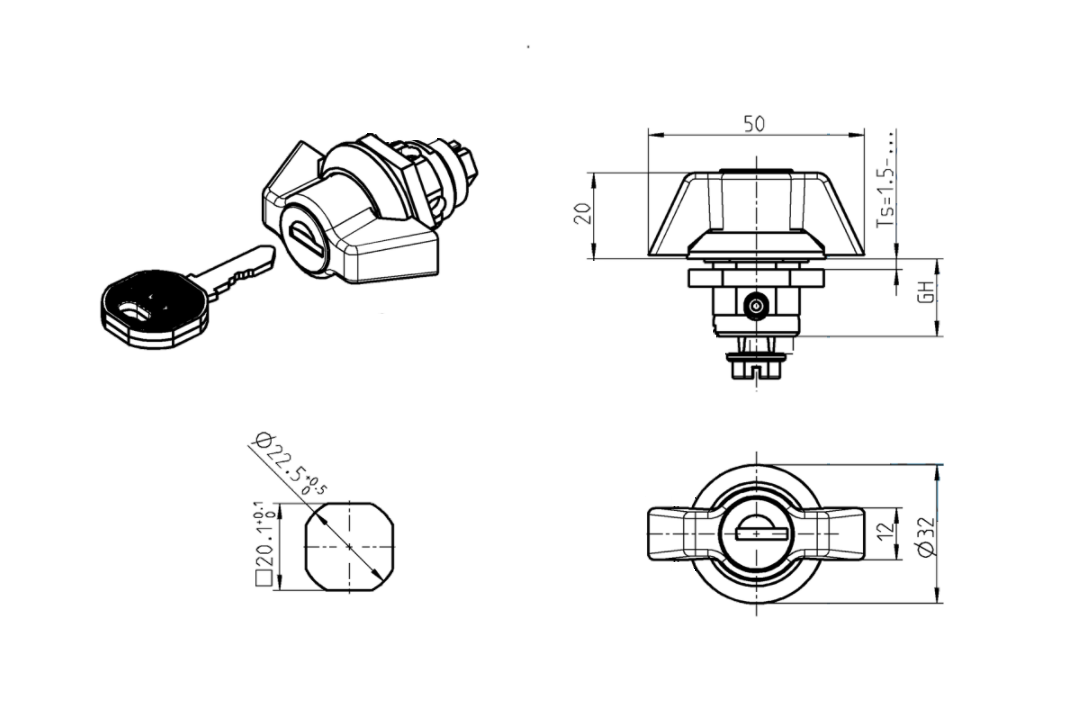

Housing with wing handle, keyed alike ek333, die-cast zinc, L=50mm, GH=18mm, plate thickness=1,5-8mm
MT100800
Housing with wing handle manufactured in die-cast zinc and with locking of the type keyed alike ek333. The length is 50 mm, the housing height is 18 mm and the plate thickness for mounting is 1,5 mm to 8 mm. Including one key. Surface treatment of the nut is: Electro zinc plated. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
Locking
Keyed alike EK333
Material type
Die-cast zinc
Mounting type
Nut
Nut material
Steel
Surface finish
Chrome plated
Sealing
Flat
Type
Wing handle
IP Code
IP65
Diameter in mm
32
Length in mm
50
Housing height in mm - GH
18
Plate thickness min.
1.5
Plate thickness max.
8
Long description
Housing with wing handle manufactured in die-cast zinc and with locking of the type keyed alike ek333. The length is 50 mm, the housing height is 18 mm and the plate thickness for mounting is 1,5 mm to 8 mm. Including one key. Surface treatment of the nut is: Electro zinc plated. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
