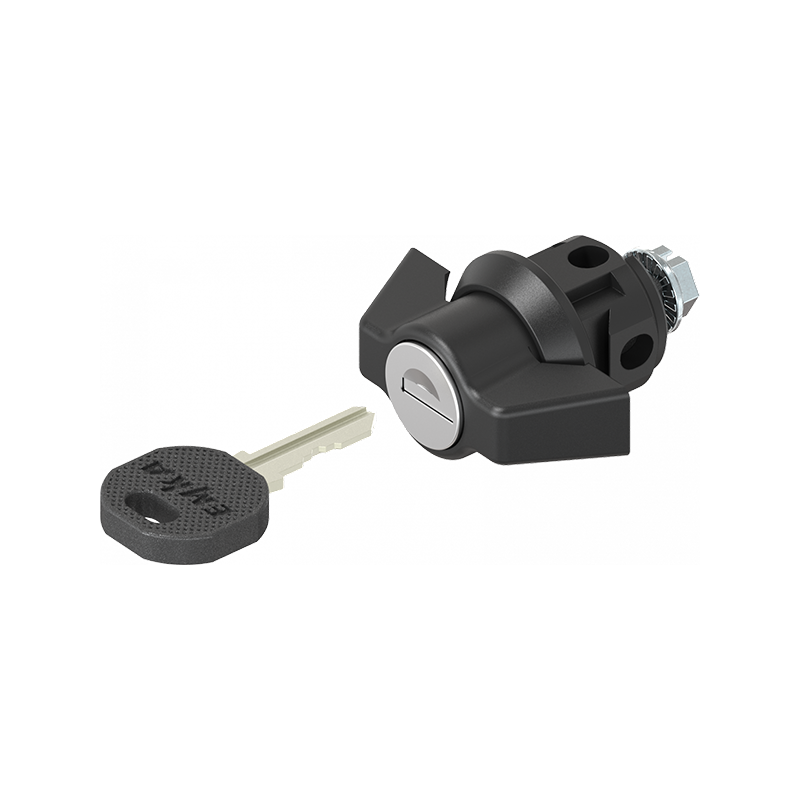

Housing with wing handle, keyed alike ek333, glass fiber reinforced polyamide, L=50mm, GH=18mm, plate thickness=1-2mm
MT104560
Housing with wing handle manufactured in glass fiber reinforced polyamide and with locking of the type keyed alike ek333. The length is 50 mm, the housing height is 18 mm and the plate thickness for mounting is 1 mm to 2 mm. Including one key. Order locking clips separately. The plate thickness depends on the locking clip. Ts= 1 - 1,5mm with locking clip 1500-05-10 and Ts= 1,5 - 2mm with locking clip 1500-05-15. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
Locking
Keyed alike EK333
Material type
Glass fiber reinforced polyamide
Mounting type
Sealing
O-ring
Type
Wing handle
IP Code
IP65
Diameter in mm
30
Length in mm
50
Housing height in mm - GH
18
Plate thickness min.
1
Plate thickness max.
2
Long description
Housing with wing handle manufactured in glass fiber reinforced polyamide and with locking of the type keyed alike ek333. The length is 50 mm, the housing height is 18 mm and the plate thickness for mounting is 1 mm to 2 mm. Including one key. Order locking clips separately. The plate thickness depends on the locking clip. Ts= 1 - 1,5mm with locking clip 1500-05-10 and Ts= 1,5 - 2mm with locking clip 1500-05-15. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
