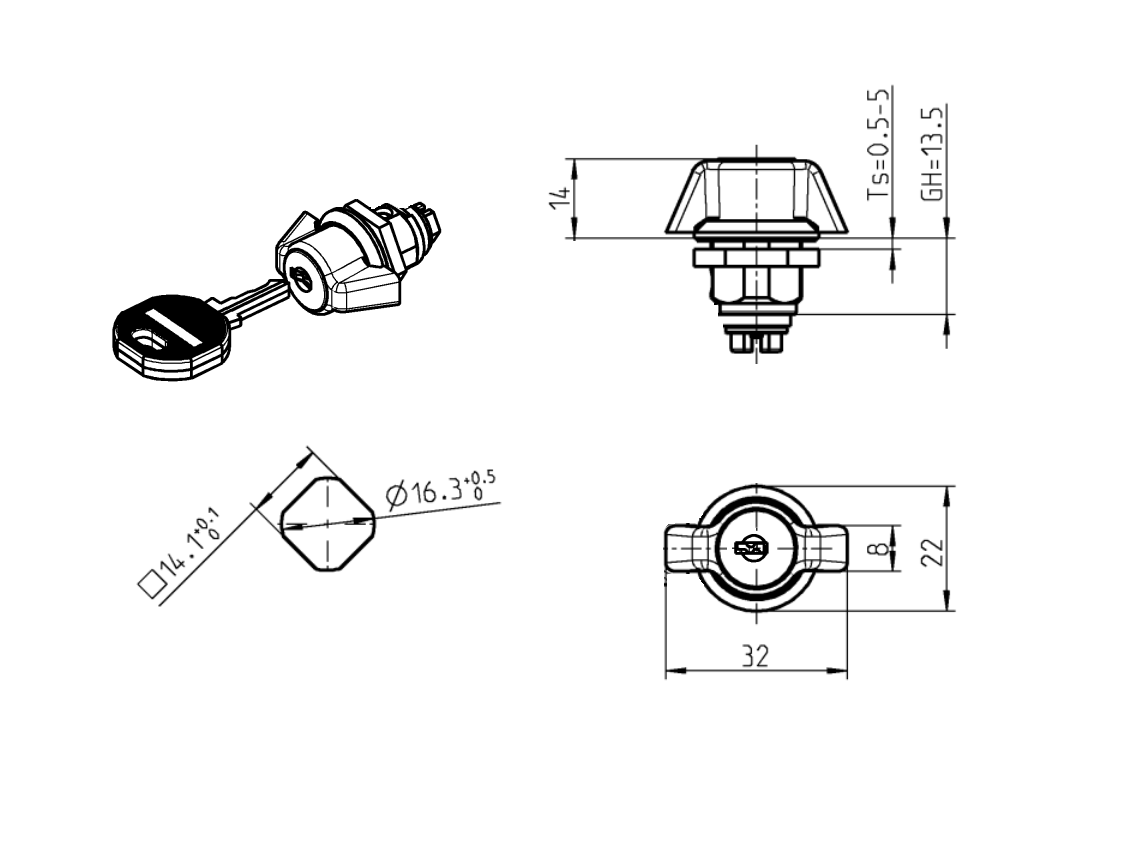

Housing with wing handle, keyed different, die-cast zinc, L=32mm, GH=13,5mm, plate thickness=0,5-5mm
MT101905

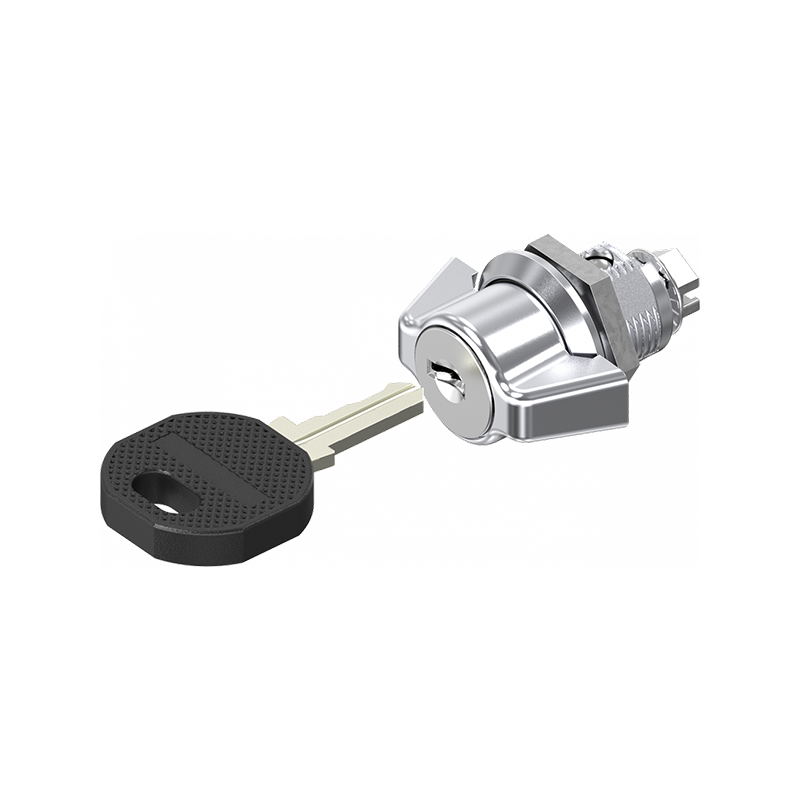

Housing with wing handle manufactured in die-cast zinc and with locking of the type keyed different. The length is 32 mm, the housing height is 13,5 mm and the plate thickness for mounting is 0,5 mm to 5 mm. Including one key. Surface treatment of the nut is: Electro zinc plated. Only suitable to use with components from 1022 series. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
Locking
Keyed different
Material type
Die-cast zinc
Mounting type
Nut
Nut material
Steel
Surface finish
Chrome plated
Series
1022
Type
Wing handle
Diameter in mm
22
Length in mm
32
Housing height in mm - GH
13.5
Plate thickness min.
0.5
Plate thickness max.
5
Long description
Housing with wing handle manufactured in die-cast zinc and with locking of the type keyed different. The length is 32 mm, the housing height is 13,5 mm and the plate thickness for mounting is 0,5 mm to 5 mm. Including one key. Surface treatment of the nut is: Electro zinc plated. Only suitable to use with components from 1022 series. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
